10

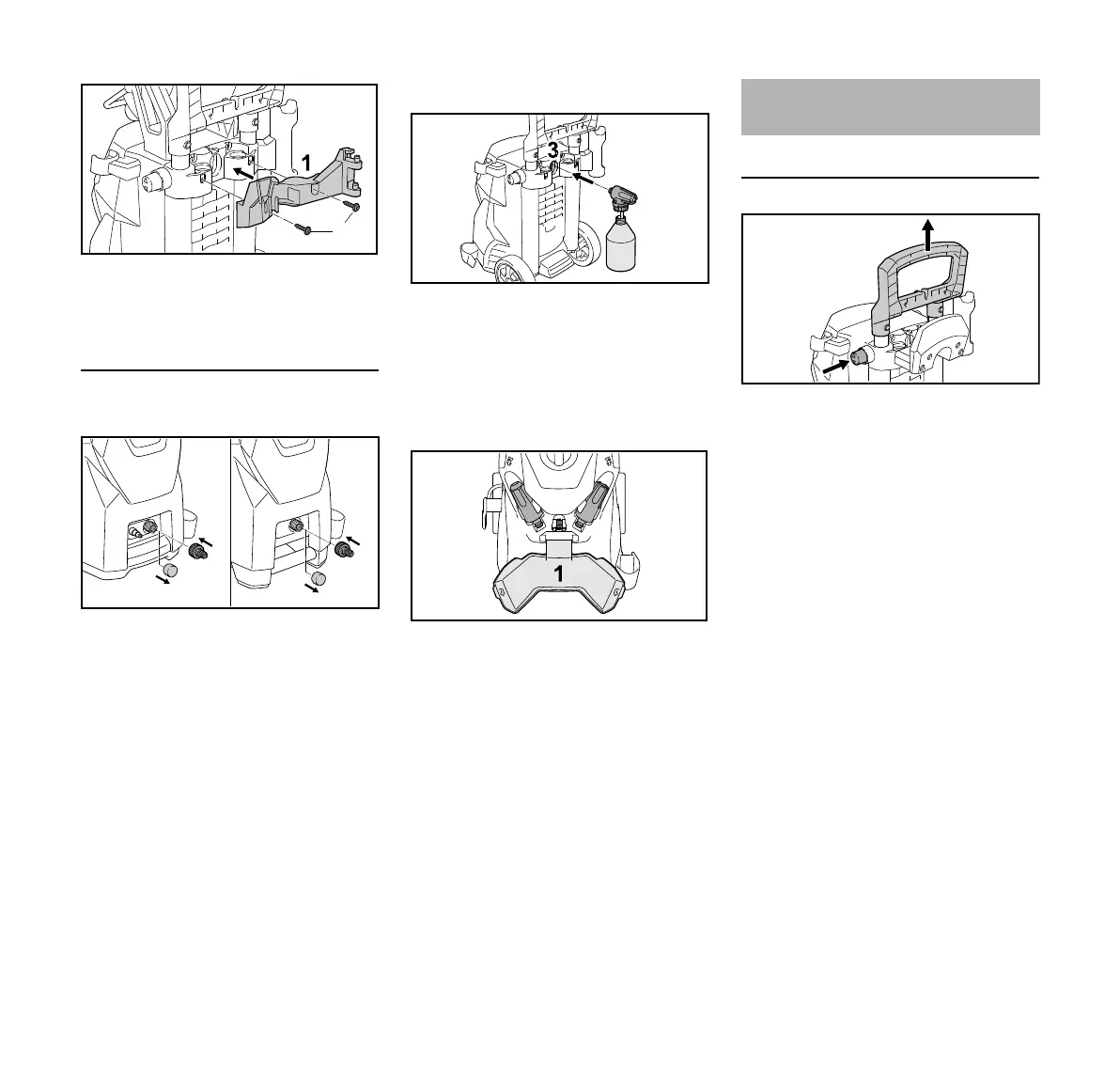

N Fasten the holder (1) for the flat
hose cassette with the included
screws (2)
All versions
Connector on water inlet
N Remove protective cap (1) to the
water inlet
N Attach the connector (2) and tighten
it by hand
Spray set
N Screw the nozzle (1) onto the
detergent container (2)
N Hook the spray set into the
support (3) on the adjuster
Storage compartment for fan-jet nozzle,
rotary nozzle and cleaning pin
N Open the flap (1) – the rotary
nozzle (2) and fan-jet nozzle (3) can
be stored in the holders
N Push the cleaning pin (4) into the
mount.
Height adjustable handle
N Press button (1) and pull handle (2)
upward as far as it will go
N Release button and pull/push on the
handle again until the telescopic
shafts engage
2013BA005 KN
2
1
2
2
1
2013BA006 KN
2013BA007 KN
2
1
2
3
4
2013BA008 KN
Transporting the Unit
1
2
2013BA009 KN

Stihl RE 109 Specifications

General

Operating Pressure	100 bar
Maximum Pressure	120 bar
Water Throughput	440 l/h
Maximum Water Supply Temperature	40 °C
Hose Length	7 m
Power Cable Length	5 m
Sound Power Level	85 dB(A)
