Stihl RE 109 User Manual

RE 109, RE 119, RE 129 PLUS
English
22

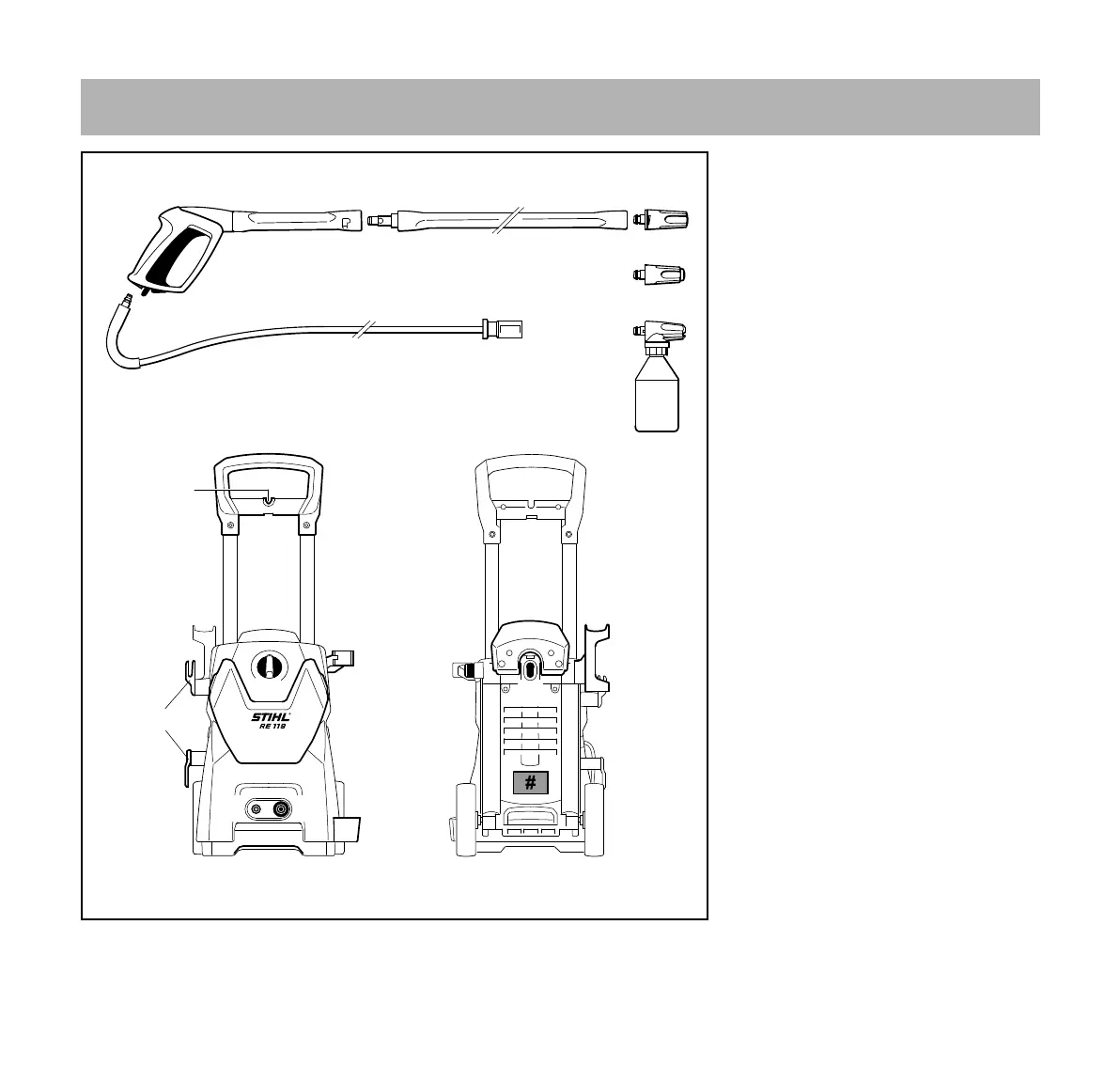

RE 109, 119
1 Spray gun
2 Lever
3 Safety catch
4 Trigger interlock
5 High-pressure hose
6 Spray lance
7 Fan jet nozzle, adjustable
8 Rotary nozzle
9 Spray set
10 Handle
11 Bracket for surface washing brush
12 Holder for spray attachment
13 Machine switch
14 Holders for power cord
15 Flap for storage compartment
16 High-pressure hose connection
17 Water attachment
18 Carrying handle
19 Button for height adjustment of
handle
20 Hose holder
21 Bracket for spray set
22 Spray gun holder
# Model plate
Main Parts
20
13
2013BA023 KN
9
8
7
-
+
2
3
4
1
6
5
17
22
10
11
14
12
19
12
18
16
21
15

Stihl RE 109 Specifications

General

Operating Pressure	100 bar
Maximum Pressure	120 bar
Water Throughput	440 l/h
Maximum Water Supply Temperature	40 °C
Hose Length	7 m
Power Cable Length	5 m
Sound Power Level	85 dB(A)
