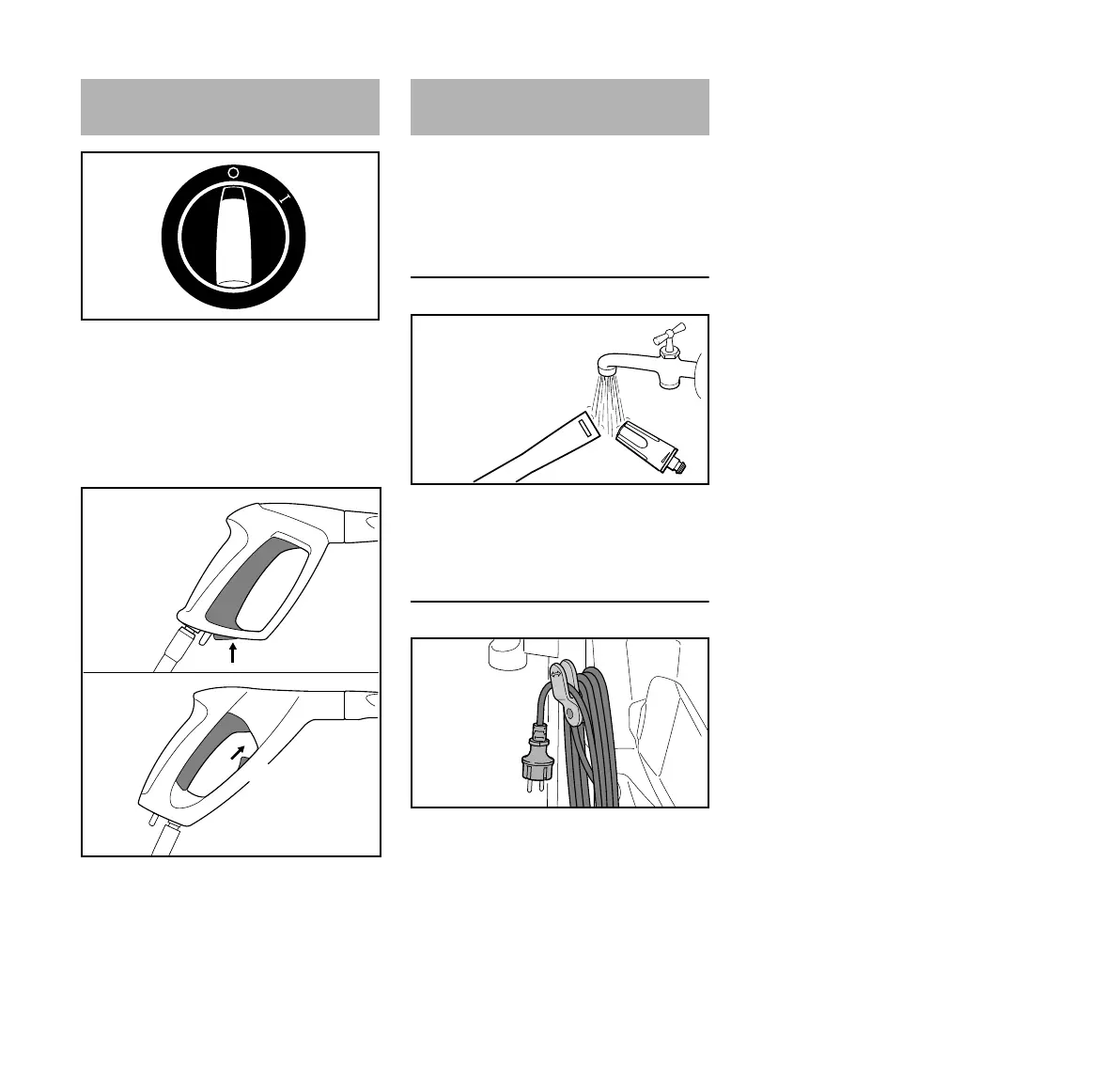

N Turn the master switch to 0 and turn
off the water supply
N Actuate the spray gun until water
only drips from the spray head (the
machine is now depressurized)
N Release trigger
N Unlock lever (1) with safety latch (2)
– this prevents inadvertent
operation
N Unplug the power plug from the
socket
N Disconnect hose from the water
supply and from the machine
Rinsing the nozzle
N Rinse the connection latches of the
spray lance and nozzle with water
so that no deposits form
Rolling up the power cord
N Roll up the power cord and hook
onto the holder (1)
Switching Off
1607BA018 KN
1
2
2
1
2013BA017 KN
RE 109
RE 119
RE 129 PLUS
After Finishing Work
666BA017 KN
-
+
2013BA019 KN
1

Stihl RE 109 Specifications

General

Operating Pressure	100 bar
Maximum Pressure	120 bar
Water Throughput	440 l/h
Maximum Water Supply Temperature	40 °C
Hose Length	7 m
Power Cable Length	5 m
Sound Power Level	85 dB(A)
