Stihl RE 109 User Manual

RE 109, RE 119, RE 129 PLUS
English
15

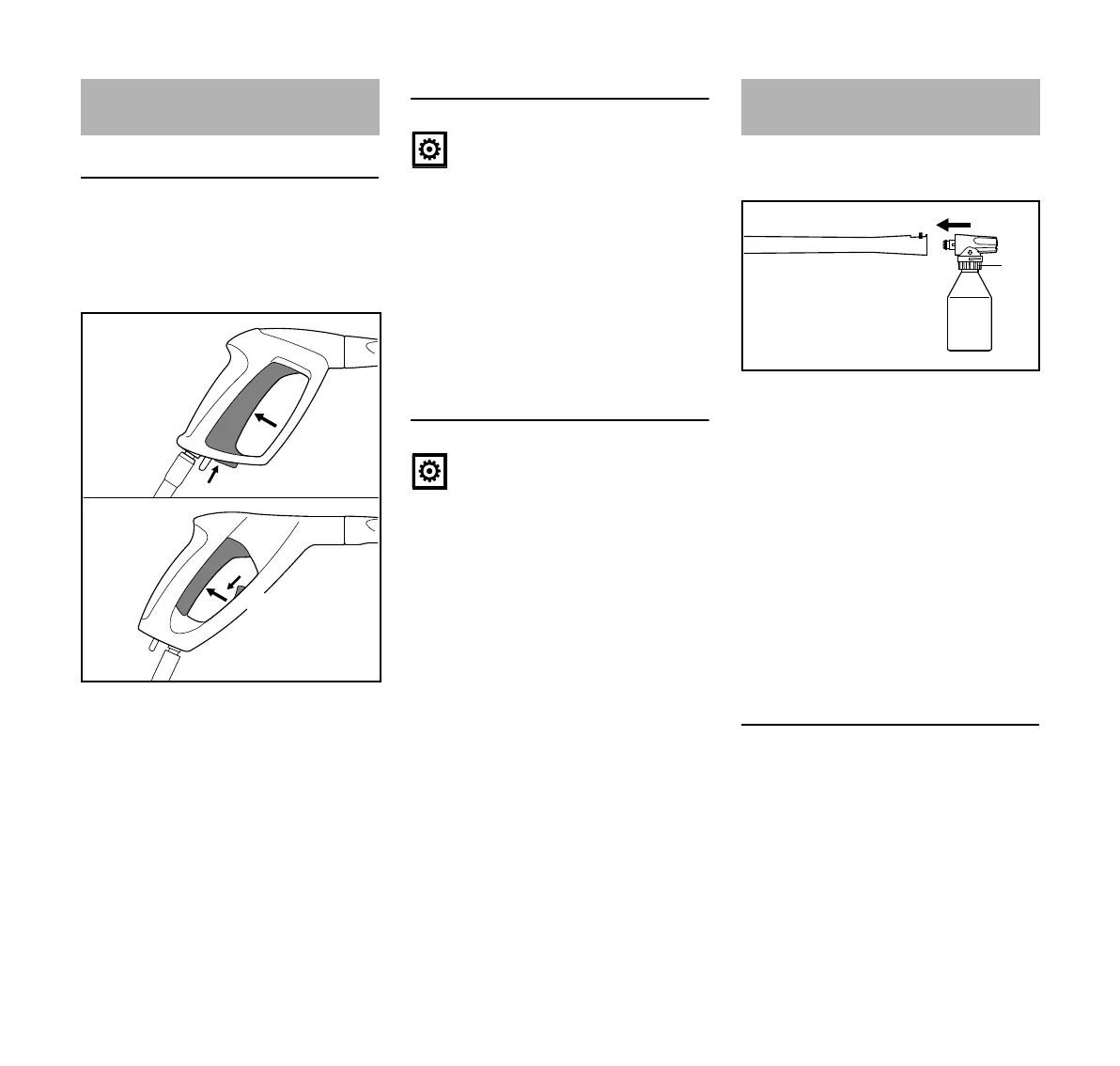

Actuating the spray gun
N Point the spray gun at the object to
be cleaned – never at persons!
N Point the rotary nozzle downwards
when starting (if fitted)
N Unlock lever (1) with safety latch (2)
N Squeeze the lever (1)
The engine starts automatically and
stops again as soon as the lever (1) is
released. The machine is then in
standby mode.
Standby mode
NOTICE
The machine must not be operated in
standby mode for more than 5 minutes.
Switch off the machine at the master
switch,
– if work is interrupted for more than
5min,
– during breaks,
– if the machine is left unattended.
High-pressure hose
NOTICE
Do not buckle or loop the high-pressure
hose.
Do not place any heavy objects on the
high-pressure hose, and do not drive
any vehicles over it.
N Remove nozzle from spray lance –
see "Fitting, removing spray lance"
N Fill the container (1) with detergent
diluted as directed (approx.
0.5 liters).
N Seal the container (1) and
nozzle (2)
N Engage the container with nozzle
into the mount of the spray
lance (3). The nozzle has an anti-
twist device, orient this according to
the groove on the spray lance
RE 119 and RE 129 Plus only:
N Use the adjusting ring (4) to set the
quantity of detergent to be added
After finishing work
N Empty the container (1) and rinse it
out
N Fill the container (1) with clean
water
N Seal the container (1) and
nozzle (2) and mount on the spray
lance (3)
N Actuate the spray gun and flush out
the residual detergent
Working
1
2
2
1
2013BA016 KN
RE 109
RE 119
RE 129 PLUS
Adding detergent
3
2
2013BA029 KN
1
4

Stihl RE 109 Specifications

General

Operating Pressure	100 bar
Maximum Pressure	120 bar
Water Throughput	440 l/h
Maximum Water Supply Temperature	40 °C
Hose Length	7 m
Power Cable Length	5 m
Sound Power Level	85 dB(A)
