RE 109, RE 119, RE 129 PLUS
English
23

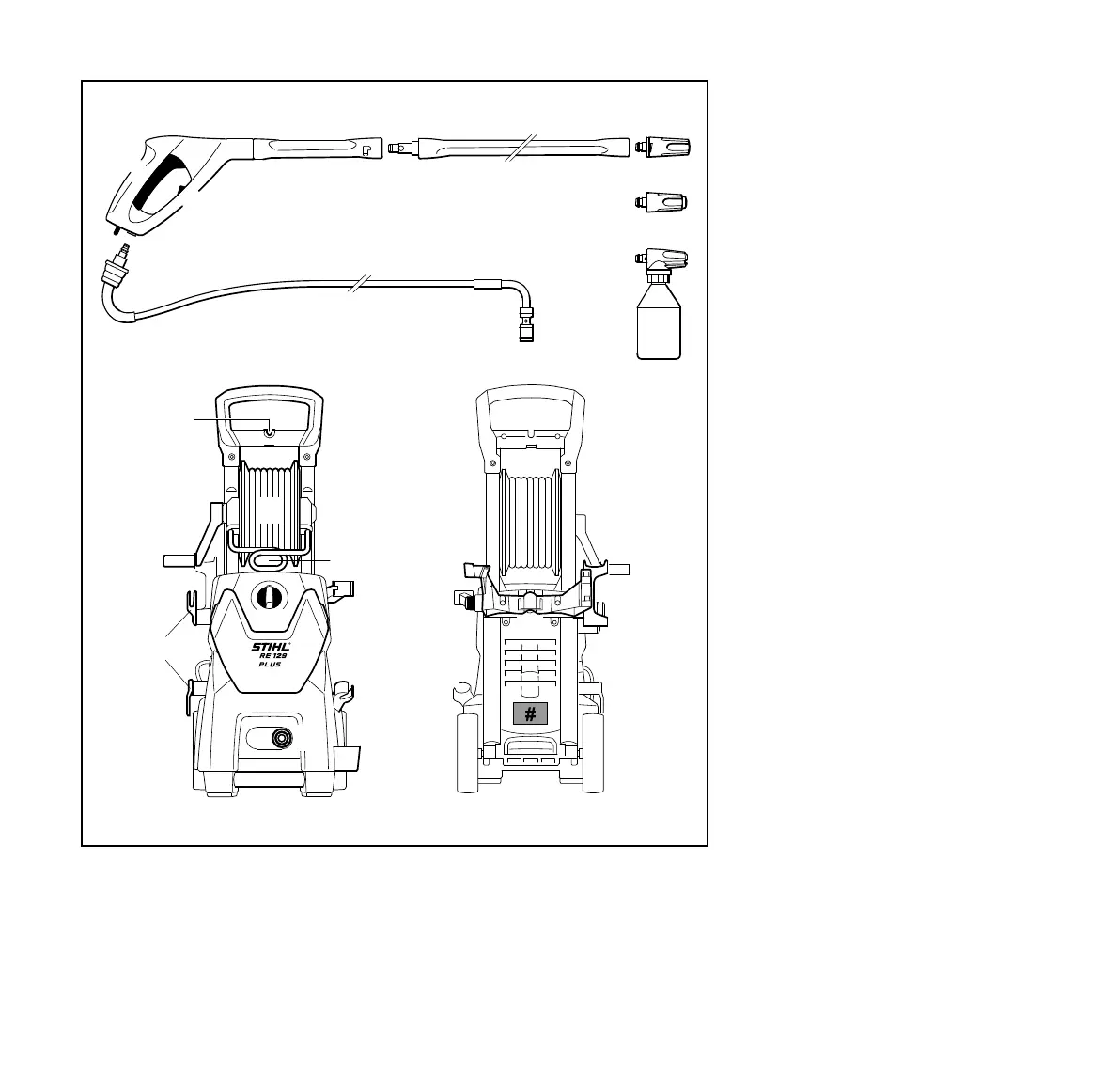

RE 129 PLUS
1 Spray gun
2 Lever
3 Safety catch
4 Trigger interlock
5 High-pressure hose
6 Spray lance
7 Fan jet nozzle, adjustable
8 Rotary nozzle
9 Spray set
10 Handle
11 Bracket for surface washing brush
or spray set
12 Crank for hose reel
13 Hose reel
14 Guide clip
15 Holder for spray attachment
16 Machine switch
17 Holders for power cord
18 Flap for storage compartment
19 Holder for surface washing brush
20 Water attachment
21 Carrying handle
22 Button for height adjustment of
handle
23 Holder for flat hose cassette
24 Spray gun holder
# Model plate
16
24
2
4
1
3
6
7
8
-
+
9
2013BA024 KN
10
11
12
13
18
17
15
22
15
21
14
5
20
19
23

Stihl RE 109 Specifications

General

Operating Pressure	100 bar
Maximum Pressure	120 bar
Water Throughput	440 l/h
Maximum Water Supply Temperature	40 °C
Hose Length	7 m
Power Cable Length	5 m
Sound Power Level	85 dB(A)
