6 Preparing the pressure washer for operation
Angled spray lance and angled nozzle
WARNING
￭ An angled spray lance and the angled nozzle increase the
lateral reaction forces. The user may lose control of the
spraying system due to the reaction forces that occur. The
user may be seriously injured and property damage may
occur.
► Only attaching a jet pipe extension
► Hold the spray gun with both hands.
► Work as described in this manual.
6.1 Making the pressure washer ready for use
The following steps must be carried out every time before
starting work:
► @ 4.6
► Clean the pressure washer,@ 15.1.
► If a water filter is used: Check water filter for dirt and clean
if dirty,@ 15.4.
► Set up the pressure washer on a firm and level base,
where it will not slide or tip over.
► Unroll high-pressure hose from hose reel,@ 11.2.
► Connect spray gun, @ 7.3.1.
► Fit spray lance, @ 7.4.1.
► If a nozzle is used: Attach nozzle, @ 7.5.1.
► If a detergent is used: Working with detergent and
detergent container, @ 11.6.3.
► If using an accessory: Fit accessory, @ 5.1.
► Connect water supply,@ 8.1.
► Connect pressure washer to power supply, @ 9.1.
► If it is not possible to carry out these steps: Do not use the
pressure washer and consult a STIHL servicing dealer.

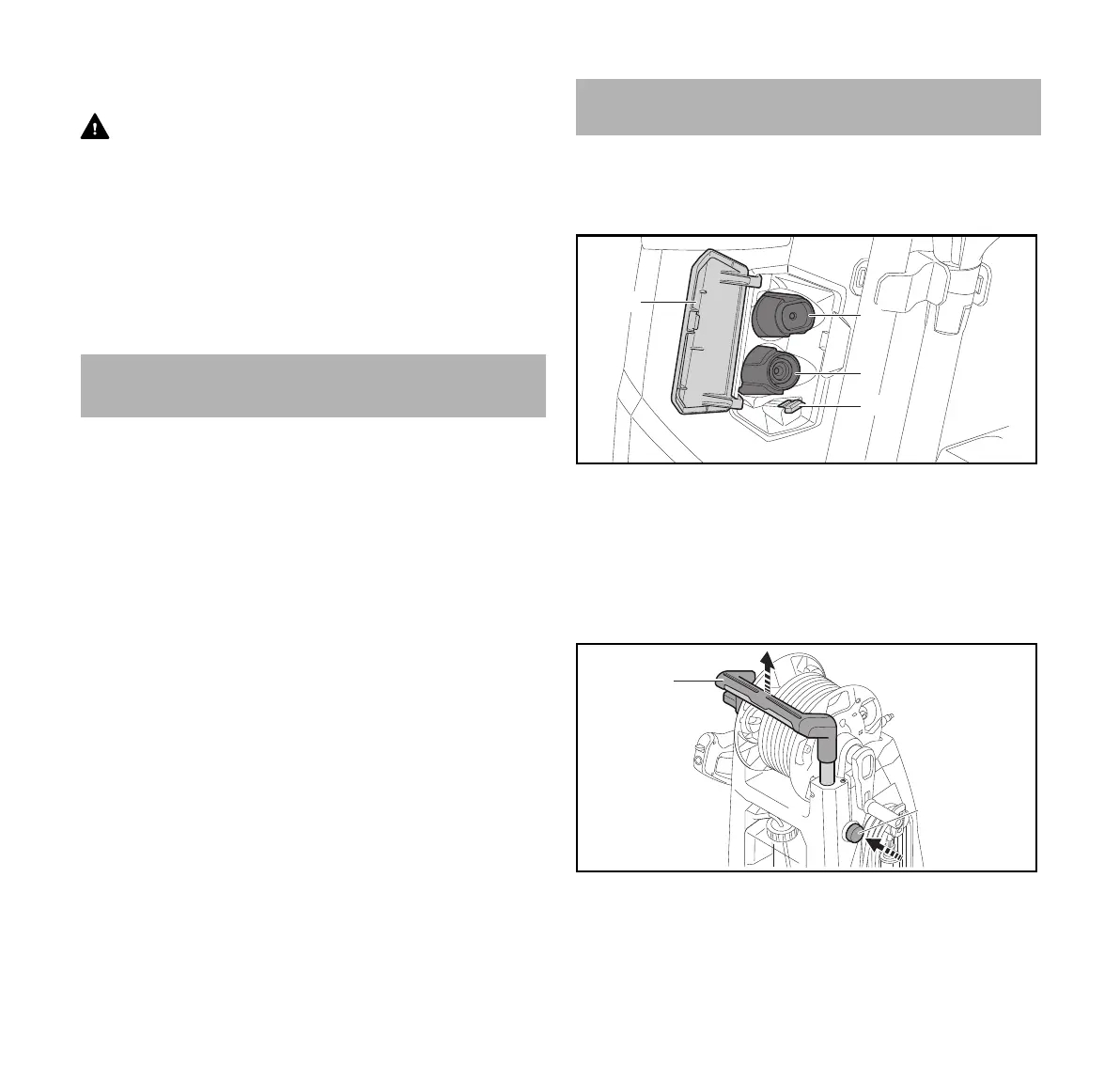

7.1 Assembling the pressure washer
Insert nozzles and cleaning pin
► Open flap (1).
► Insert fan-jet nozzle (2) and rotary nozzle (3).
► Insert cleaning pin (4).
7.2 Pulling out and pushing in the handle
7.2.1 Removing handle
► Press trigger switch lockout (1) and pull out handle (2).
► Release trigger switch lockout (1) and pull out handle (2)
until it audibly engages.
6 Preparing the pressure washer for
operation
7 Assembling the pressure washer
1
3
2
4
0000-GXX-9166-A0
