Stihl RE 170 PLUS User Manual

0458-663-0121-A
22
English 11 Operating the pressure washer
Increase working pressure and water flow rate
► Turn rotary control (1) towards +.
Decrease working pressure and water flow rate
► Turn rotary control (1) towards –.
The pressure in the high-pressure pump is indicated by the
pressure gauge (2).

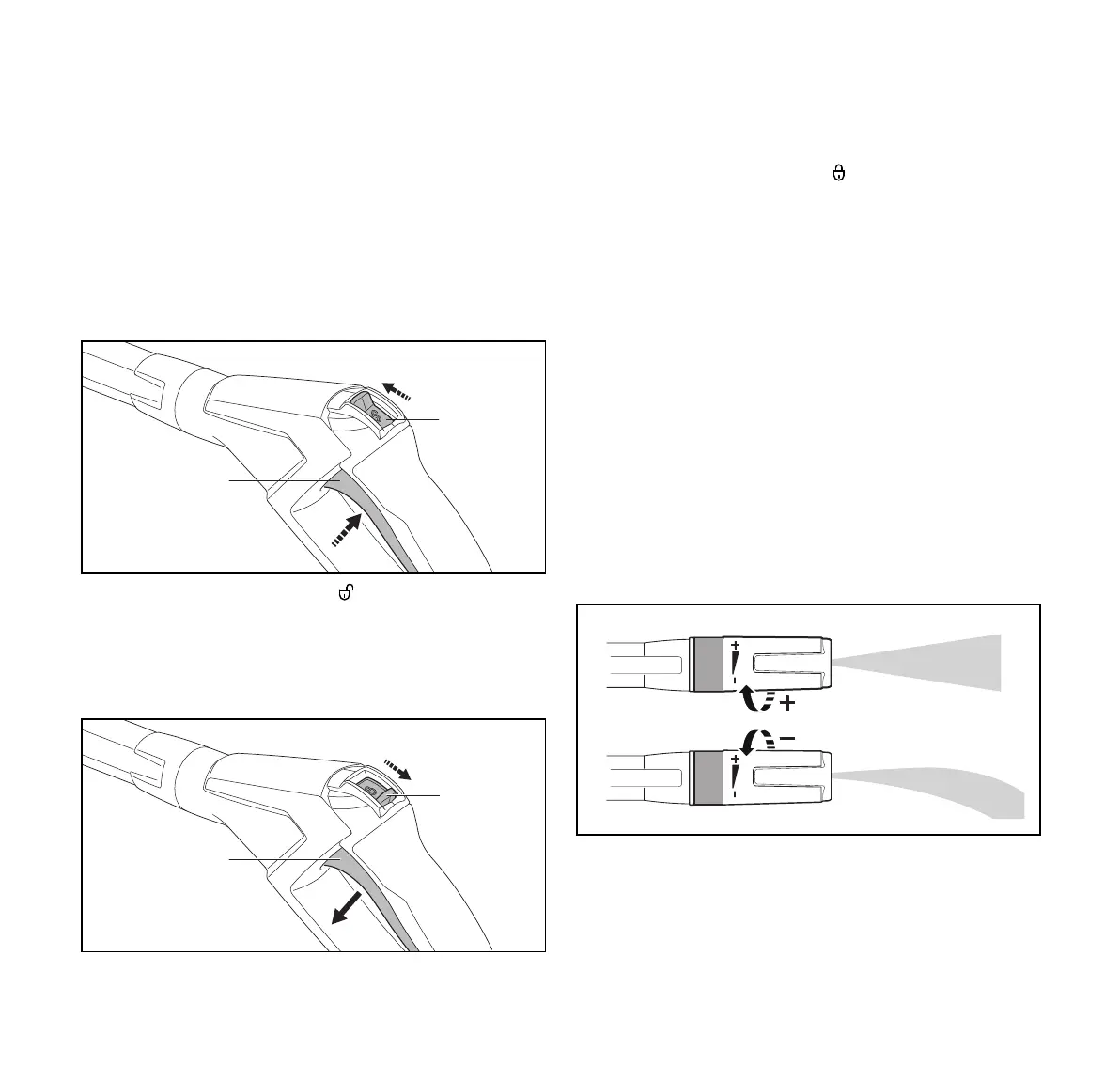

11.4 Pressing and locking the spray gun lever
Press spray gun lever
► Move retaining latch (1) to the position.
► Press and hold lever (2).
The high pressure pump switches on automatically and
water flows out of the nozzle.
Lock spray gun lever
► Release lever (2)
The high pressure pump switches off automatically and
water no longer flows out of the nozzle. The pressure
washer is still switched on.
► Move retaining latch (1) to the position.
11.5 Cleaning
The following nozzles can be used depending on the
application:
– Fan-jet nozzle: The fan jet nozzle is suitable for cleaning
large surfaces.
– Rotary nozzle: The rotary nozzle is suitable for removing
stubborn dirt.
Work can be carried out at a small distance if stubborn dirt
is to be removed.
Work can be carried out at a great distance if the following
surfaces are to be cleaned:
– Varnished surfaces
– Surfaces made of wood
– Rubber surfaces
The fan jet nozzle can be adjusted.
If the flat jet nozzle is turned in the + direction, the working
pressure increases.
If the flat jet nozzle is turned in the – direction, the working
pressure decreases.
0000-GXX-4360-A0
1
2
0000-GXX-4612-A0
1
2
0000-GXX-9848-A0

Stihl RE 170 PLUS Specifications

General

Form factor	Upright
Hose length	- m
Cable length	5 m
Power source	Electric
Product color	Black, Orange
Pump material	Aluminum
Detergent tank	-
Maximum flow rate	648 l/h
Minimum flow rate	570 l/h
Sound power level	85 dB
Vibration emission	2.4 m/s²
Working pressure (max)	180 bar
Working pressure (min)	150 bar
Maximum water temperature	60 °C
AC input voltage	230 V
Power consumption (typical)	- W

Weight and Dimensions

Weight	31000 g
