English 7 Assembling the pressure washer
7.1 Assembling the pressure washer

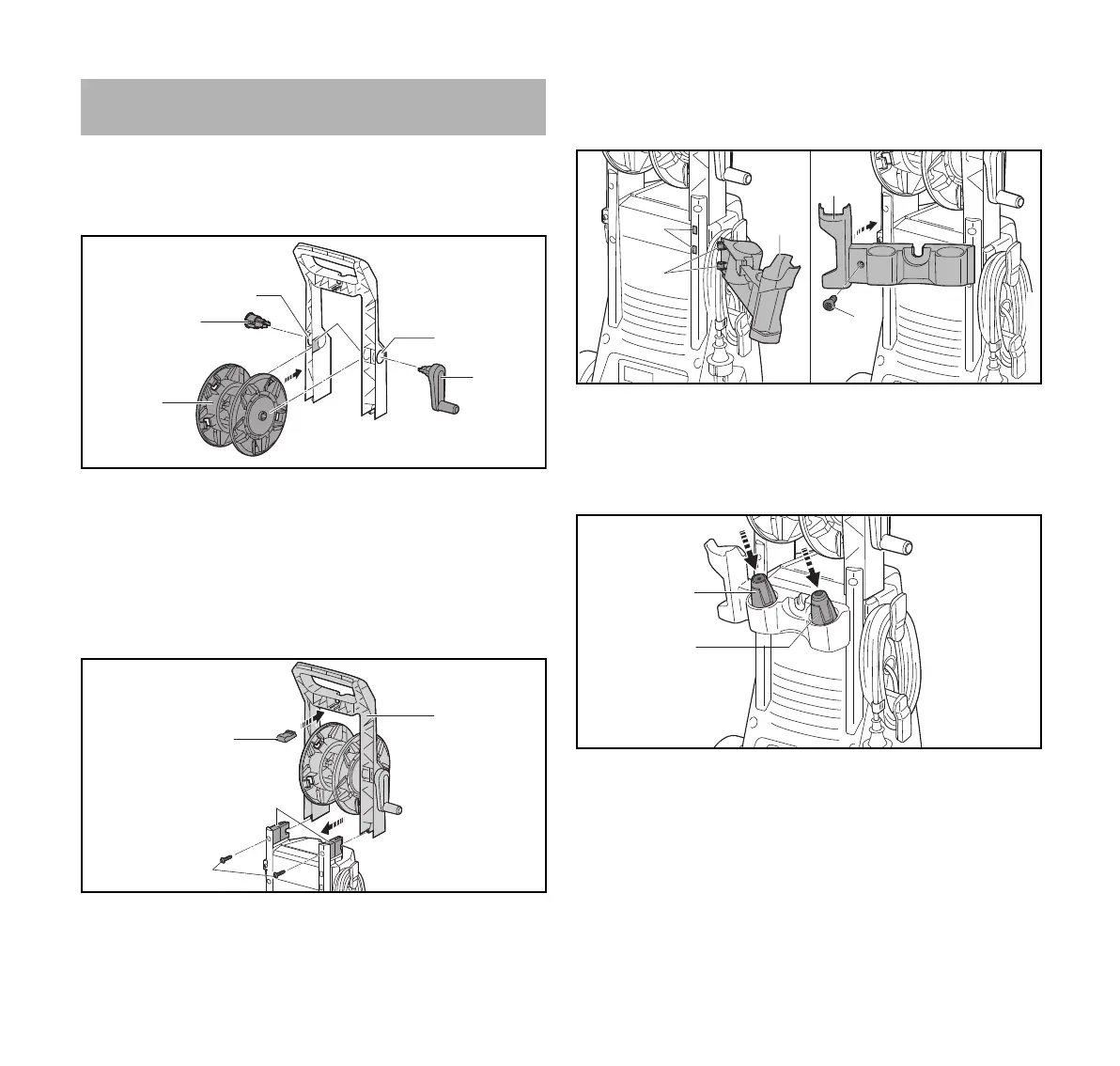

Installing hose reel
► Slide the hose reel (1) into the guides (2).
The hose reel (1) engages with a perceptible click.
► Slide the plugs (3) into the mounts (4).
The plug (3) audibly engages.
► Push the crank (5) into the mounts (6).
The crank (5) audibly engages.
Attaching the handle and inserting the cleaning pin
► Slide handle (1) onto the holder (2).
► Insert screws (3) and tighten.
► Insert cleaning pin (4).
Installing the holder
► Engage the hooks (1) of the holder (2) in the guides (3).
► Fold the holder (2) to the left.
► Insert screw (4) and tighten.
Inserting nozzles
► Insert fan-jet nozzle (1) and rotary nozzle (2).
