English 7 Assembling the pressure washer

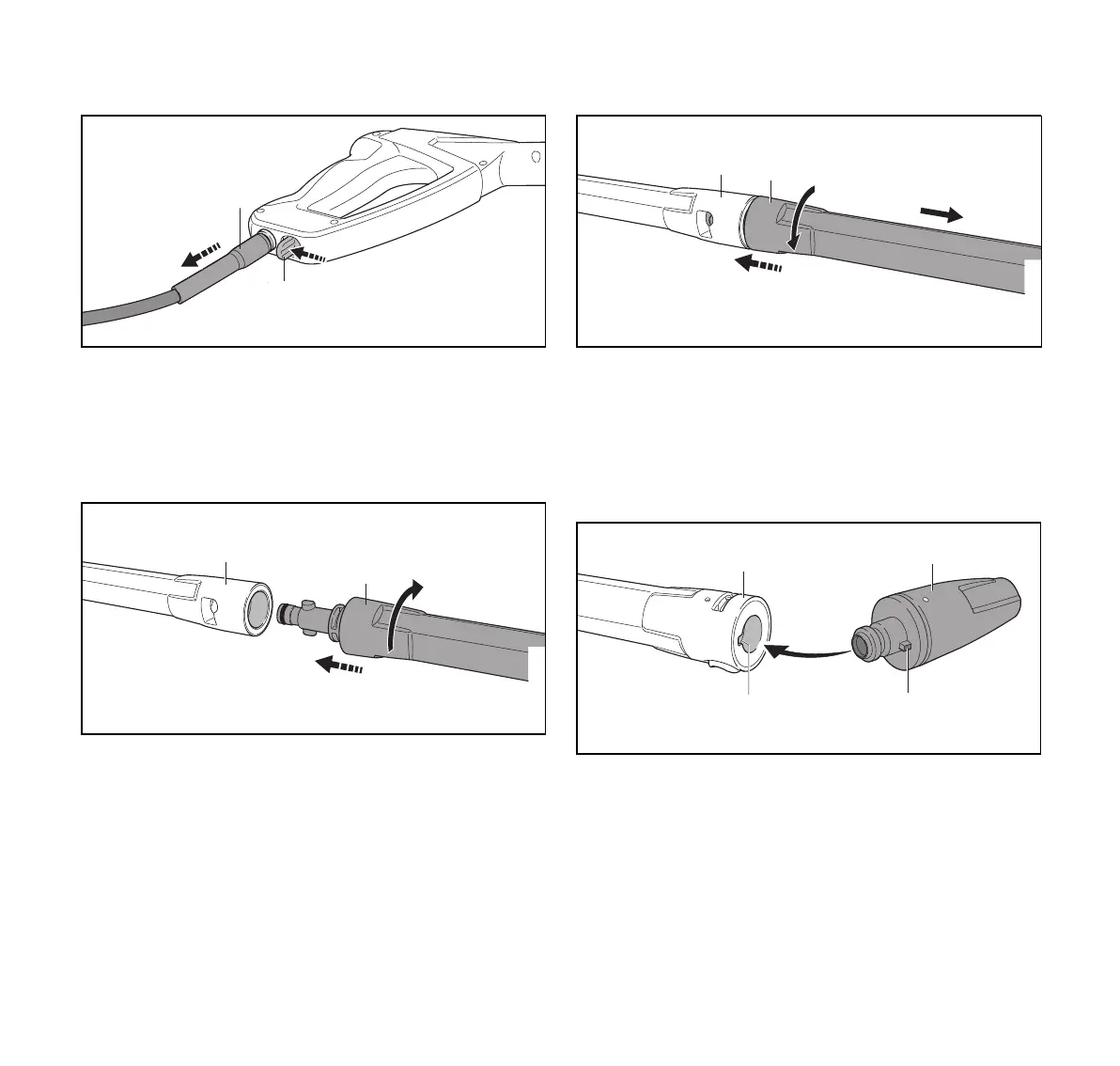

7.3.2 Removing the spray gun
► Press and hold the locking lever (1).
► Pull out the socket (2).
7.4 Attaching and removing the spray lance
7.4.1 Attaching the spray lance
► Push spray lance (1) into spray gun (2).
► Twist the spray lance (1) until it engages.
► If the spray lance (1) cannot be pushed easily into the
spray gun (2): Grease the gasket on the spray lance (1)
with grease for fittings.
7.4.2 Removing the spray lance
► Squeeze spray lance (1) and spray gun (2) together and
twist as far as they will go.
► Pull spray lance (1) and spray gun (2) apart.
7.5 Attaching and removing the nozzle
7.5.1 Attaching the nozzle
► If attaching the fan-jet nozzle: Align the nozzle (1) so that
the lug (2) lines up with the recess (3) in the spray
lance (4).
► Push the nozzle (1) into the spray lance (4).
The nozzle (1) audibly engages.
► If the nozzle (1) cannot be pushed easily into the spray
lance (4): Grease the gasket on the nozzle (1) with grease
for fittings.
