7 Assembling the pressure washer
Attaching spraying set

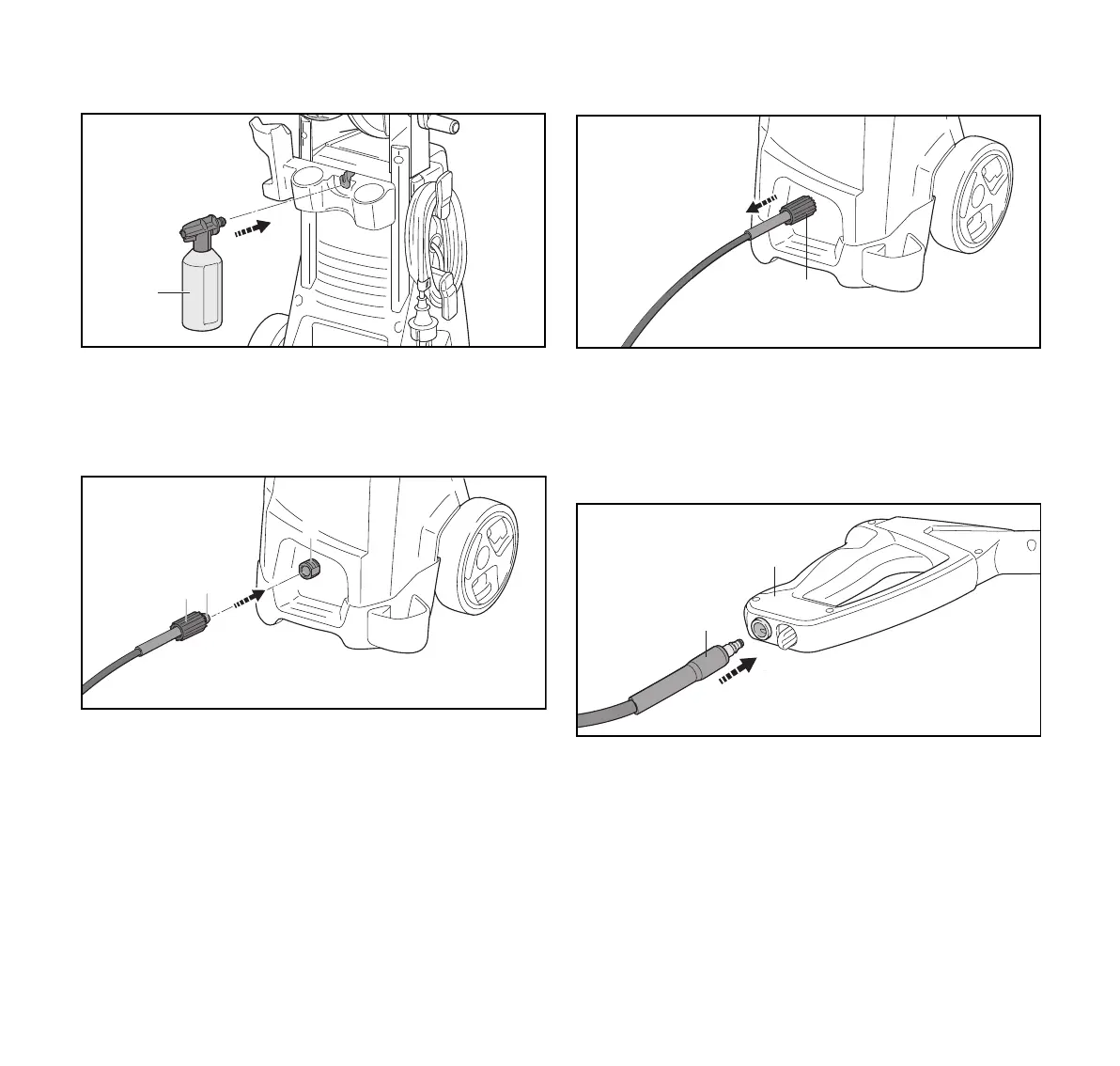

► Insert spraying set (1).
7.2 Fitting and removing the high-pressure hose
7.2.1 Connecting the high-pressure hose
► Push the coupling (1) into the connector (2).
► Screw union nut (3) onto the connector (2).
► If it is difficult to slide the coupling (1) into the connector:
Grease coupling (1) with grease for fittings.
► If it is difficult to turn the union nut (3) on the connector:
Grease union nut (3) with grease for fittings.
7.2.2 Removing high-pressure hose
► Unscrew union nut (1).
► Pull out high-pressure hose.
7.3 Attaching and removing the spray gun
7.3.1 Attaching the spray gun
► Slide the socket (1) into the spray gun (2).
The socket (1) audibly engages.
► If the socket (1) cannot be easily pushed into the spray
gun (2): Grease the seal on the socket (1) with grease for
fittings.
