8 Connecting to a water source

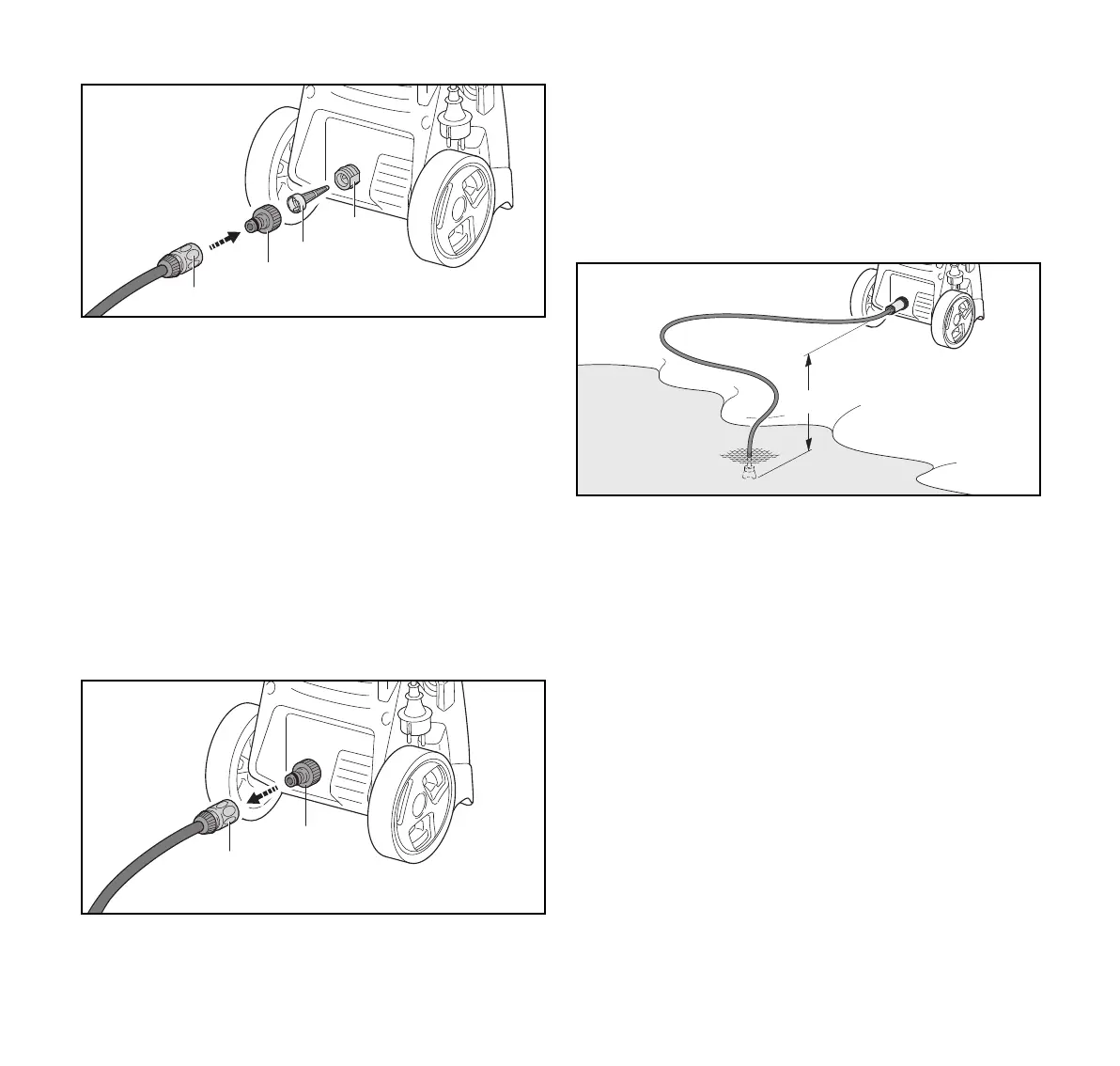

► Insert water intake screen (1) into the connector (2).
► Screw connector (3) onto connector (2) and tighten hand-
tight.
► Push the coupling (4) onto the connector (2).
The coupling (4) engages audibly.
► Open water tap fully.
► If the spray lance is fitted to the spray gun: Remove spray
lance.
► Keep the trigger of the spray gun pressed until an even jet
of water is delivered by the spray gun.
► Release spray gun trigger.
► Lock spray gun trigger.
► Attach the nozzle.
Removing the water hose
► Turn off water tap.
► To release the coupling: Pull or turn ring (1) and hold.
► Pull the coupling off the connector (2).
8.3 Connecting the pressure washer to another
water source
The pressure washer can draw water from water butts and
cisterns and from running or stagnant bodies of water.
So that the water can be drawn in, the height difference
between the pressure washer and the water source should
not exceed the maximum suction lift (a), @ 19.1.
The appropriate STIHL suction set must be used. The
suction set includes a water hose with a special coupling.
Depending on the market, the appropriate STIHL suction set
may be supplied with the pressure washer.
Connecting the water filter
If operating the pressure washer with sandy water from
water butts, cisterns or running or stagnant bodies of water,
a water filter must be connected in-line between the water
hose and the pressure washer.
Depending on the market, the water filter may be supplied
with the pressure washer.
