Stihl RE 98 - Power Cord Holders; Water Inlet Connector; Fitting and Removing the Spray Lance; Spray Lance Installation

RE 98
English
39

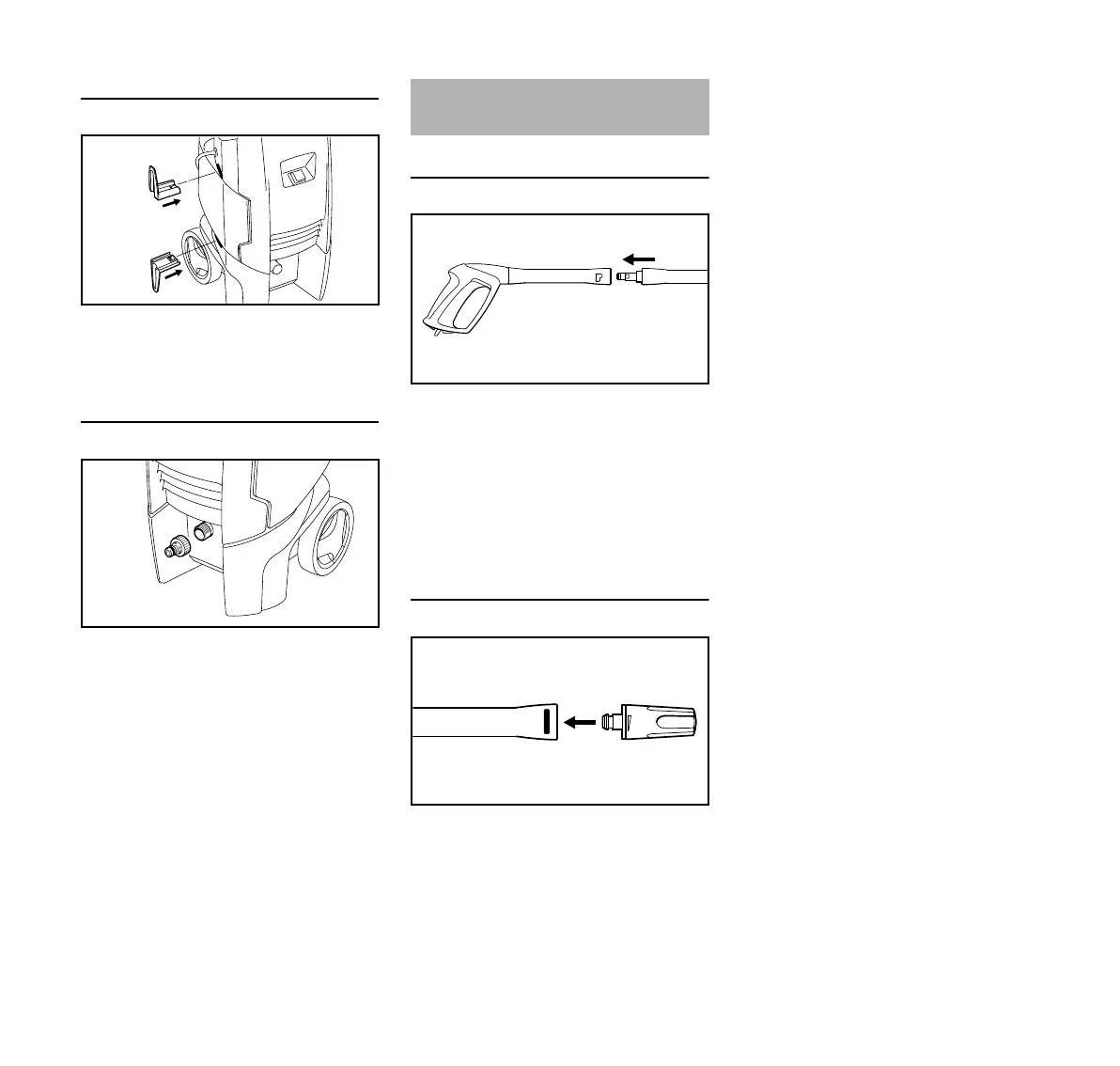

Holders for power cord
N Press the holders (5) for the power
cord into the mounts on the housing
– holders must snap into place
Connector on water inlet
N Attach the connector (6) to the
water inlet by hand and tighten it
Spray lance
N Press the spray lance (1) into the
mount on the spray gun (2), turn it
by 90° so that it engages
Remove
N Press the spray lance (1) into the
mount on the spray gun (2), turn it
by 90° and pull it out of the mount
Nozzle
N Insert nozzle (3) in spray lance until
the safety latch (4) engages – at
which point the safety latch button
will spring out again – the adjustable
high-pressure nozzle has an anti-
twist device; orient this according to
the groove on the spray lance
Remove
N Press the safety latch button (4) and
pull out the nozzle (3)
600BA003 KN
5
5
6
600BA004 KN
Fitting, removing spray lance
600BA005 KN
2
1
4
600BA006 KN
-
+
3
