Stihl RE 98 - Hose Connections; High-Pressure Hose on Machine; Connecting Hose to Spray Gun; High-Pressure Hose Extension

RE 98
English
40

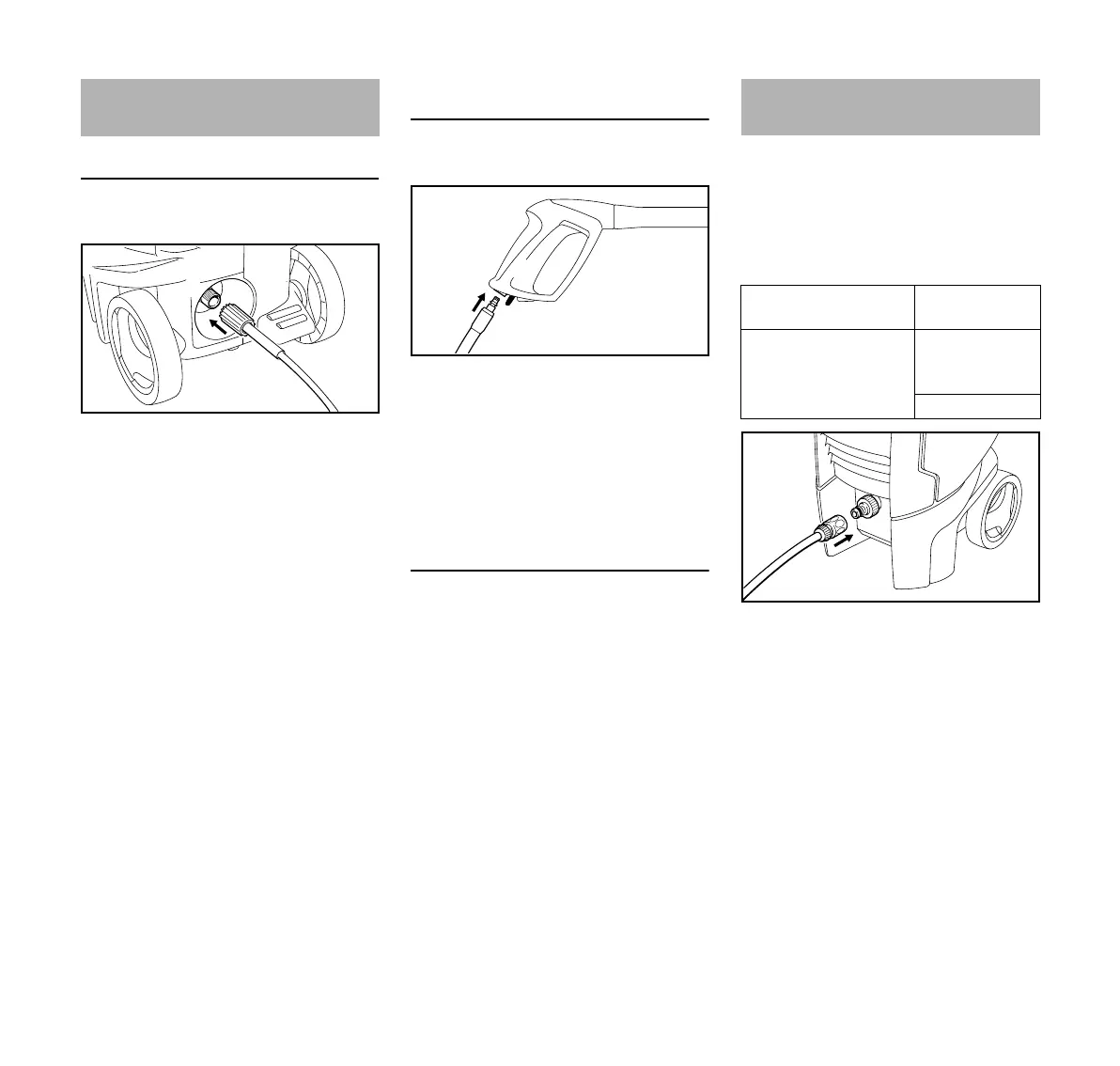

High-pressure hose on machine
Fit
N Push high-pressure hose onto the
connector (2)
N Attach union nut (1) and screw it on
and tighten by hand
Remove
N Unscrew the union nut (1)
N Pull high-pressure hose off of
connector (2)
Connecting the high-pressure hose to
the spray
Fit
N Push the connector (3) of the high-
pressure hose into the mount on the
spray gun (4) until it engages
Remove
N Actuate the spring button (5) and
pull the high-pressure hose out of
the mount on the spray gun
High-pressure hose extension
As a rule, always use only one high-
pressure hose extension – see "Special
accessories"
N Connecting the water hose
Briefly rinse out the water hose before
connecting it to the machine to prevent
sand and other dirt particles from
entering the machine and to purge the
air from the water hose.
N Push the coupling (1) on to the hose
connector (2)
N Turn on water supply
To vent the system:
N Actuate the spray gun (without
spray lance mounted) until a
uniform water jet emerges
Fitting, removing high-
pressure hose
1
600BA007 KN
2
3
600BA008 KN
4
5
Connecting the water supply
Diameter of water
hose: 1/2"
Length of water hose: min. 10 m (to
absorb pres-
sure surges)
max. 25 m
2
600BA009 KN
1
