Stihl RE 98 - Main Parts Identification; Component Overview

RE 98
English
50

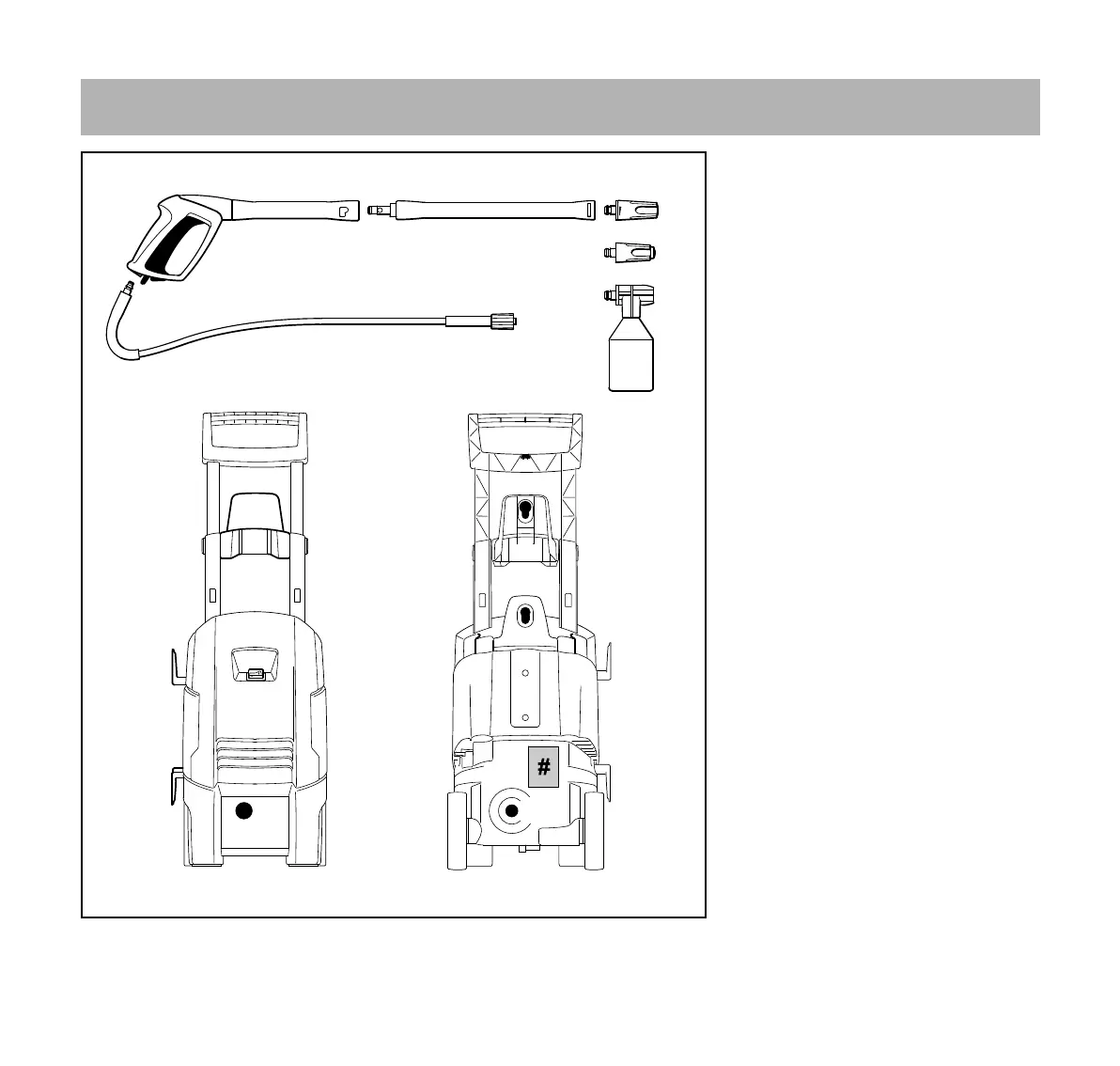

1 Spray gun
2 Lever
3 Safety catch
4 Spring button
5 High-pressure hose
6 Spray lance
7 High-pressure nozzle, adjustable
8 Rotary nozzle
9 Spray set
10 Connector for water hose
11 Machine switch
12 Holders for power cord
13 Holder for high-pressure hose
14 High-pressure hose connection
15 Holder for spray lance and spray
gun
16 Bracket for nozzles
17 Holder for spray set and additional
special accessories, e.g., wash
brush
18 Cleaning pin
# Model plate
Main Parts
17
17
18
11
10
2
600BA020 KN
5
9
1
3
4
8
6
7
12
13
16
15
12
14
