Stihl RMI 522 C User Manual

0478 131 8365 C - EN
32

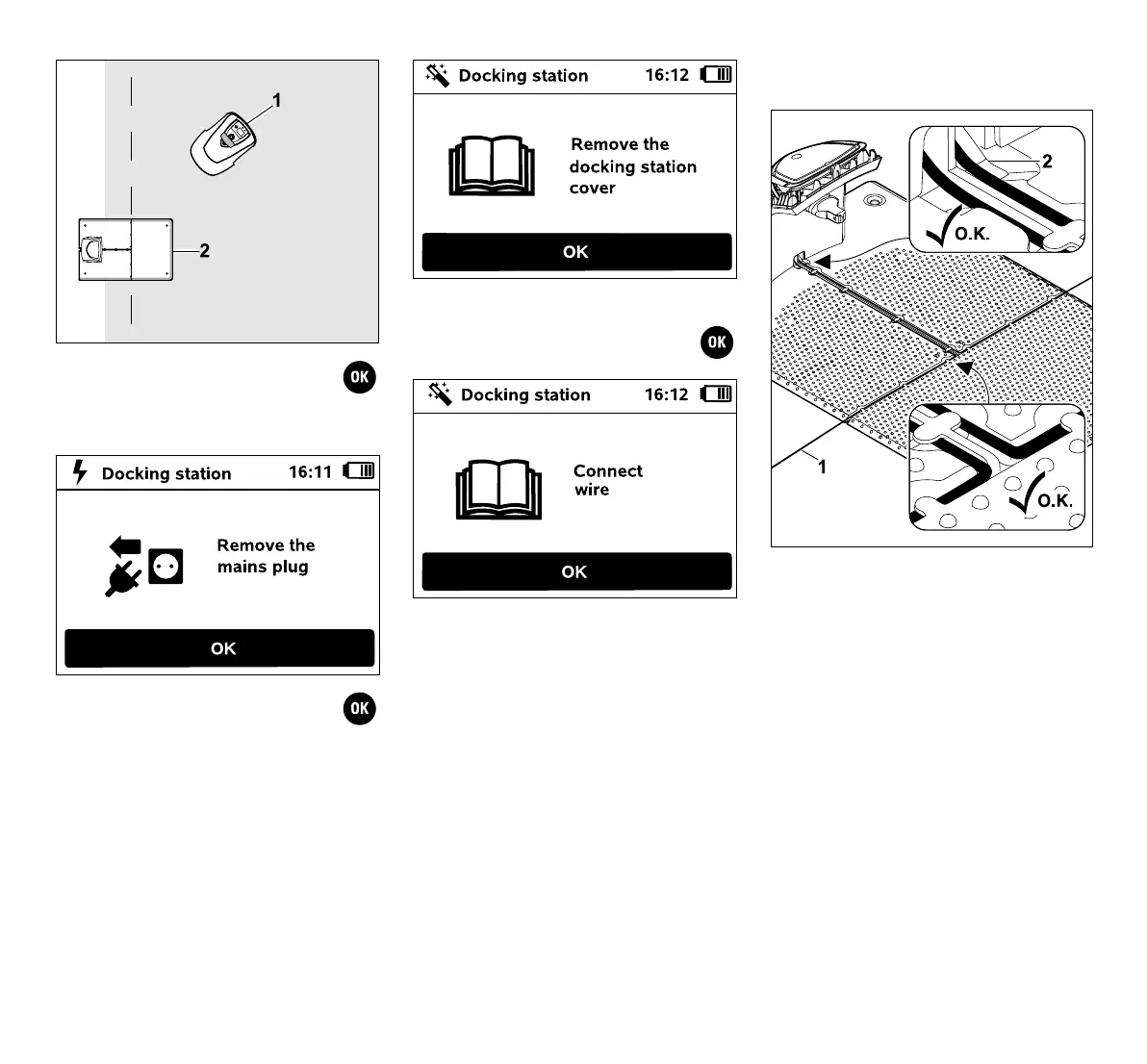

Place the robotic mower (1) within
the mowing area, behind the
docking station (2) as illustrated,
then press the OK button.
Disconnect the power supply unit
plug from the mains, then press the
OK button.
Remove the cover. (Ö 9.2)
Press the OK button.
Perimeter wire with internal docking
station:
Insert the perimeter wire (1) into the cable
guides in the floor plate and guide it
through the socket (2).

Stihl RMI 522 C Specifications

General

Cutting Width	20 in (51 cm)
Battery Type	Lithium-Ion
Cutting Height Adjustment	Central
Sound Power Level	60 dB(A)
Warranty	2 years
Maximum Lawn Area	2100 m²
Slope Capability	40%
Rated Output	1000 W
Engine Type	DC electric motor
Power Output	1000 W
Cutting Height Range	0.8 - 2.4 inches
Vibration Level Left/Right	2.5/2.5 m/s²
