EN
41
0478 131 8365 C - EN

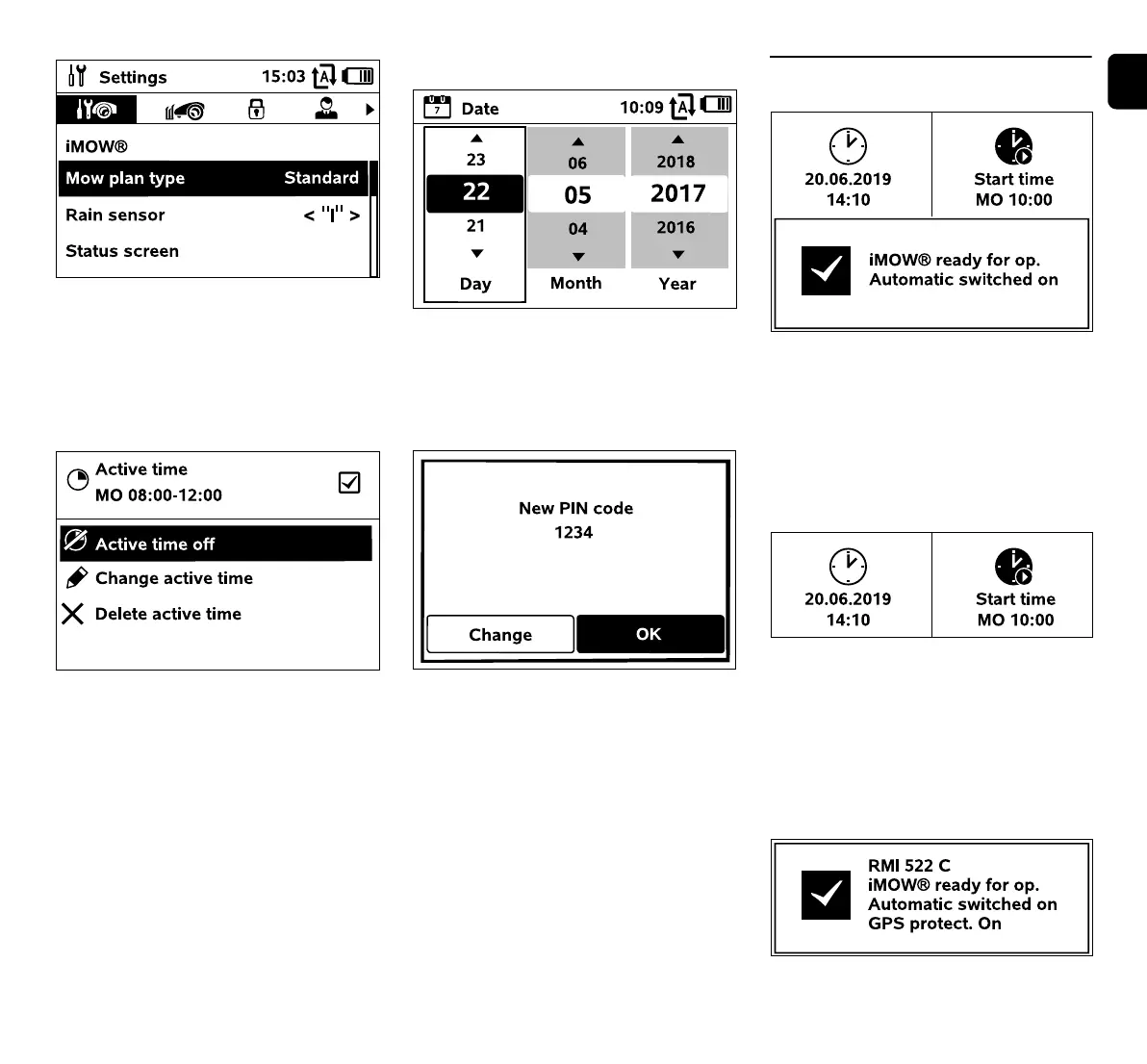

The "Settings" and "Information"
submenus are shown as tabs.
The tabs can be selected by pressing the
control pad to the left or right, submenus
by pressing the control pad downwards or
upwards. Active tabs and menu entries
have a black background.
Options are listed in the submenus. Active
list entries have a black background.
Pressing the OK button opens a selection
or a dialog window.
Selection window:
Settings can be changed by pressing the
control pad. The current value is
highlighted in black. The OK button
confirms all the values.
Dialog window:
If changes have to be saved or messages
confirmed, a dialog window appears on the
display. The active button has a black
background.
In the case of selection options, the
relevant button can be activated by
pressing the control pad to the left or right.
The selected option is confirmed and the
higher-level menu called up using the OK
button.
11.2 Status screen
The status screen appears
– when standby mode of the robotic
mower is ended by pressing a button,
– when the Back button is pressed in the
main menu,
– during running operation.
There are two configurable fields in the top
display area. Various information
regarding the robotic mower and the
mowing operations can be displayed here.
(Ö 11.12)
Status information with no running
activity:
