10 Installing the Robotic Mower

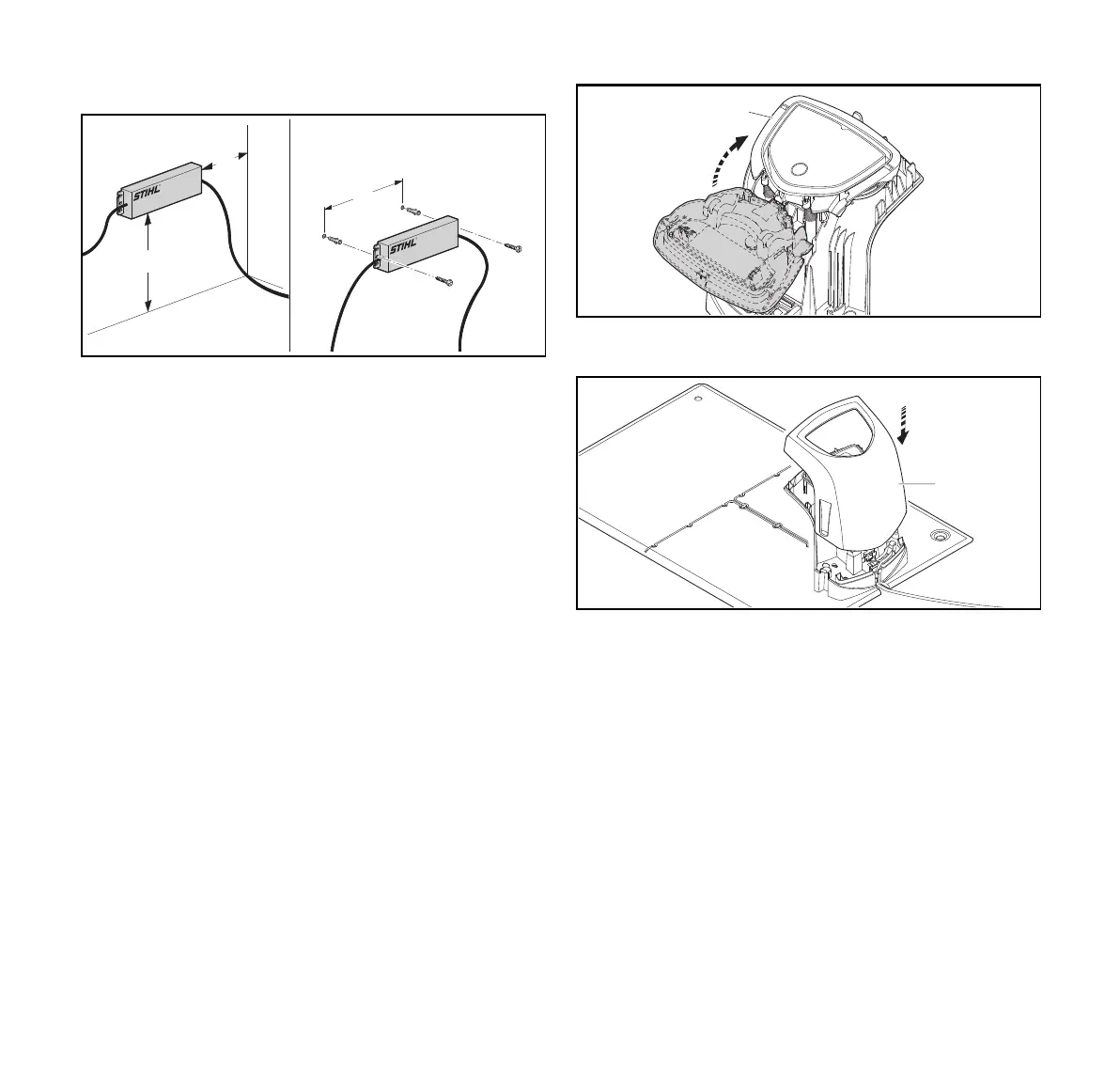

To mount the power supply:
► Install the power supply outside the mowing area at least
one foot above the ground and never at ground level or in
any location where it could be immersed in water or other
liquids.
► Use appropriate screw-in wall anchors or other similar
mounting devices if an appropriate wall stud is not
available.
► Align the power supply as shown above. Mount to a wall
with the following dimensions:
– a = minimum 1 ft. (30 cm)
– b = minimum 3.9 in. (10 cm)
– c = 9.2 in. (233 mm)
NOTICE
When mounting, ensure that no electrical cables, pipes or
other service lines run in the wall behind the power supply.
► Route the power supply cord outside the mowing area, out
of working range of the mowing blade, and secure it to the
ground or route it through a cable duct.
► Direct the power supply cord away from the docking
station in order to avoid electrical interference with the
perimeter wire signal. Make sure that it will not be in the
cutting path of the robotic mower.
► Close the panel (6). Take care not to pinch the power
supply cord or the perimeter wire.
► Re-attach the cover (5). Take care not to pinch the power
supply cord or the perimeter wire.
► Connect the docking station only to a covered Class A
GFCI receptacle that matches the voltage and electrical
frequency stated on the power supply. It must have an
enclosure that makes it weatherproof both when the plug
cap is inserted and when it is removed.
The LED on the docking station will flash red rapidly until
the perimeter wire is installed and properly connected to
the docking station.
6
0000-GXX-5347-A0
5
0000-GXX-3350-A0
