► Starting at the docking station, follow the edge of the
mowing area in a clockwise direction with the robotic
mower (1). Steer the machine using the control panel /
manual controller for this purpose and ensure that the
perimeter wire (2) runs under the wire sensor in the robotic
mower. The wire sensors are installed in a protected
position on the left and right at the front of the robotic
mower.
Locating a wire break
► During the wire break search, the signal strength is
indicated on the display. The wire sensors are in the ideal
position above the perimeter wire when this value is at its
highest.
► Repair the wire break using a wire connector, @ 11.14. If
necessary, re-route the perimeter wire to avoid the source
of the wire break.
NOTICE
If you cannot find a wire break as described, contact your
authorized STIHL iMow servicing dealer.
23.1 STIHL RMI 632.0 PC-L Robotic Mower (iMow)
RMI = Robotic lawn mower, automatic and battery powered
– Cutting width: 11 in. (28 cm)
– Cutting height: 0.79 in. to 2.4 in. (20 mm to 60 mm)
– Speed of mowing blade: 3150 RPM
– Weight: 28.7 lbs. (13 kg)
– Insulation: Class III (designed to be supplied from a
separated/safety extra-low voltage (SELV) power source)
– Protection rating: IPX4 (protected against spraying or
splashing water from all directions)
– Permissible ambient temperature range during use: 41 °F
to 104 °F (5 °C to 40 °C)
– Permissible ambient temperature range during storage:
32 °F to 122 °F (0 °C to 50 °C)
– Supported mobile radio frequency bands: E-GSM-900,
DCS-1800
– Radiated maximum transmitting power:
– E-GSM-900: 880 to 915 MHz, 33.0 dBm
– DCS-1800: 1710 to 1785 MHz, 30.0 dBm
– Frequency range of perimeter wire and search loops:
1 kHz to 90 kHz
– Maximum field strength: < 72 μA/m
23.2 STIHL AAI 201 Battery
Approved power supply type: STIHL ADO 601 Docking
Station in combination with HLG-185H-42VUSM Power
Supply
– Battery technology: Lithium-Ion
– Voltage: 29 V
– Rated capacity in Ah
1
: 6.8 Ah
– Stored energy in Wh
2
: 194 Wh
– Weight in kg: 3.1 lbs. (1.4 kg)
– Permissible ambient temperature range during use or
storage: 14 °F to 122 °F (- 10 °C to 50 °C)

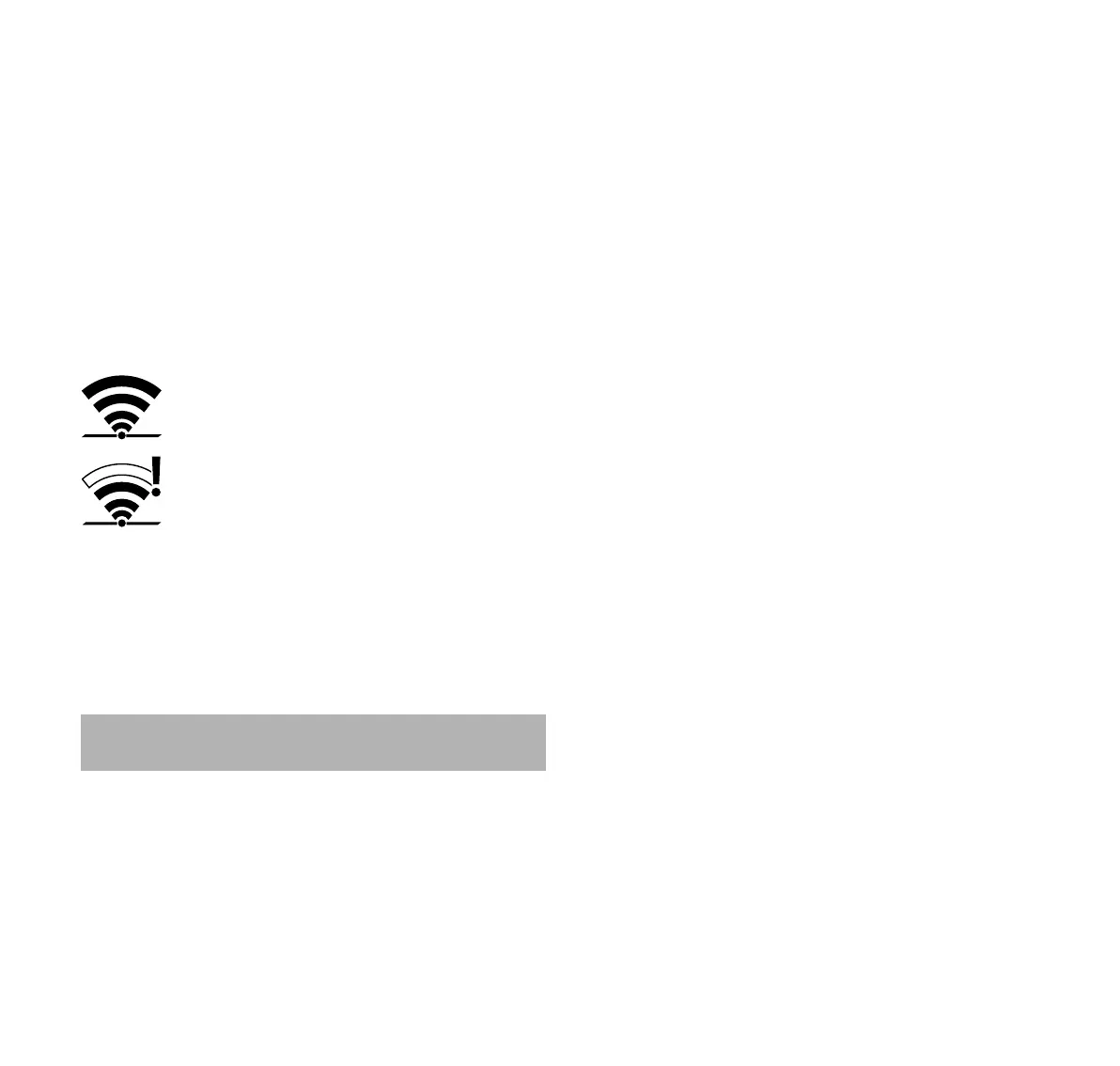

If the wire sensors are correctly receiving the
wire signal, the display shows this symbol.
In the area of the wire break, the signal strength
drops and the display shows this symbol.
23 Specifications
1
Rated capacity calculated pursuant to IEC 61960. Usable energy
available to the operator will be less.
2
The battery is marked with its stored energy as provided by the cell
manufacturer. Usable energy available to the operator will be less.
