0478-131-3052-A
4
English

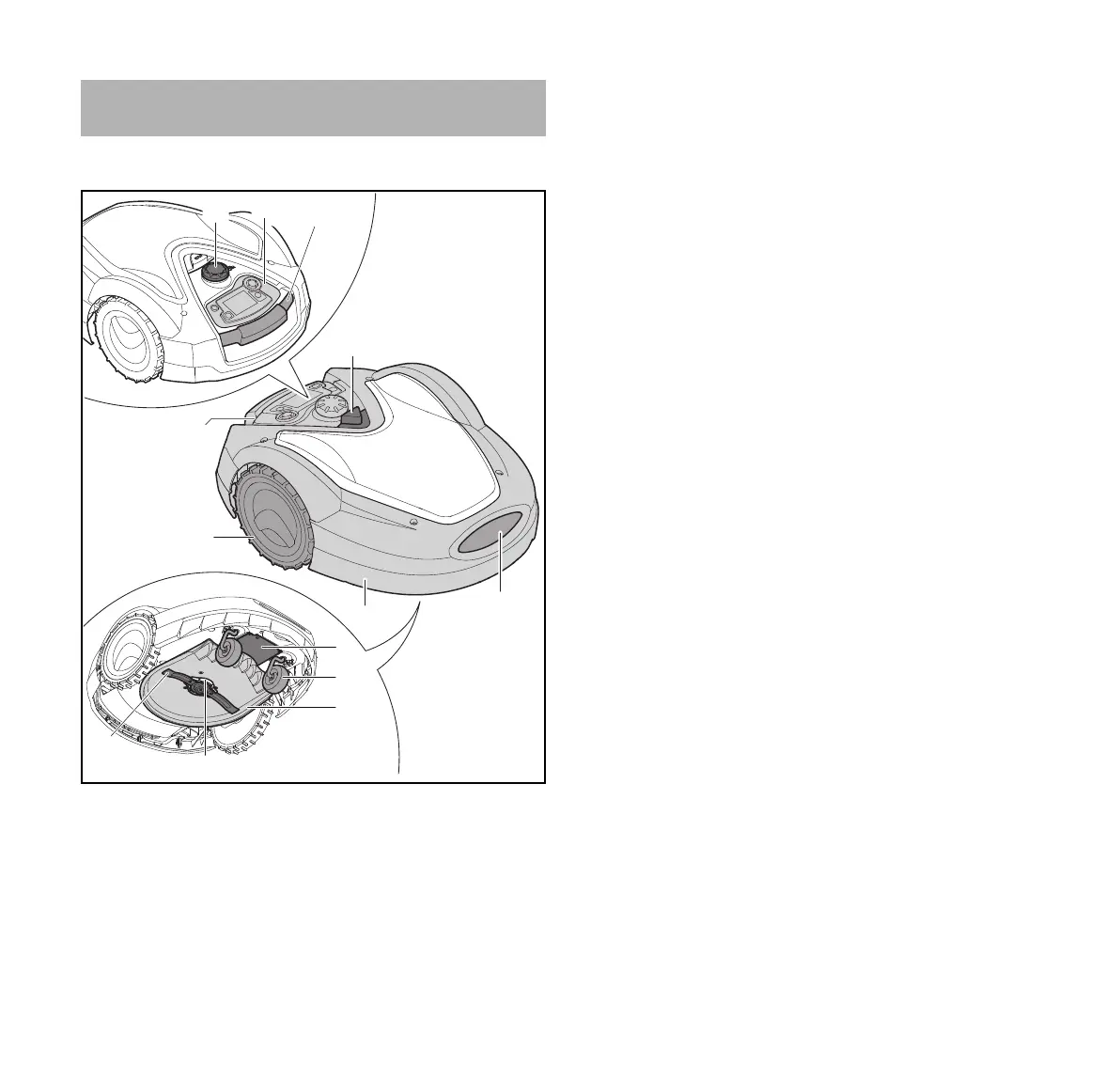

3 Main Parts
3.1 Robotic Mower
1 Cutting Height Adjustment Knob
For adjusting the height of the mowing blade.
2 Removable Control Panel / Manual Controller
For navigating the mower's menu options and controlling
the mower while cutting in manual mode.
3 Carrying Handle
For lifting and transporting the robotic mower.
4 STOP Button
Stops the robotic mower and the mowing blade.
5 Charging Contacts
Electrical contacts in the robotic mower for connecting to
the docking station for charging.
6Hood
Covers the mower's internal parts.
7 Rear Wheels
The mower's drive wheels.
8 Battery Compartment
Compartment for the integrated lithium ion battery.
9 Front Wheels
Guide wheels for the robotic mower.
10 Mower Deck
Underside of the mower where mowing and mulching
operations take place.
11 Carrier Plate
For mounting and securing the mowing blade.
12 Mowing Blade
Metal blade for cutting grass.
Integrated GPS Receiver (not illustrated)
Provides location, speed and navigation information for
the robotic mower.
Cellular Module (not illustrated)
Provides an Internet connection.
# Rating Plate
Contains electrical information and the product's serial
number.
3Main Parts
10
11
12
3
4
6
5
7
8
9
#
1 2
0000-GXX-3590-A1
