21 Inspection and Maintenance

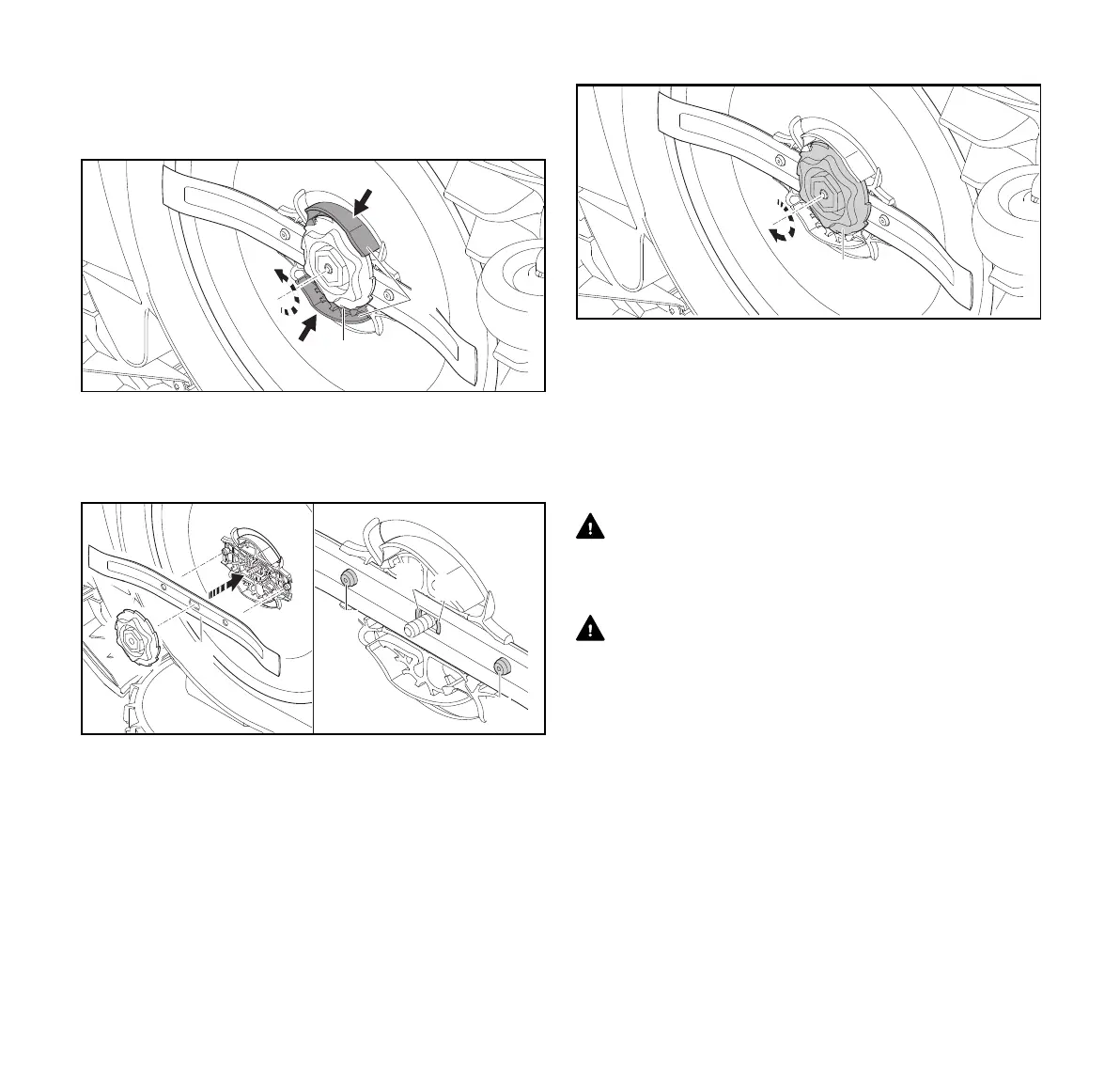

To replace the mowing blade:
► Tilt the robotic mower onto its side and lean it securely
against a stable wall.
► Push in both tabs (1) on the carrier plate with one hand
and hold.
► Remove the fastening nut (2) with your other hand.
► Remove the mowing blade including the fastening nut.
► Mount the new mowing blade (2) as depicted above. The
retainers (3) must fit into the holes in the mowing blade.
► Turn the fastening nut (4) clockwise until you hear several
audible clicks.
► Confirm that you have mounted a new mowing blade in the
"Service" menu, @ 15.5.
21.4 Mounting and Removing the Carrier Plate
21.4.1 Mounting the Carrier Plate
WARNING
To reduce the risk of personal injury from thrown or flung
objects, do not mount a worn, broken or damaged carrier
plate.
WARNING
To reduce the risk of laceration injuries, always wear heavy-
duty work gloves when mounting or otherwise handling the
carrier plate, @ 5.3.
To mount the carrier plate:
► Tilt the robotic mower onto its side and lean it securely
against a wall.
► Clean the mowing deck with a brush or a slightly
dampened cloth.
2
3
3
3
3
