0478-131-3052-A
31
English
10 Installing the Robotic Mower

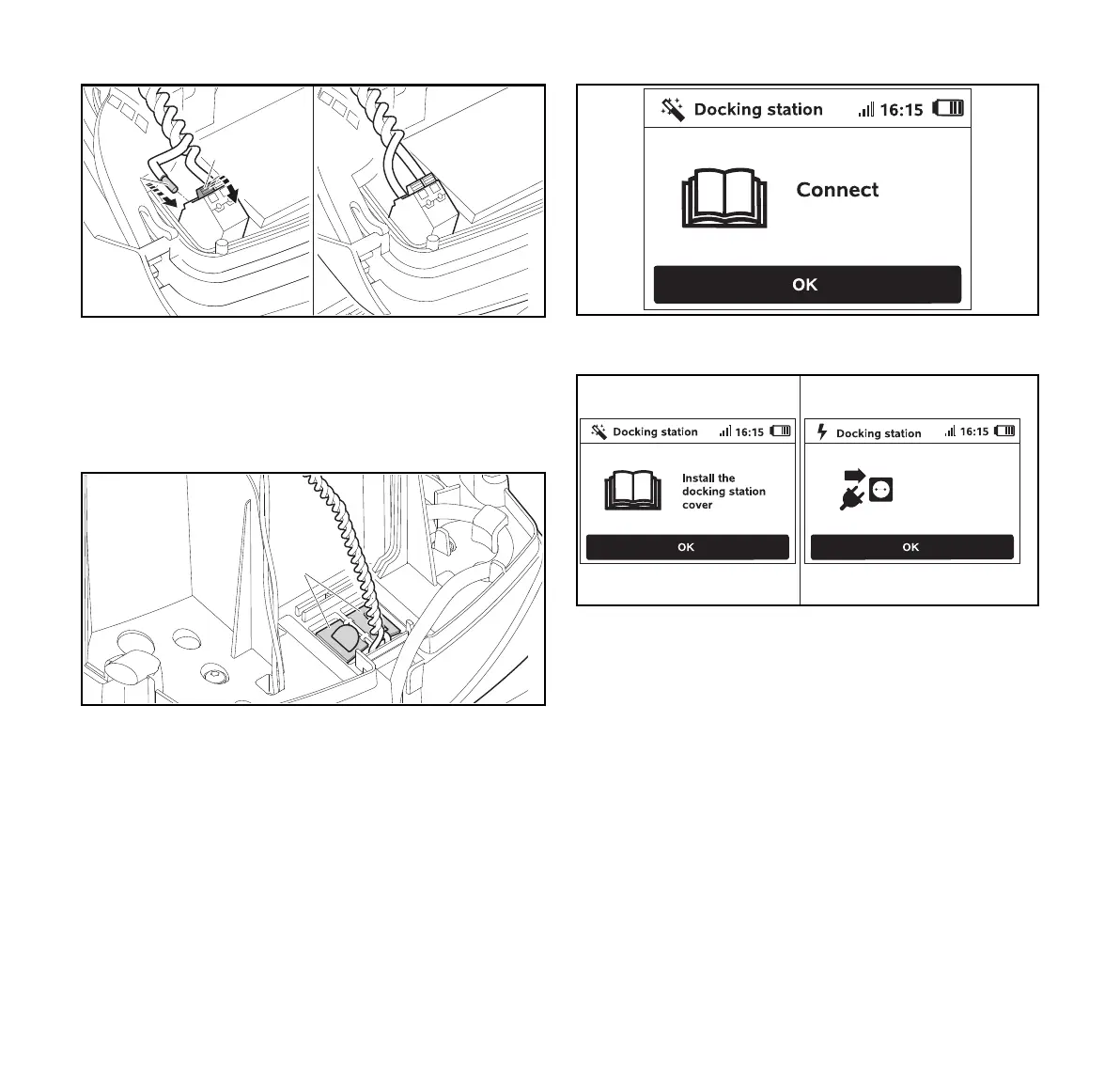

► Press and open the right clamping lever (9).
► Insert the stripped perimeter wire end (6) into the clamping
block as far as it will go.
► Close the clamping lever (9).
► Close the panel. Take care not to pinch the power supply
cord or the perimeter wire.
► Close the cover of the cable duct (10).
► Check the routing of the perimeter wire. The two perimeter
wire ends must be routed as illustrated.
► Press the OK button on the control panel / manual
controller.
► Re-attach the cover as described in the "Installing the
docking station" section (@ 10.3) and press the OK
button on the control panel / manual controller.
► Connect the power supply plug to the electrical outlet and
press the OK button on the control panel / manual
controller.
6
9
0000-GXX-5354-A1
0000-GXX-5413-A2
perimeter wire
0000-GXX-3363-A2
Plug in the
docking station
