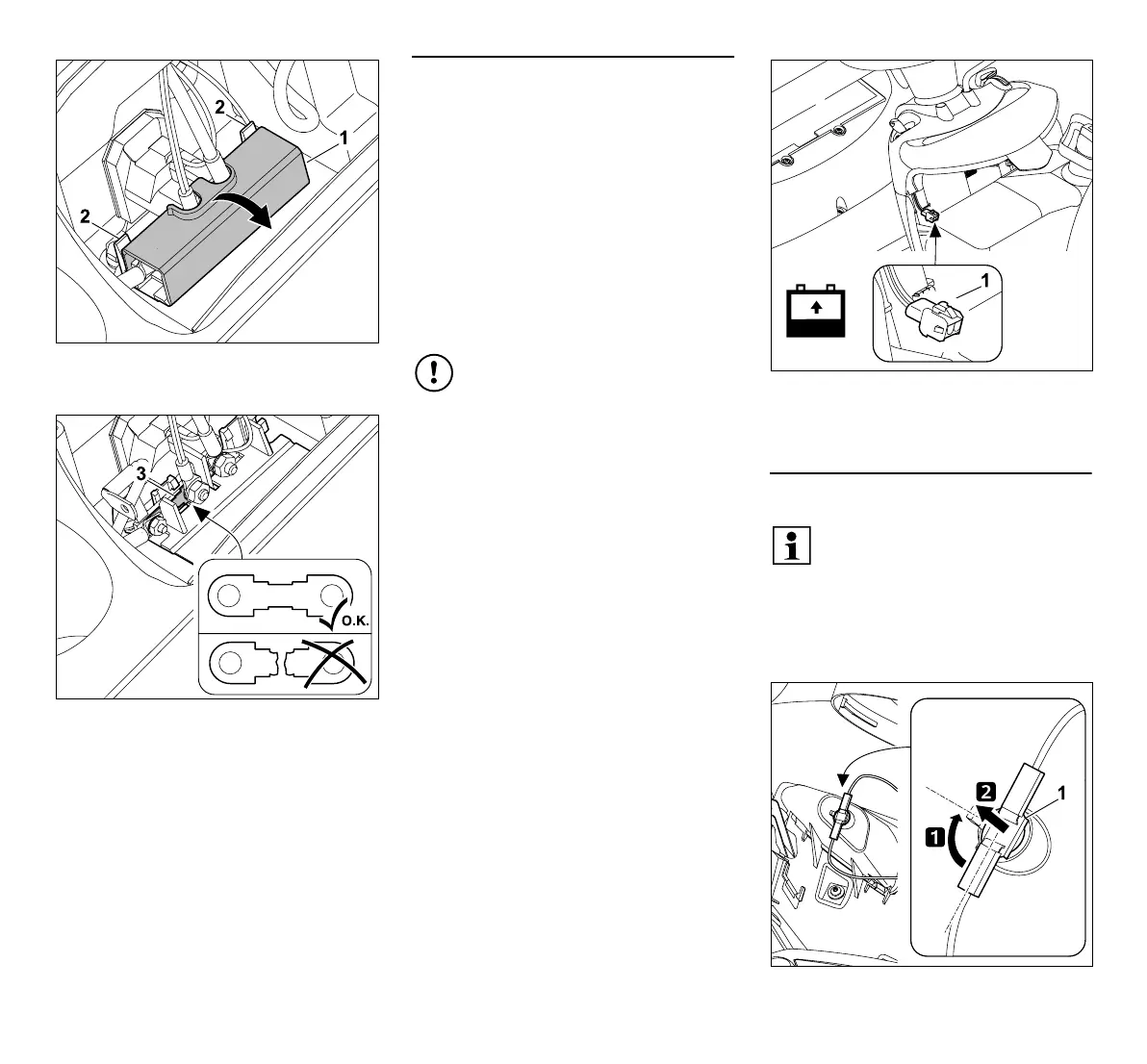

Open the cover (1) by lightly pressing the
tabs (2) to the rear.
Visually check whether the fuse (3) is
damaged (blown). If necessary have the
fuse (3) replaced by a specialist dealer.
STIHL recommends STIHL specialist
dealers.
● Close the cover again.
● Install the battery. (Ö 15.19)
15.21 Charging the battery using the
charger plug
The STIHL ACB 010 battery float charger
or the STIHL ADL 012 diagnostic charger
(neither included in standard equipment)
can be connected.
Only float charging can be performed with
the STIHL ACB 010 battery float charger.
Both float charging and full charging
(charging an empty battery) can be
performed with the ADL 012 diagnostic
charger.
Before connecting:
● Read and observe the information in
the instruction manuals for the STIHL
chargers.
● Read and observe the instructions in
the battery supplementary sheet.
Connecting:
● Stop the engine. (Ö 13.3)
● Engage the parking brake. (Ö 8.14)
● Open the engine hood. (Ö 15.3)
Only connect the STIHL ACB 010 battery
float charger or the STIHL ADL 012
diagnostic charger to the charger plug (1).
15.22 Replacing headlamp bulbs
Bulb designation:
12V 6W BA9s
● Open the engine hood. (Ö 15.3).
Avoid damage to the machine!
Never charge the battery when the
engine is running.
Only the STIHL ACB 010 battery
float charger or the STIHL ADL 012
diagnostic charger may be
connected to the charger plug.
Other chargers, particularly those
with a higher charging current, can
damage the machine.
In order to charge the battery using
another chargers, it must first be
removed.
When replacing defective lamp
bulbs, always use 12V bulbs rated
at 6W.
