TS 440
English
35
Removing an abrasive cutting wheel
N Use the combination wrench to
loosen and remove the hexagon
head screw (3)
N Remove the front thrust washer (4)
from the shaft together with the
abrasive cutting wheel
Mounting a new abrasive cutting wheel
N Install the new abrasive cutting
wheel (5)
NOTICE
Note the arrows indicating the correct
direction of rotation on diamond cutting
wheels. Always mount a wheel so that it
turns in the direction indicated by the
arrow.

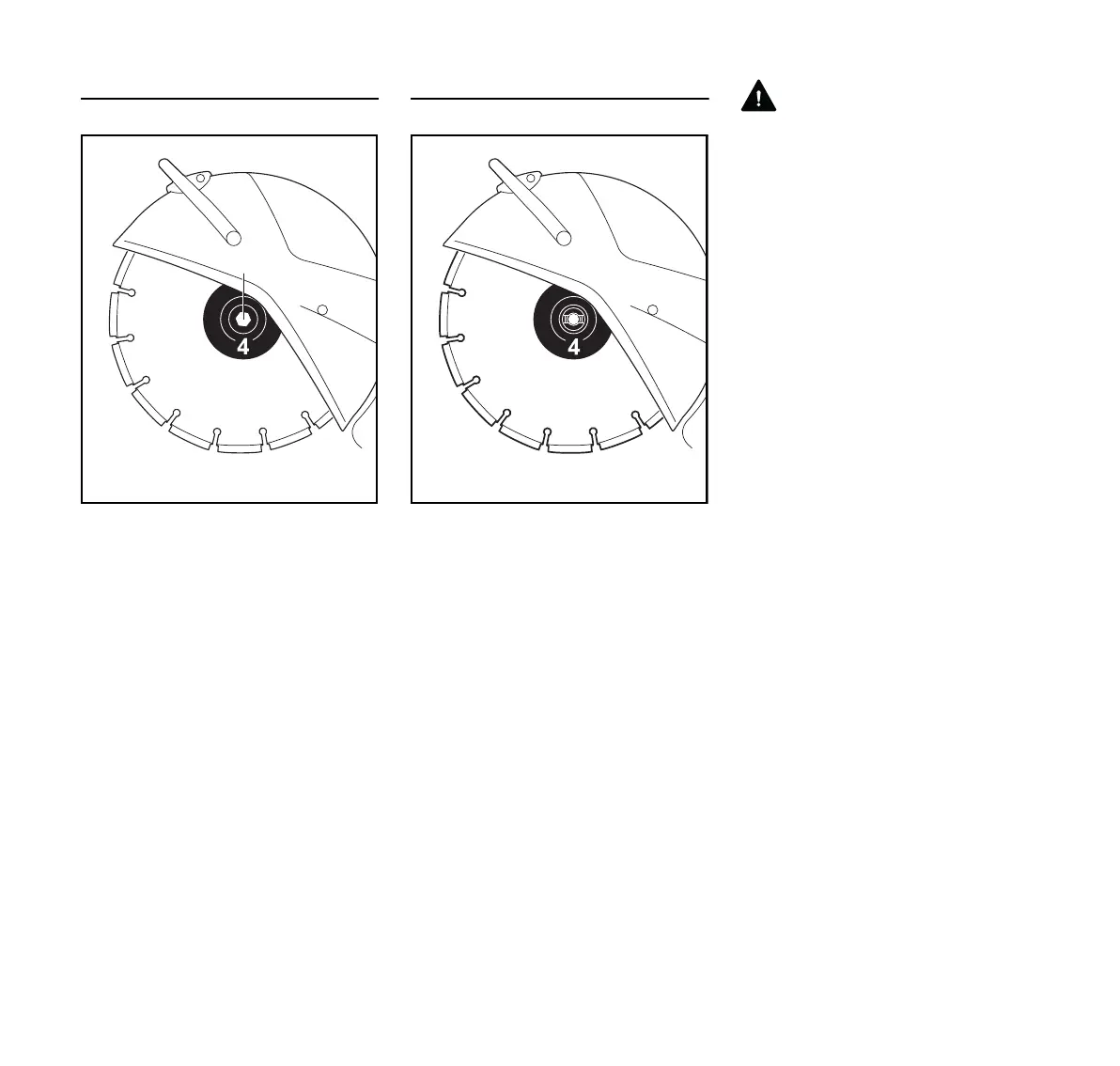

N Installing the front thrust washer (4).
The prongs of the front thrust
washer (4) must engage in the
grooves of the arbor shaft
N Screw in the hexagon bolt and
tighten it with the combination
wrench – if using a torque wrench,
refer to the "Specifications" for the
proper tightening torque
N Remove the locking pin from the
V-belt guard
WARNING
Never mount two abrasive cutting
wheels at the same time. The uneven
wear creates a risk of shattering or
breaking a wheel, as well as loss of
control, increasing the risk of severe
personal injury or death.
3
0000-GXX-4749-A0
0000-GXX-4750-A0
5
