Indicator light

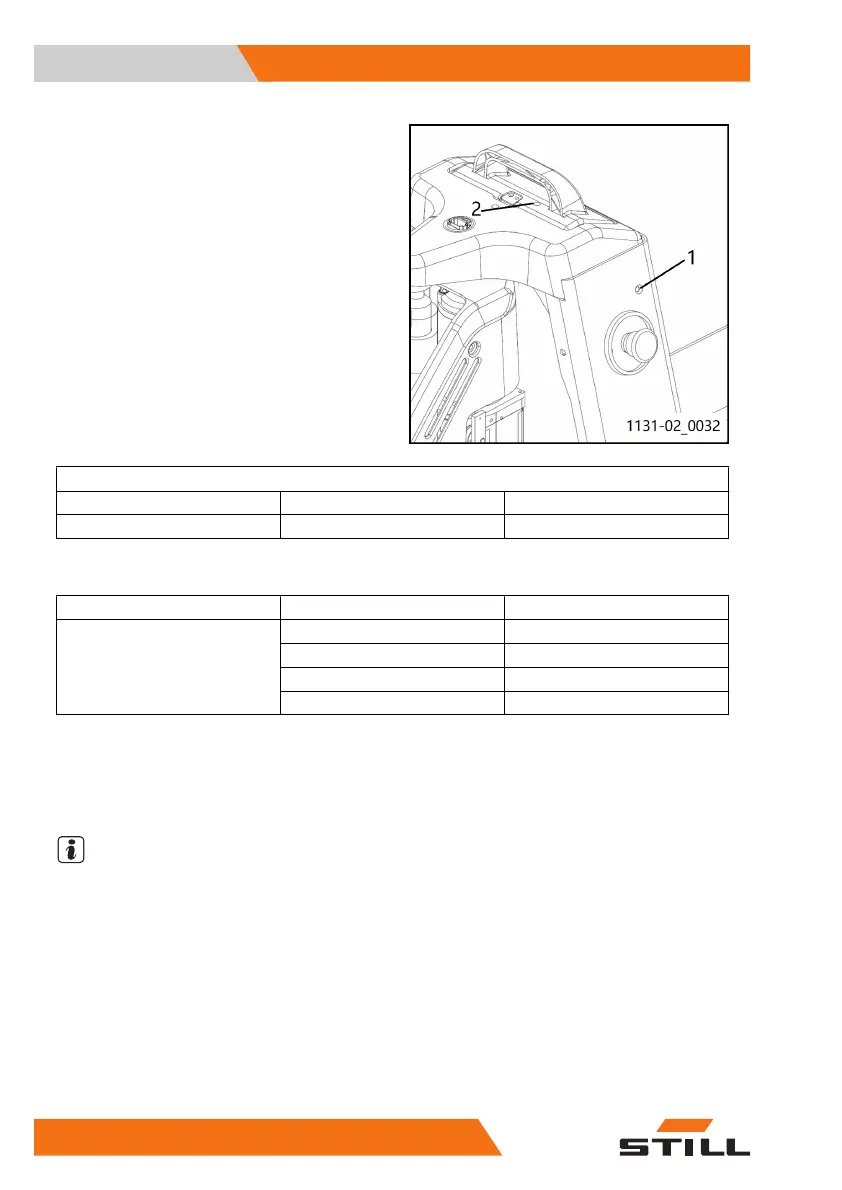

The charging indicator (1)displays the follow-
ing different states:
Charging indicator
Display Description Malfunction analysis
Red light remains lit Charger is charging Normal status
Power display light (2)normal status display:
Name
LED
colour Parameter value
Remaining charge on standard
battery
Green 60-100%
Yellow 30%-60%
Constantly illuminated in red 15-30%
Flashing red 0-15%
If the control unit detects a battery malfunc-
tion, the power display light (2)will flash with
an error code until the malfunction is elimina-
ted.
NOTE
Please see the chapter "Troubleshooting" ,
This chapter is intended to help users identify
and eliminate simple faults or problems
caused by operational errors.
