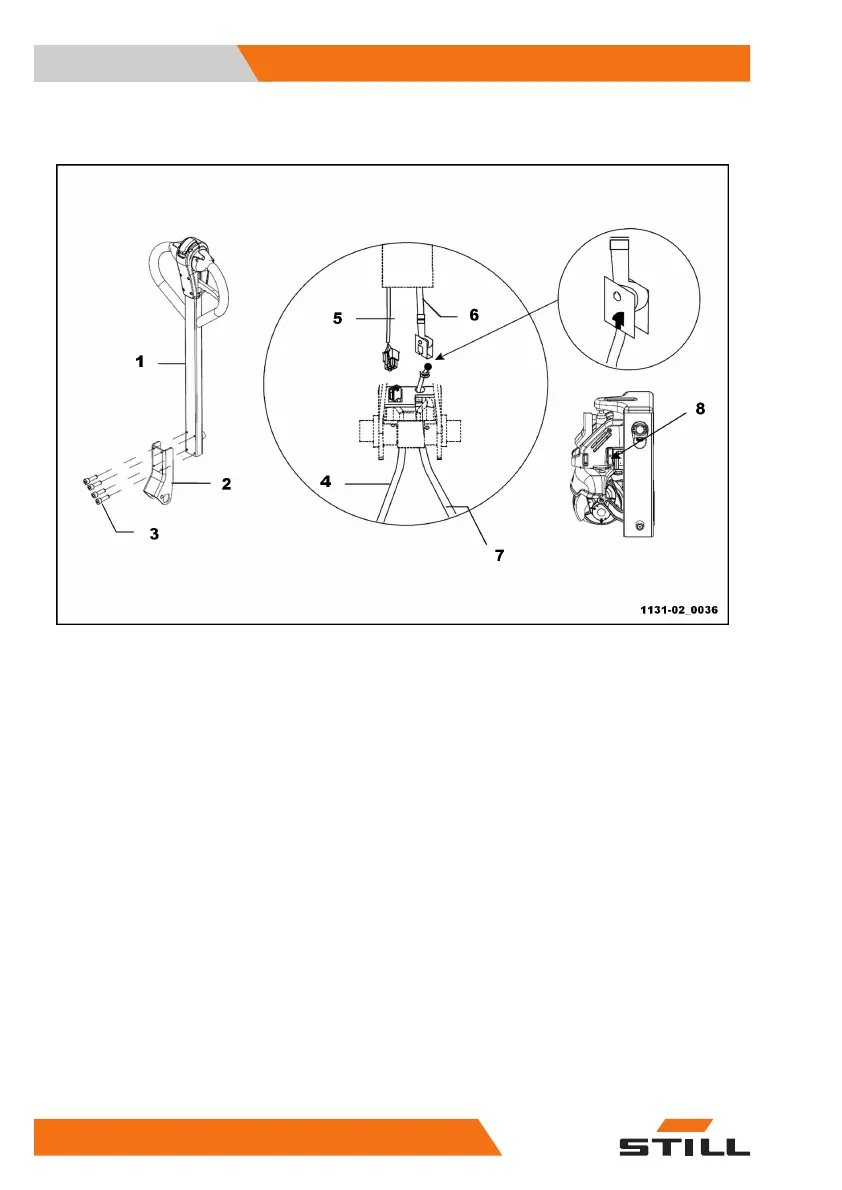

Handle and handle lever installation
Control handle
Bracket
Screw
Controller wire
1
2
3
4
Bend wire
Steel wire I
Steel wire II
Hand-operated value
5
6
7
8
– Plug the connector of bend wire(5) into con-
troller wire(4).
●
First, touching hand-operated value(8).
●
The steel wire II(7)rising up buckle end of
the steel I(6)into the steel wire II(7)from
manual.
●
Release the steel wire II(7) and tighten the
adjust screw(3).
Operation
4
Handle and handle lever installation
60 5001 801 1532 EN - 10/2021 - 03
