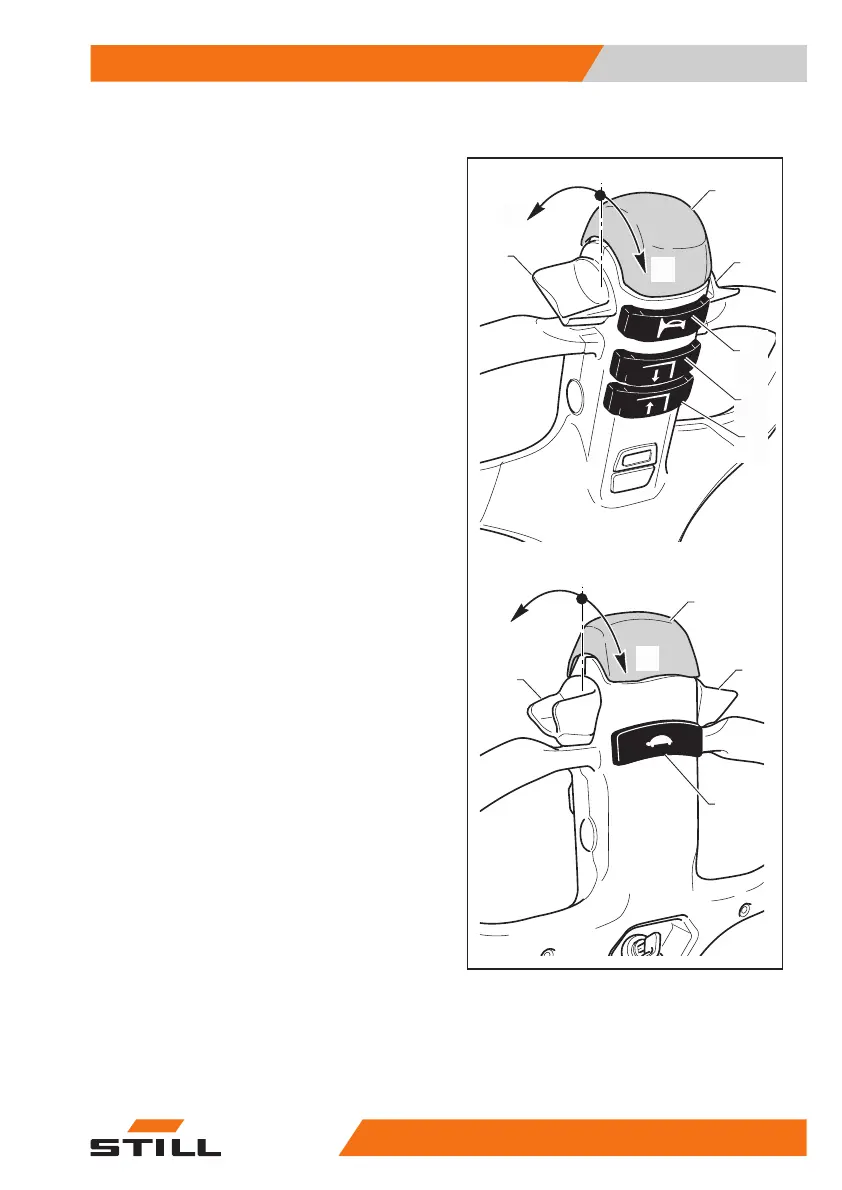

Tiller controls
Anti-crush button (1)
●
Pressing the button (1) while the truck is
travelling towards the operator will reverse
the direction of travel and, after six sec-
onds, stop the truck.
●
If the button (1) is released after the direc-
tion of travel is reversed the truck will stop.
Traction control throttle (2 - 3)
●
When the throttle (2 -3) is turned in direction
(A), the truck starts moving in the direction
of the fork arms.
●
When the throttle (2 -3) is turned in direction
(B), the forklift starts moving in the direction
of the operator.
●
The truck speed increases according to the
angular position of the throttle.
●
Releasing the throttle causes braking and
subsequently the stopping of the truck.
Fork lowering button (4)
●
Press push-button (4) to lower the fork
arms; when the push-button is released, the
fork arms will stop in the position attained.
Fork raising button (5)
●
Press push-button (5) to raise the fork
arms; when the push-button is released, the
fork arms will stop in the position attained.
●
The fork lifting pushbutton (5) is active only
when the tiller is angled to the working posi-
tion.
Horn button (6)
●
Press push-button (6) to operate the horn.
This device allows the driver to signal his
presence when necessary.
Slow-speed button (7) (optional)
●
The forklift is equipped with the optional "till-
er always active" pushbutton (7).
●
Keeping the button (7) pressed while turn-
ing the throttle (2 - 3) activates the slow
speed only if the tiller is in vertical position.
●
Keeping the button (7) pressed while press-
ing the fork lifting button (5) activates fork
lifting only if the tiller is in vertical position.
●
The button (7) does not work if pressed
when the tiller is inclined.
