Fuse replacement
●
Turn off the truck and perform the prelimi-
nary maintenance operations.
CAUTION
Before replacing the fuse, eliminate the cause that
led to its blowing. The blown fuse must only be re-
placed with a fuse of the same amperage. Do not
tamper with the truck's electrical system.
●
Access the fuses as indicated in the "
Inter-
nal Accessibility
" section.
Service fuses (1) and (2)
●
Remove the cover and replace the blown
fuse, then replace the cover.
Power fuses (3) and (4)
●
Loosen the screws, replace the fuses and
retighten the screws.

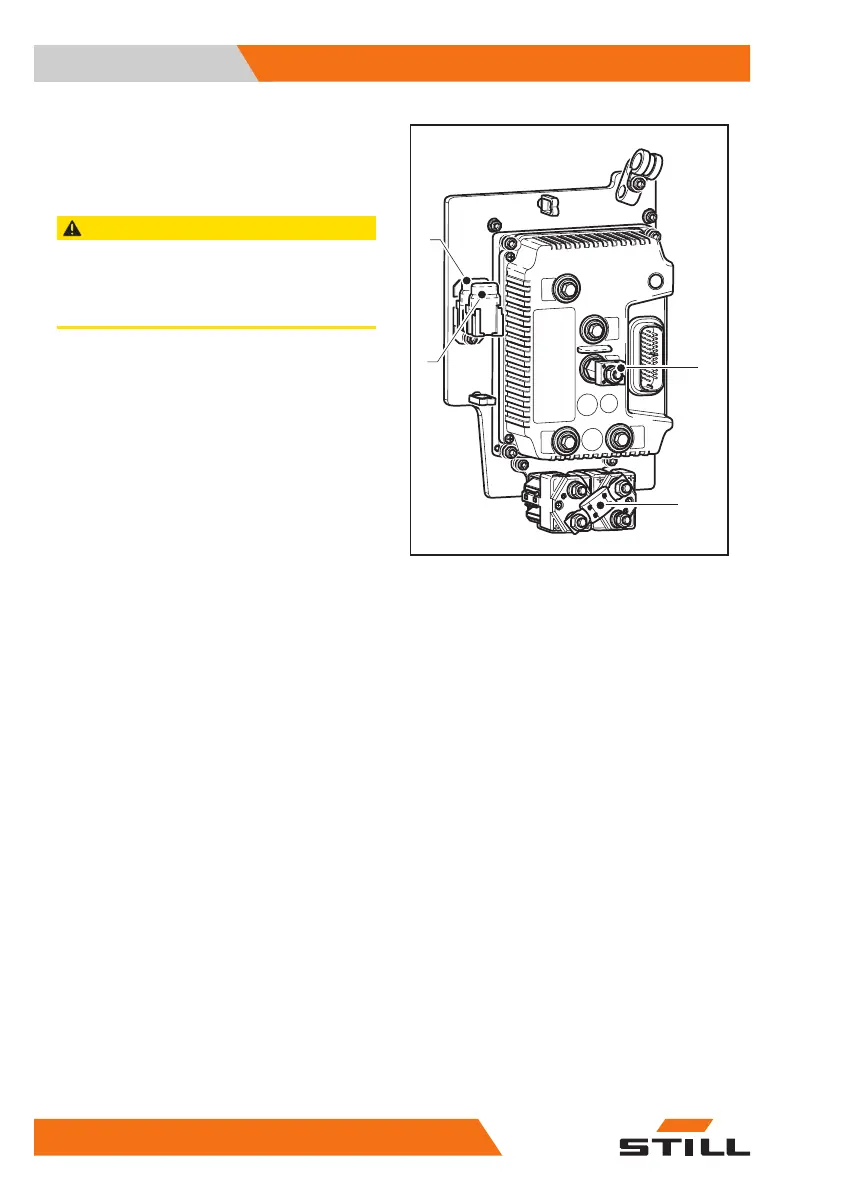

Fuse values
●
(1)
Fuse = 7.5 A
●
(2)
Fuse = 5 A
●
(3)
Traction motor protection fuse = 200 A
●
(4)
Lifting motor protection fuse = 150 A
2
V
U
-B
M
1837
1
2
3
4
Maintenance
5
Maintenance as required
68 45628043302 EN - 11/2021 - 07
