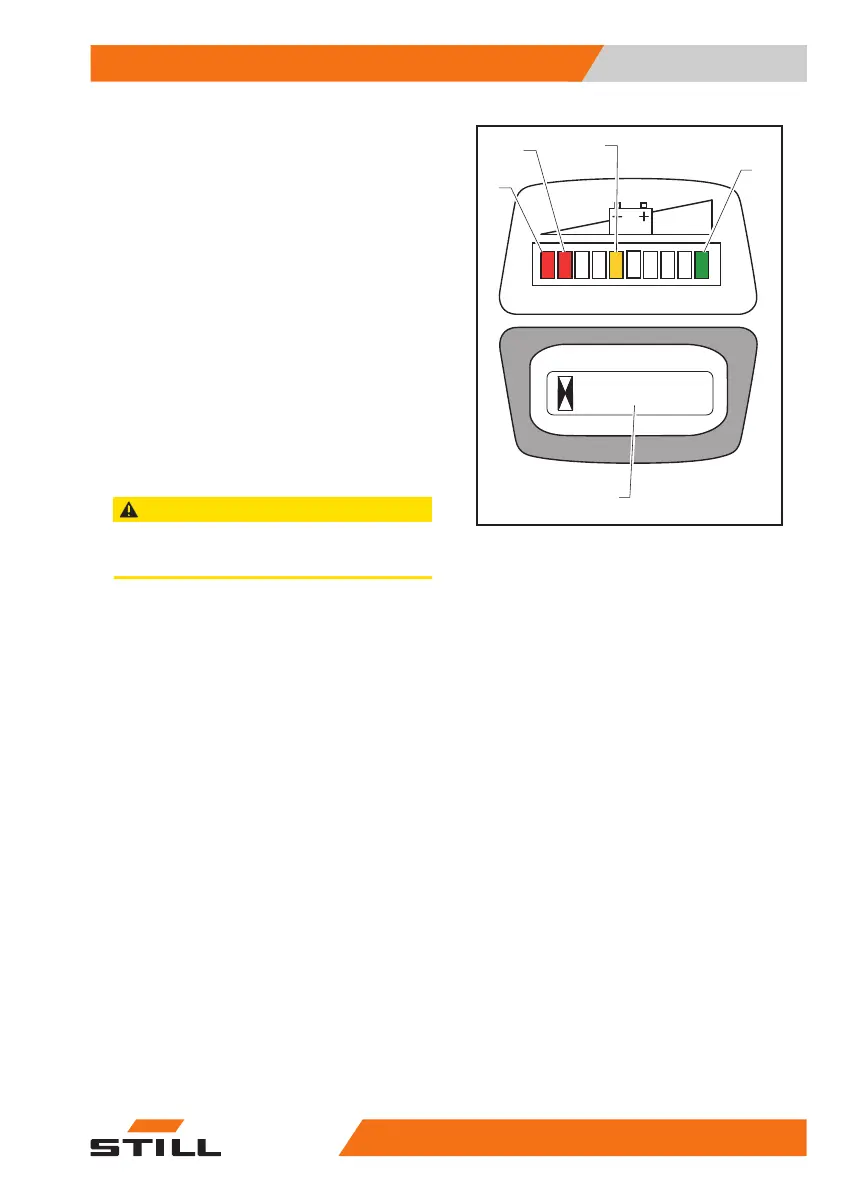

Battery status indicator and hour
meter
Battery charging status indicator
●
Indicates the battery charge level; it is sub-
divided into ten sectors with respective col-
oured LEDs.
●
When the battery is 100% charged, LED
1
remains lit up.
●
As the battery discharges, the LEDs light up
one at a time from right to left, starting from
LED
1
, which indicates the completely
charged battery status.
●
At 50% charged, LED
2
lights up
●
When the battery is 20% charged, LEDs
3
and 4
flash alternately.
At this discharge
level, lifting is blocked.
CAUTION
Charge the battery to at least 30% charged; below
this level the truck will not lift.
Hour meter (5)
●
Indicates the actual forklift operation time,
expressed in hours.
●
When the hour meter is working, the hour-
glass flashes; five numbers plus one deci-
mal digit are displayed. The hour meter is
progressive and starts at zero.
N
?
OM1766
4
3
2
1
12345.6
5
Knowledge of the truck
3
Instrumentation and controls
2945628043302 EN - 11/2021 - 07
