The capacity plates indicate the following:
●
The heights shown on the plates,
h=1020 mm (illustration 2485) or
h=1800 mm (illustration 2483), are custom-
ised according to the truck purchased and
indicate the maximum height that the forks
can reach with the straddles fully raised
There is a certain tolerance with the height
values indicated due to the wear of the
components and to the geometric tolerance
of the individual components of the truck
●
When carrying two loads, one on the forks
and one on the straddles, the maximum
capacity of the truck is 2000 kg (Qmax)
●
The load placed on the forks must be lighter
than or at most equal to the weight of the
load placed on the straddles (Q1≦Q2)
●
The maximum permissible load that can be
carried is 1000 kg on the forks and 1000 kg
on the straddles (Q1+Q2=2000 kg max.)
●
Do not change the position of the centre of
gravity beyond the maximum permitted lim-
its
- Height 600 mm and depth 765 mm from
the fork face, for the load placed on the
forks.
- Height 600 mm and depth 1965 mm from
the fork face, for the load placed on the
straddles.
–

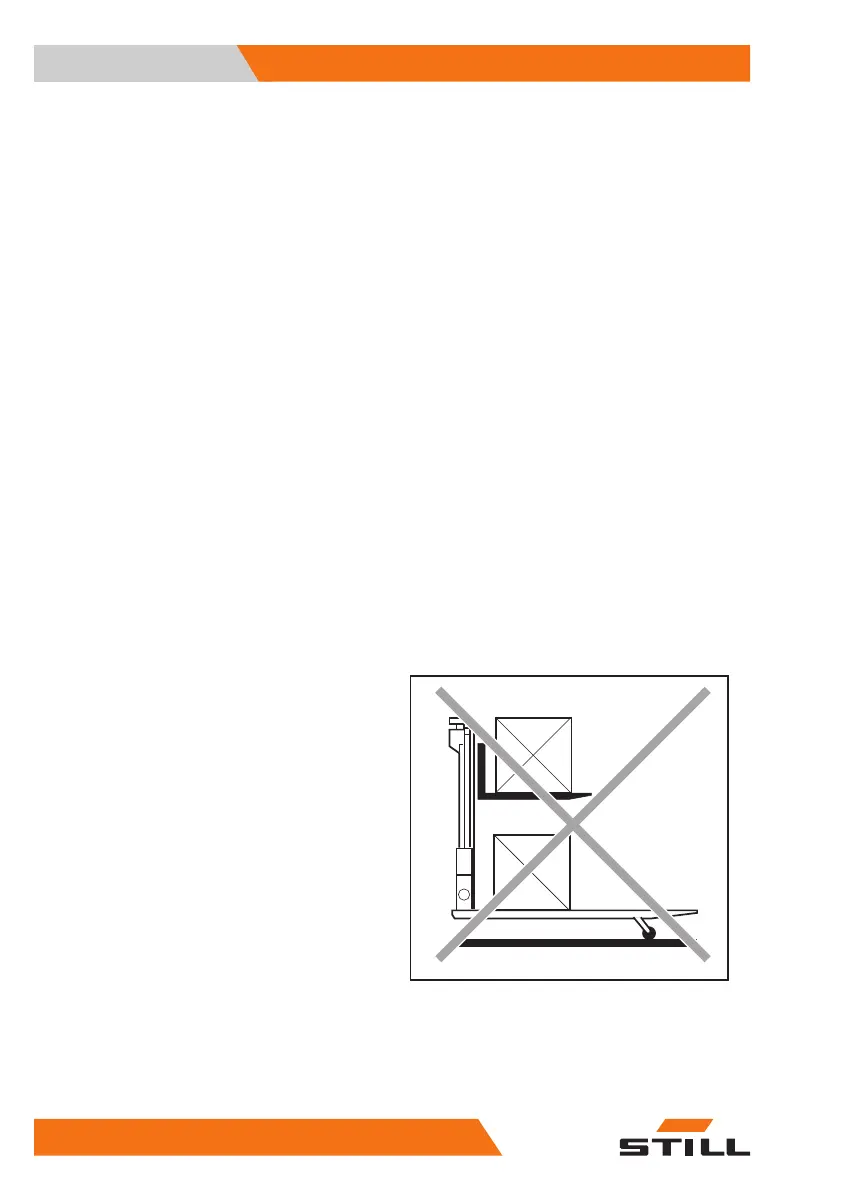

Forbidden!
There must be no loads under
the forks. It is strictly prohibited to carry two
loads as shown in the illustration to the
side.
2260
Overview
3
Markings
64 45878043344 EN - 11/2021 - 12
