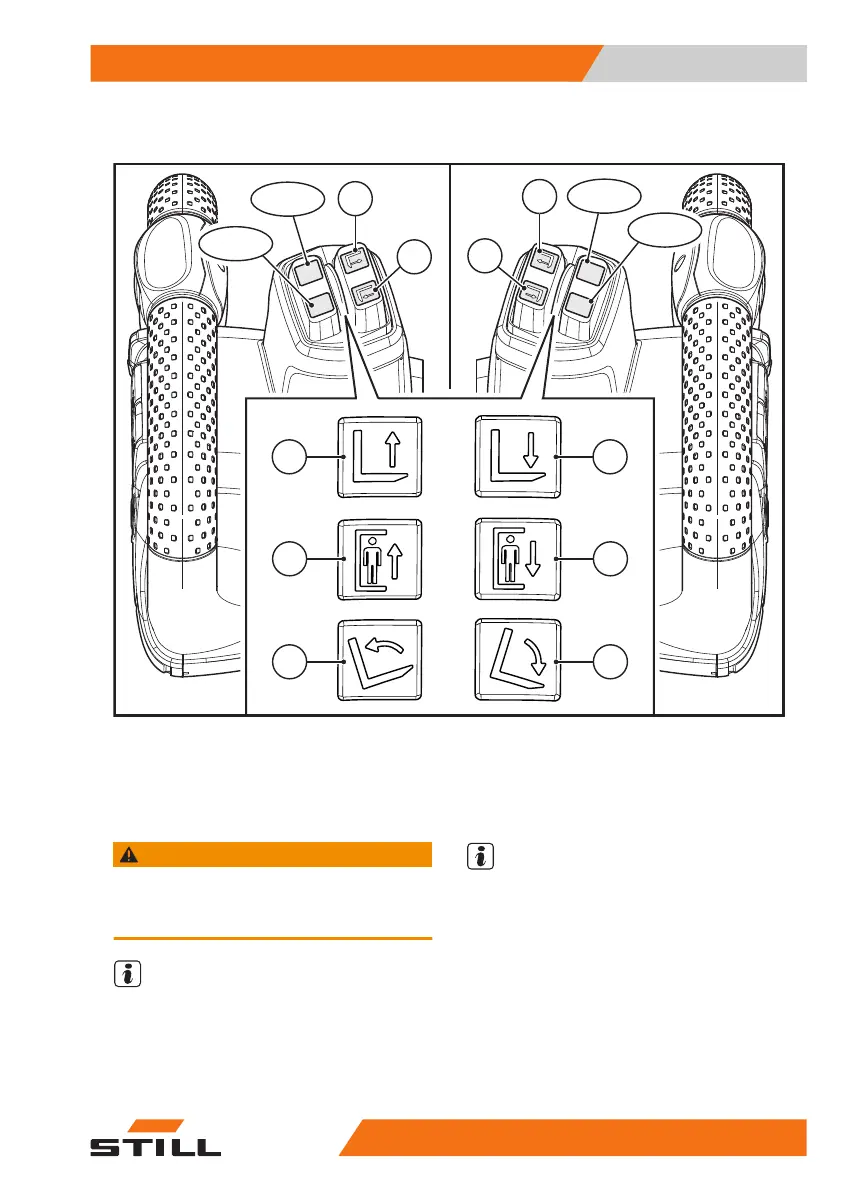

Steering wheel controls - Part 2
W10370
16-18
14
15
14
15
14
16
15
17
17-19
17-19
16-18
18 19
Fork lifting button (where present)
Fork lowering button (where present)
Adjustable operator step plate lifting button
(where present)
14
15
16
Adjustable operator step plate lowering but-
ton (where present)
Fork upward tilt button (where present)
Fork downward tilt button (where present)
17
18
19
WARNING
The buttons in the illustration may have different po-
sitions depending on the version. Pay attention to the
markings on the button itself.
NOTE
The following controls are active with the truck
switched on and the operator in the correct
"working position", only if the control has not
already reached the end position.
NOTE
The speed of movement of the forks and the
platform is proportional to the pressure exer-
ted on its control button.
(14) Fork lifting button (where present)
●
When the button is pressed, the forks lift to
the maximum height
●
Fork movement can be stopped at any time
by releasing the button The forks will stop in
the position attained.
