Still OPX 25 PLUS - Capacity Plate (OXV)

Capacity plate (OXV)
DANGER
The values indicated on the capacity plate refer to
compact and homogeneous loads and must not be
exceeded — otherwise the stability of the truck and
the load-bearing capacity of the structures may be
compromised.

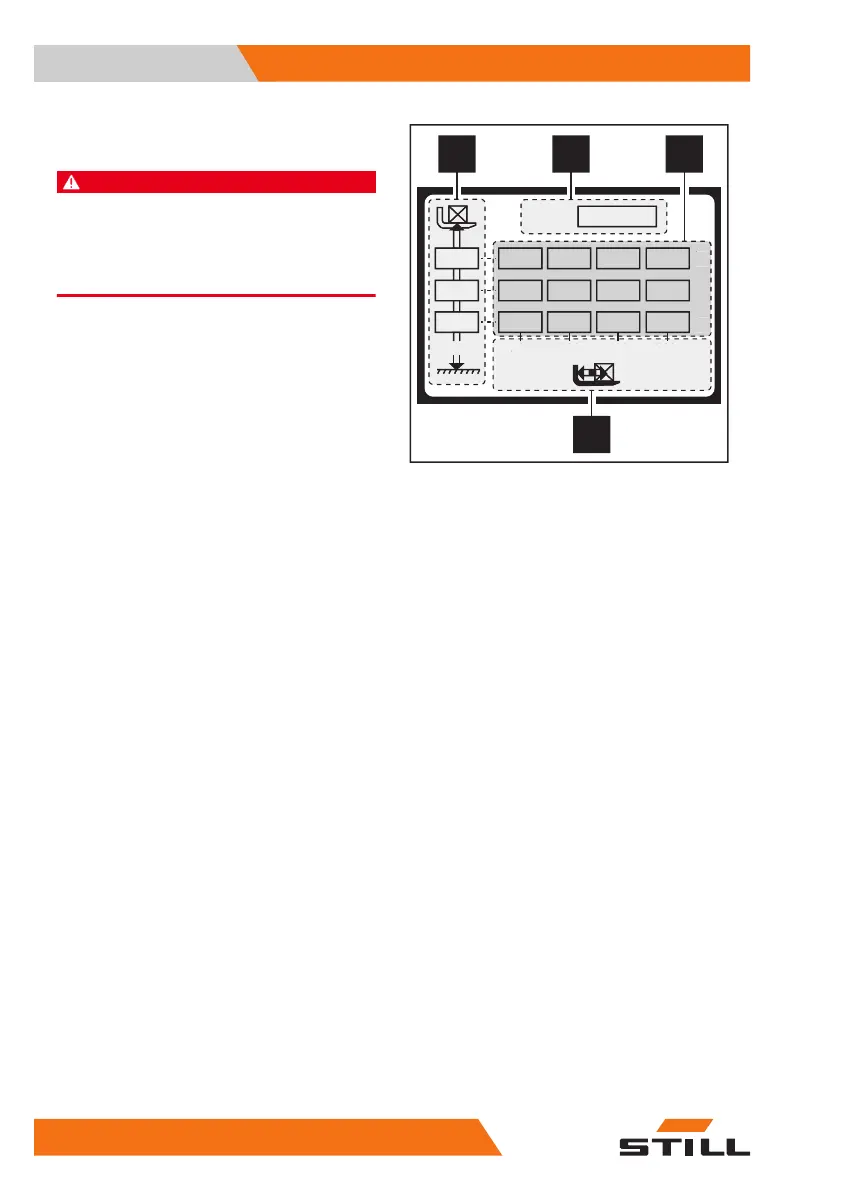

The plate contains the following information:
●
A = maximum lift height of the forks (mm)
●
B = truck model
●
C = maximum permissible load on the forks
(kg) depending on the distance of the forks
from the ground and the centre of gravity of
the raised load.
●
D = distance from the centre of gravity of the
load on the forks to the fork carriage (mm)
