Still OPX 25 PLUS - OPX-L20 Capacity Plate

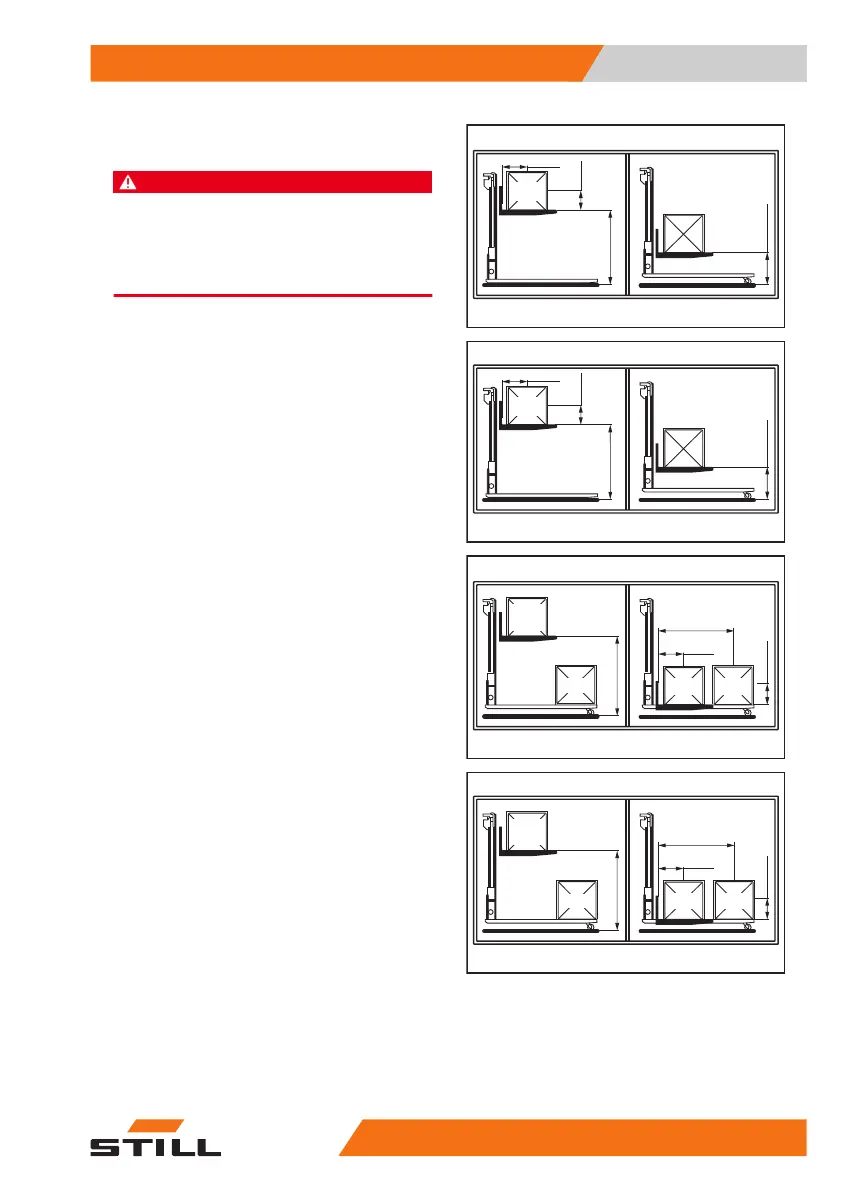

OPX-L20 capacity plate
DANGER
The values indicated on the capacity plate refer to
compact and homogeneous loads and must not be
exceeded — otherwise the stability of the truck and
the load-bearing capacity of the structures may be
compromised.
– Using the truck with a single load on the
forks
.
The capacity plates indicate the following:
●
The heights shown on the plates,
h=890 mm (illustration 2484) or h=1670 mm
(illustration 2482), are customised accord-
ing to the truck purchased and indicate the
maximum height that the forks can reach
with the straddles fully lowered There is a
certain tolerance with the height values indi-
cated due to the wear of the components
and to the geometric tolerance of the indi-
vidual components of the truck
●
With the straddles fully lowered and the
forks at the maximum height from the
ground, the maximum capacity of the truck
is 1000 kg
●
With the straddles raised, it is prohibited to
reach heights greater than 420 mm from the
ground with the forks As a result, with the
straddles raised, the maximum permissible
fork height is 420 mm from the ground.
●
Do not change the position of the load's
centre of gravity beyond the maximum per-
mitted limits (height 600 mm and depth
765 mm from the fork face)
– Capacity plate for
transporting two loads
(double pallet stacker)
.
1000 kg
2484
h=890 mm
600 mm
765 mm
h ≤ 420 mm
1000 kg
2482
h=1670 mm
600 mm
765 mm
h ≤ 420 mm
Q1
max 1000 Kg
Q1+Q2
max 2000 Kg
Q2
1000 Kg1000 Kg
Q1≤Q2
765 mm
1965 mm
600 mm
2485
h=1020 mm
Q1
max 1000 Kg
Q1+Q2
max 2000 Kg
Q2 1000 Kg1000 Kg
Q1≤Q2
765 mm
1965 mm
2483
h=1800 mm
600 mm

Overview
3
