UM0718 How to connect the demonstration board with the GUI
Doc ID 15846 Rev 1 15/31

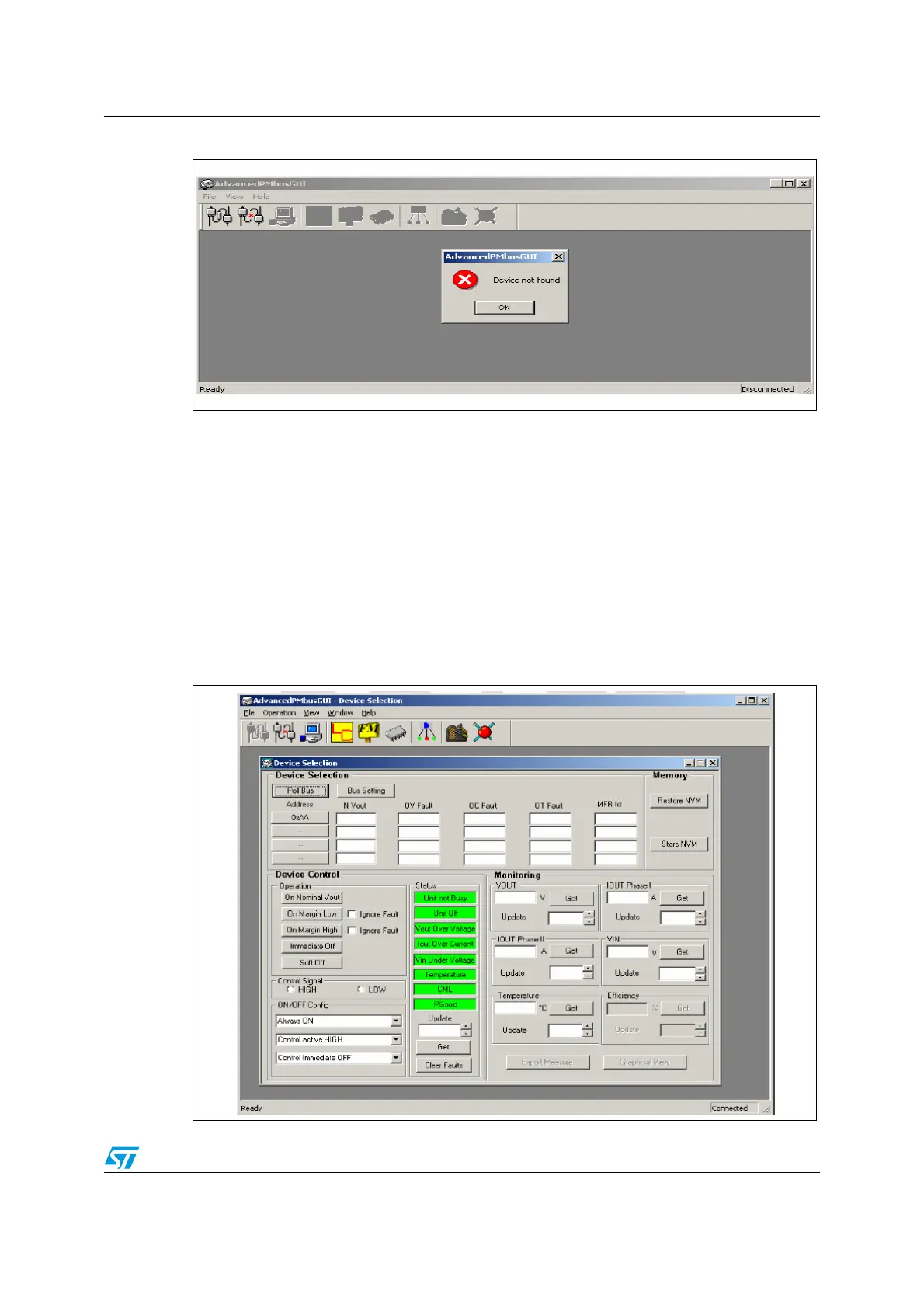

Figure 13. Error in connection
2.2 Identification of PMBus slaves and options configuration
2.2.1 Polling the connected slaves
After connecting the interface board, the GUI should poll the bus to identify the connected
slaves.
In the polling procedure the GUI scans the entire slave address range except 0x18 which is
the alert response address. As soon as the polling completes, the GUI lists the connected
slave addresses in the device selection window. The GUI can support four simultaneous
PMBus slaves.
Figure 14. List of connected slaves
