UM0718 Advanced PMBus GUI description
Doc ID 15846 Rev 1 25/31

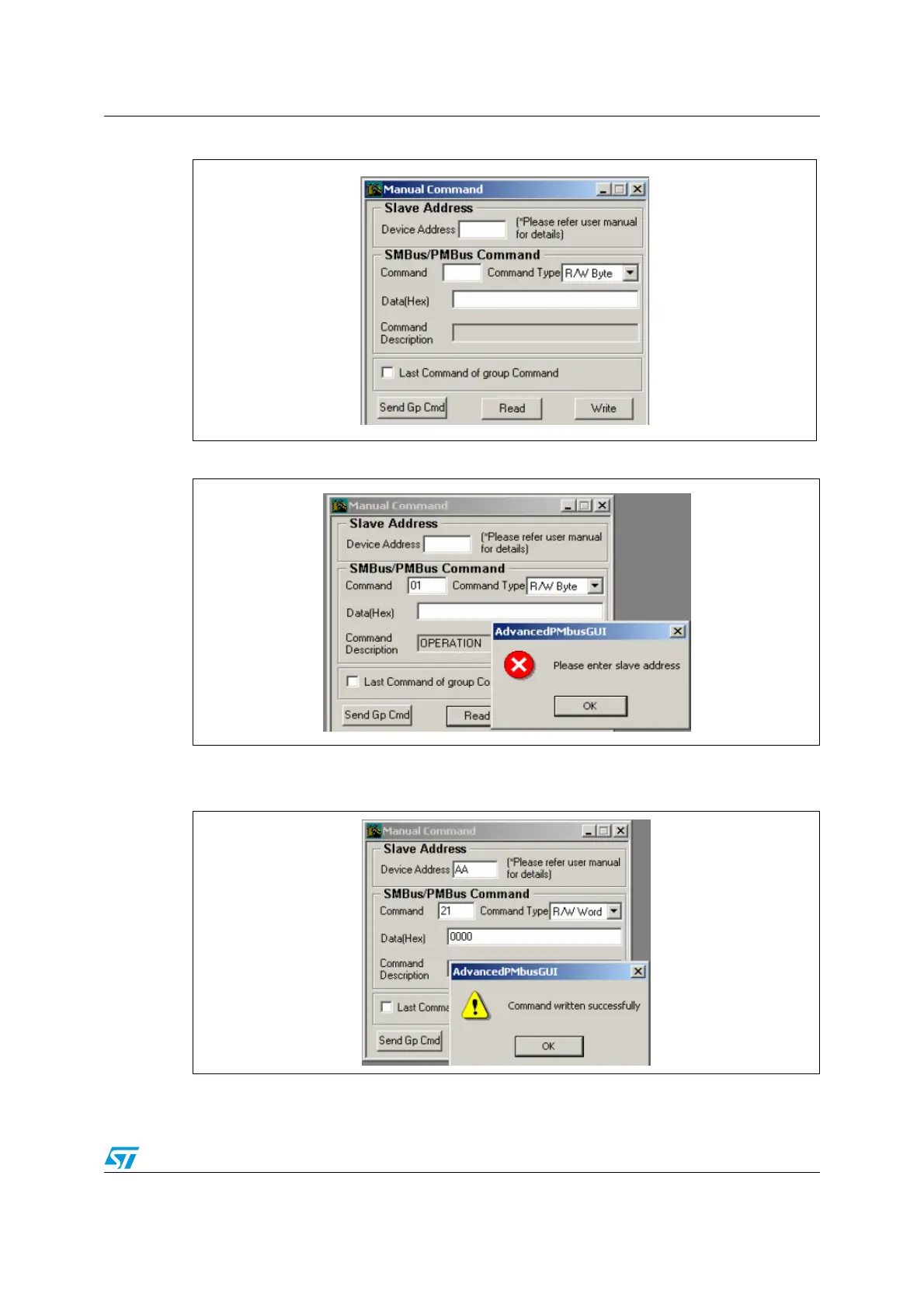

Figure 26. Manual command window
Figure 27. Error in case of no slave address
Figure 28 shows an example of the data writing process through the PMBus.
Figure 28. Write operation
