3.2 Device setup window
The device setup window can be opened by either clicking on the device setup icon or by
following Operation ->Device Setup Window.

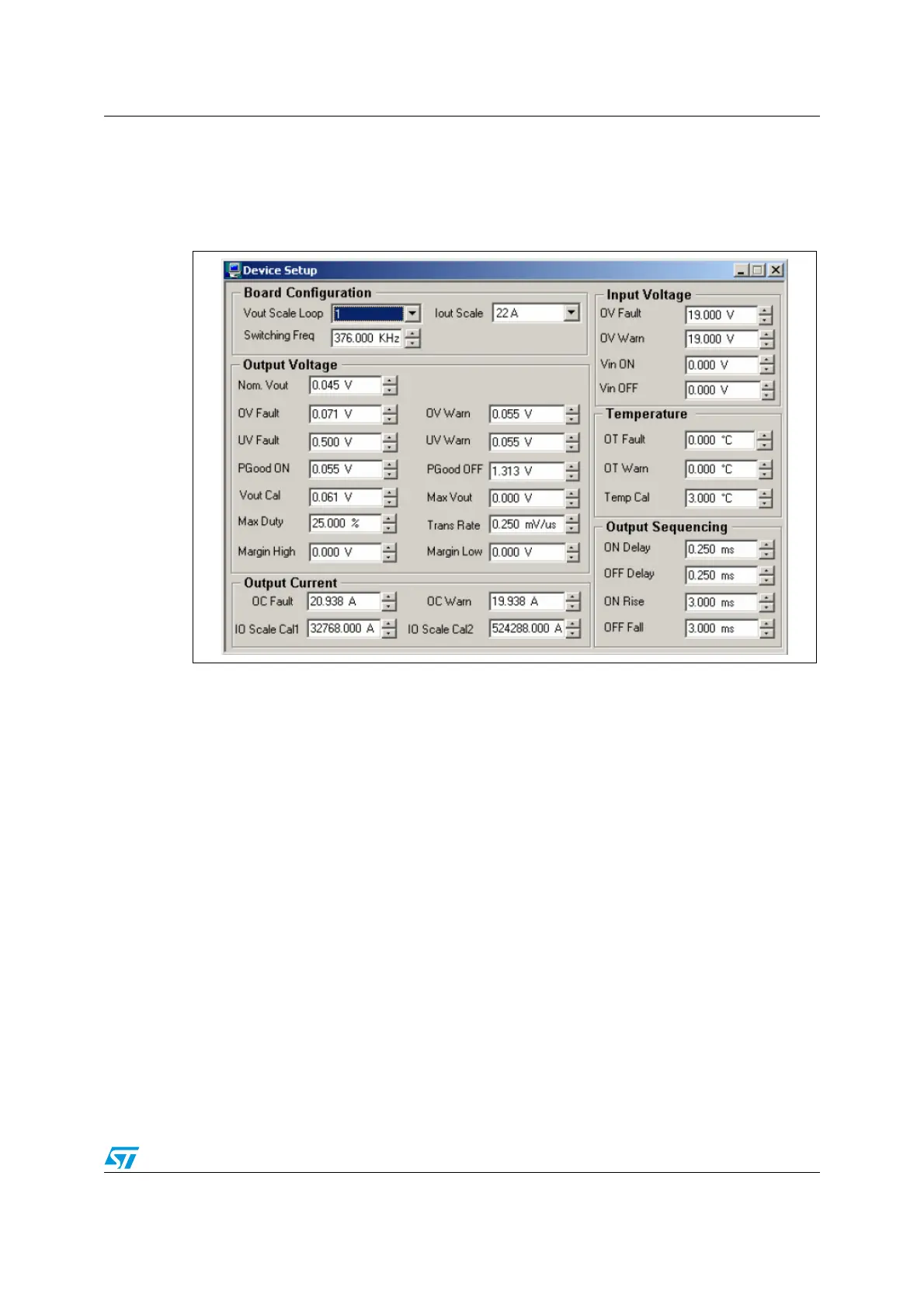

Figure 22. Device setup window
At the time of opening the window, all the parameters are read from the device, and they can
then be increased or decreased by the user. Here, the resolution for voltage related
commands is equal to 15.625 mV * VOUT_SCALE_LOOP, while for output current fault and
warn limits the resolution equals IOUT_SCALE_MFR / 64. For input voltage related
commands the resolution is 62.5 mV.
