STONEX R180 - Refraction and Earth Curvature Correction

Stonex R180 – User Manual 54
hPa
hPa
For Example:
The air temperature is +15 ℃
The atmospheric pressure is 1013 hPa
From the chart, the atmospheric correction is about -5 ppm

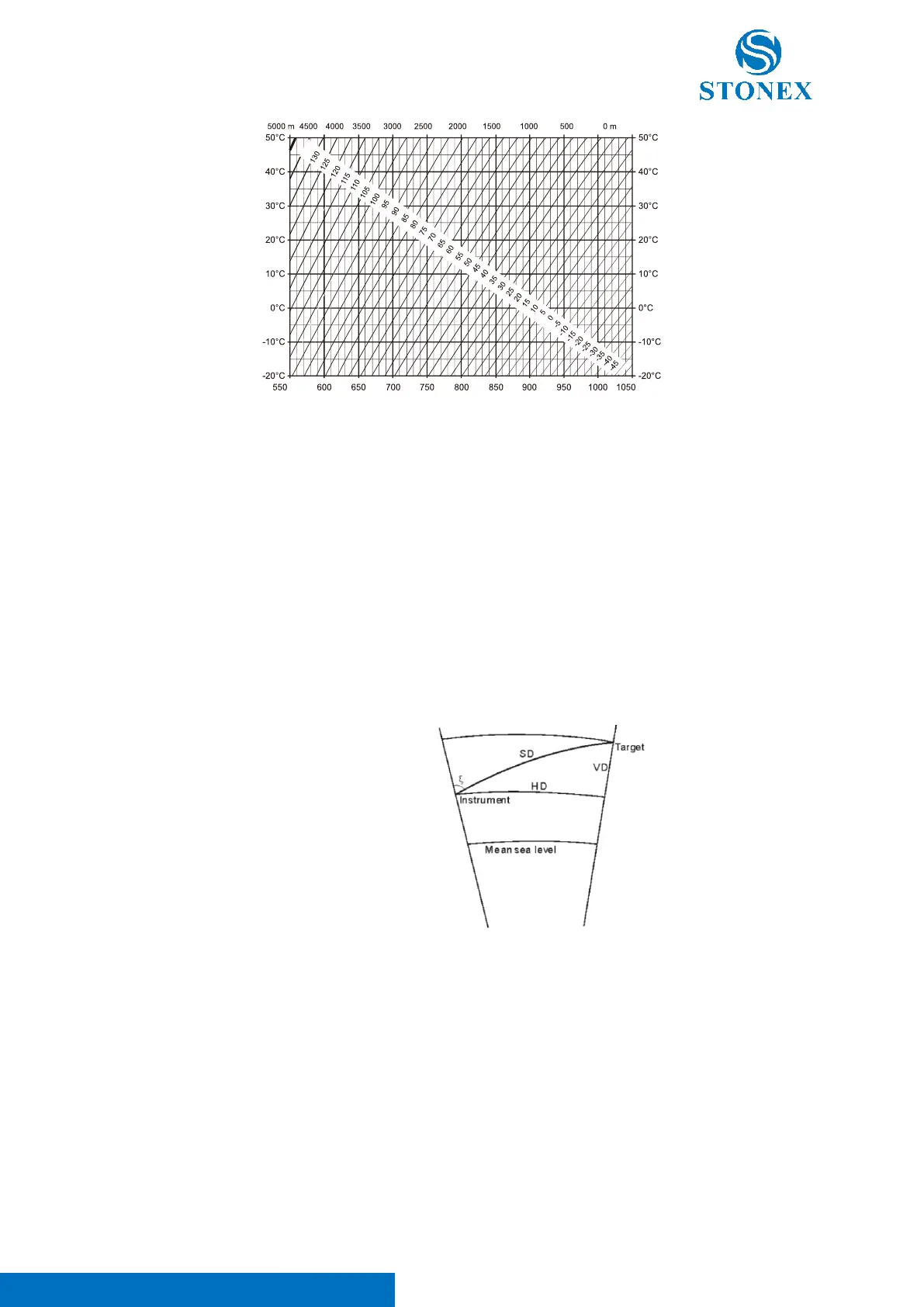

12.2. Refraction and Earth Curvature Correction
Considering the correction of refraction and earth curvature for distance measurement, the formula for
SD, HD and VD applied in the instrument are as followings:
HD = Y - A × X × Y
VD = X + B × Y
2
HD: corrected horizontal distance
VD: corrected vertical distance
Y = SD × │sin ξ │
X = SD × cos ξ
SD: corrected slope distance
ξ： the ZA （zenith 0）
A = (1 – k / 2) / R
B = (1 – k / 2) / 2R
k: atmospheric refractive index, default 0.13
R: average radius of the earth 6.37 × 10
6
m
