Stonex S70G GNSS Handheld – User Manual v1.0
24
2.2.5 Static
With the S70G is possible also perform a static session, then post process the
observations and calculate a control point with accuracy.

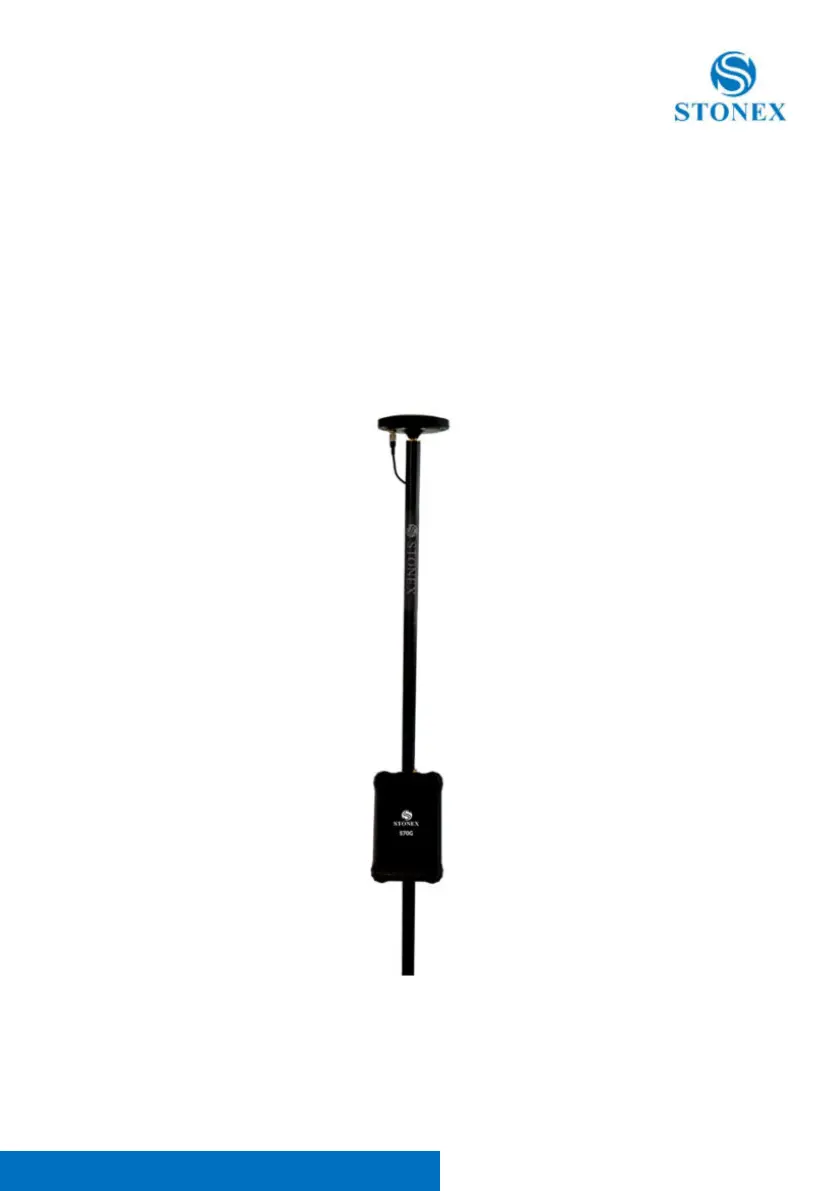

For the Static it is recommended the use of the pole and the external A45
antenna.
This configuration is specific for these kinds of job and for RTK jobs with
accuracy position during the survey or the stake out.
After configured the system, place the rover on the control point.
Then open the working mode and select Rover.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the STONEX S70G and is the answer not in the manual?

STONEX S70G Specifications

General IconGeneral
TypeGNSS Receiver
Initialization Reliability>99.9%
Data Update RateUp to 20 Hz
Operating Temperature-40°C to +65°C
VibrationMIL-STD-810G
Ingress ProtectionIP67
Tilt SensorYes
Battery TypeLi-ion
Charging Time4 hours
ModelS70G
Frequency BandsGPS L1/L2, GLONASS L1/L2, BeiDou B1/B2, Galileo E1/E5b, QZSS L1/L2/L5
Channels336
Static Accuracy Horizontal2.5 mm + 0.5 ppm
Static Accuracy Vertical5 mm + 0.5 ppm
RTK Accuracy Horizontal8 mm + 1 ppm
RTK Accuracy Vertical15 mm + 1 ppm
Code Differential Accuracy0.25 m
Initialization Time10 s
Storage Temperature-40°C to +80°C
CommunicationBluetooth, Wi-Fi, 4G
Data FormatsRTCM 3.3, CMR, CMR+, NMEA-0183
