Stonex S900A GNSS Receiver – User Manual 9
2.2 Settings
The Settings page includes working mode, satellite Settings, device
configuration, NMEA messages, view logs, and configuration sets. You can set
the host mode, satellite system, system parameters, and NMEA message. And
you can view and download the logs as well. Also you could upload, download,
delete and apply the related configuration. Click on a module to display its
details.
2.2.1 Working mode
You can select different work mode to configure, static, rover and base. In
different mode, there are different configuration you can make.

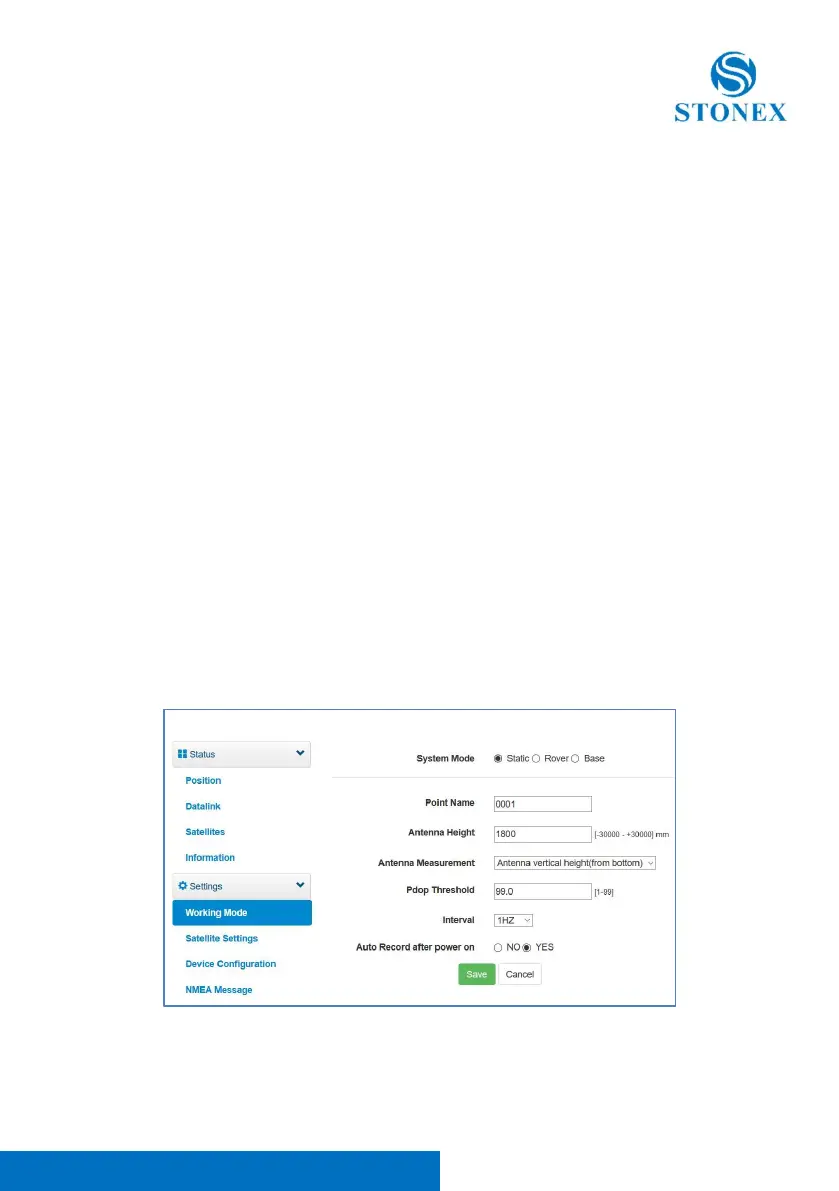

Static Mode
It’s possible input the point name, antenna height, PDOP threshold. And the
antenna measurement and collect interval. These are all the parameters can
be used in static collection.
At last, there are two record options. If you activate auto record, it will collect
data automatic when you power on the receiver.
