Stonex S900A GNSS Receiver – User Manual 19

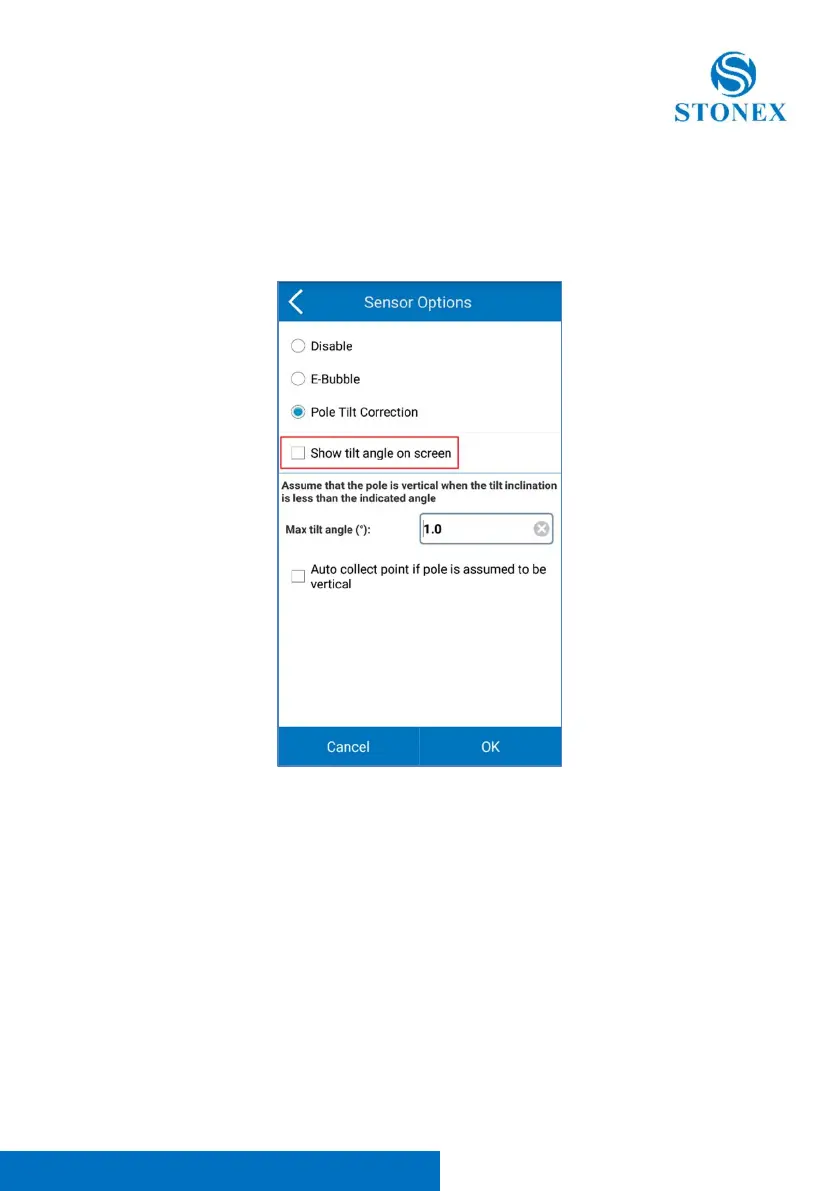

In the same screen, it is possible to ask the software to show on screen the
angle of the tilt angle (in decimal degrees, 0° = true vertical).
To show this information, mark the relative check inside the Sensor Option
menu.
The user can also define the verticality tolerance of the instrument.
That is, the maximum value of the (sensor) tilt angle that the software shall
accept when checking for the pole verticality.
The value is in decimal degrees.
Example: 0.3 means +/- 0.3° from true (local) verticality.
