STRAPEX STB 71/73/75ENGLISH
5.3 Setting the strap width
The tools can be operated with the following strap widths:
● STB 71: 9–10 mm, 12–13 mm (
3
/
8
″,
1
/
2
″)
● STB 73: 12-13 mm, 15-16 mm (
1
/
2
″,
5
/
8
″)
● STB 75: 15-16 mm, 18-19 mm (
5
/
8
″,
3
/
4
″)

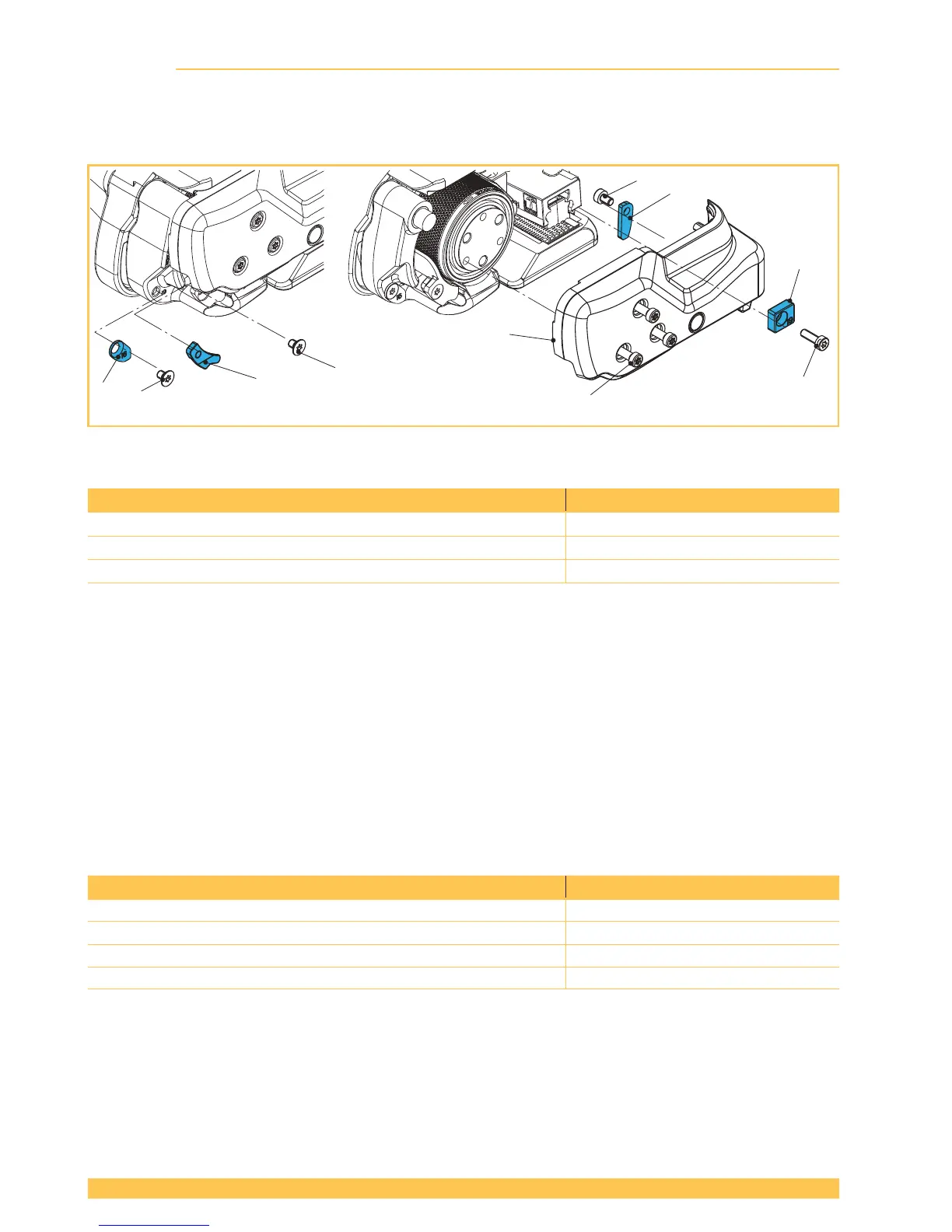

5.3.1 STB 71: Change strap width from 9 mm to 13 mm (
3
/
8
″ to
1
/
2
″)
Required parts Order number
Strap guide front 13 mm (
1
/
2
″) (3) 1832.031.051
Strap guide rear 13 mm (
1
/
2
″) (8) 1832.041.019
Strap guide rear 13 mm (
1
/
2
″) (9) 1832.042.043
► Remove battery from tool. Remove three cylinder screws Torx (6). Lift rocker lever towards the
handle, remove cylinder screw Torx (7) and strap guide rear 9 mm (
3
/
8
″) (8).
► Remove side cover (5).
► Remove counter-sunk screw Torx (2) and strap guide front 9 mm (1).
► Remove counter-sunk screw Torx (4) and strap guide front 9 mm (3). Fit strap guide front 13 mm
(3) (secure counter-sunk screw with Loctite 222).
► Remove cylinder screw Torx (10) and strap guide rear 9 mm (9). Fit strap guide rear 13 mm (9)
(secure cylinder screw with Loctite 222).
► Fit side cover (5) (secure cylinder screw with Loctite 222). Install strap guide rear 13 mm (8).
STB 71: Change from 13 mm to 9 mm (
1
/
2
″ to
3
/
8
″)
Required parts Order number
Strap guide front 9 mm (
3
/
8
″) (1) 1832.031.121
Strap guide rear 9 mm (
3
/
8
″) (8) 1832.041.020
Strap guide rear 9 mm (
3
/
8
″) (9) 1832.042.047
Counter-sunk screw Torx, M4x6 (2) (4) 1912.204.064
► Remove battery from tool. Remove three cylinder screws Torx (6). Lift rocker lever towards the
handle, remove cylinder screw Torx (7) and strap guide rear 13 mm (
1
/
2
″) (8).
► Remove side cover (5).
► Fit strap guide front 9 mm (1) (secure counter-sunk screw with Loctite 222).
STB 75
1
2
3
4
5
6
7
10
9
8
