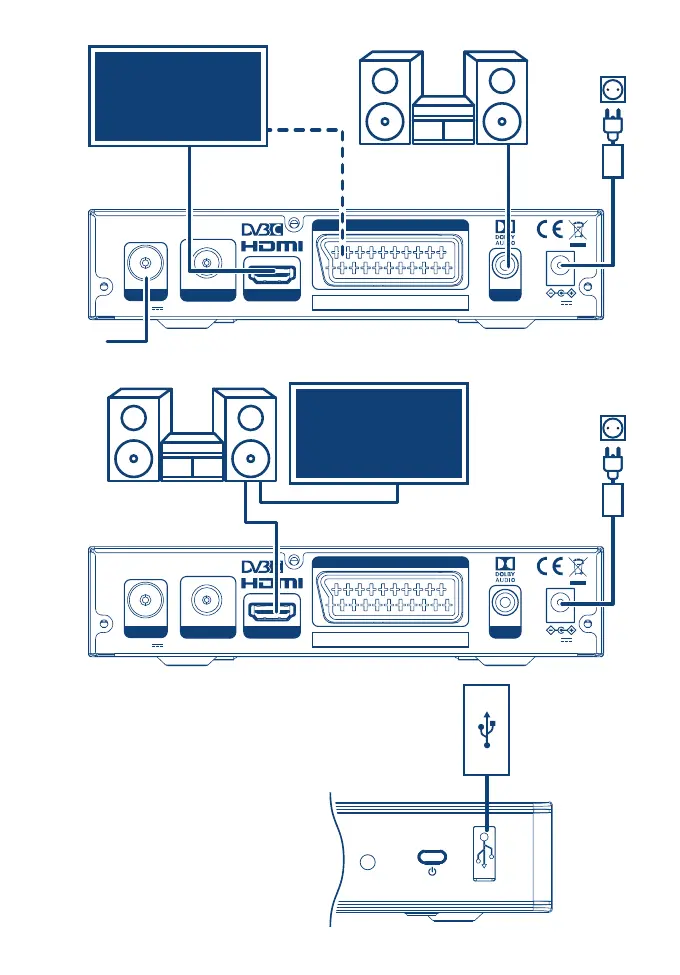

Fig. 6
Fig. 7
Fig. 8
USB
storage device
USB Cable
Digital HD Cable Receiver SRT 3002
Supplied by STRONG Austria
CABLE IN
500 mA max.USB: 5 V
TV SCART
CABLE OUT
COAXIAL
S/PDIF
12 V ,
0.5 A, max. 6 W
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES.
DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
HDMI
HDMI
Cable
SCART
Cable
(optional)
Television
Digital Audio
Amplifier
S/PDIF
Cable
Cable
Broadcast
2 HDMI
Cables
Digital HD Cable Receiver SRT 3002
Supplied by STRONG Austria
CABLE IN
500 mA max.USB: 5 V
TV SCART
CABLE OUT
COAXIAL
S/PDIF
12 V ,
0.5 A, max. 6 W
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES.
DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
HDMI
Digital Audio
Amplifier
Television
