Product Overview

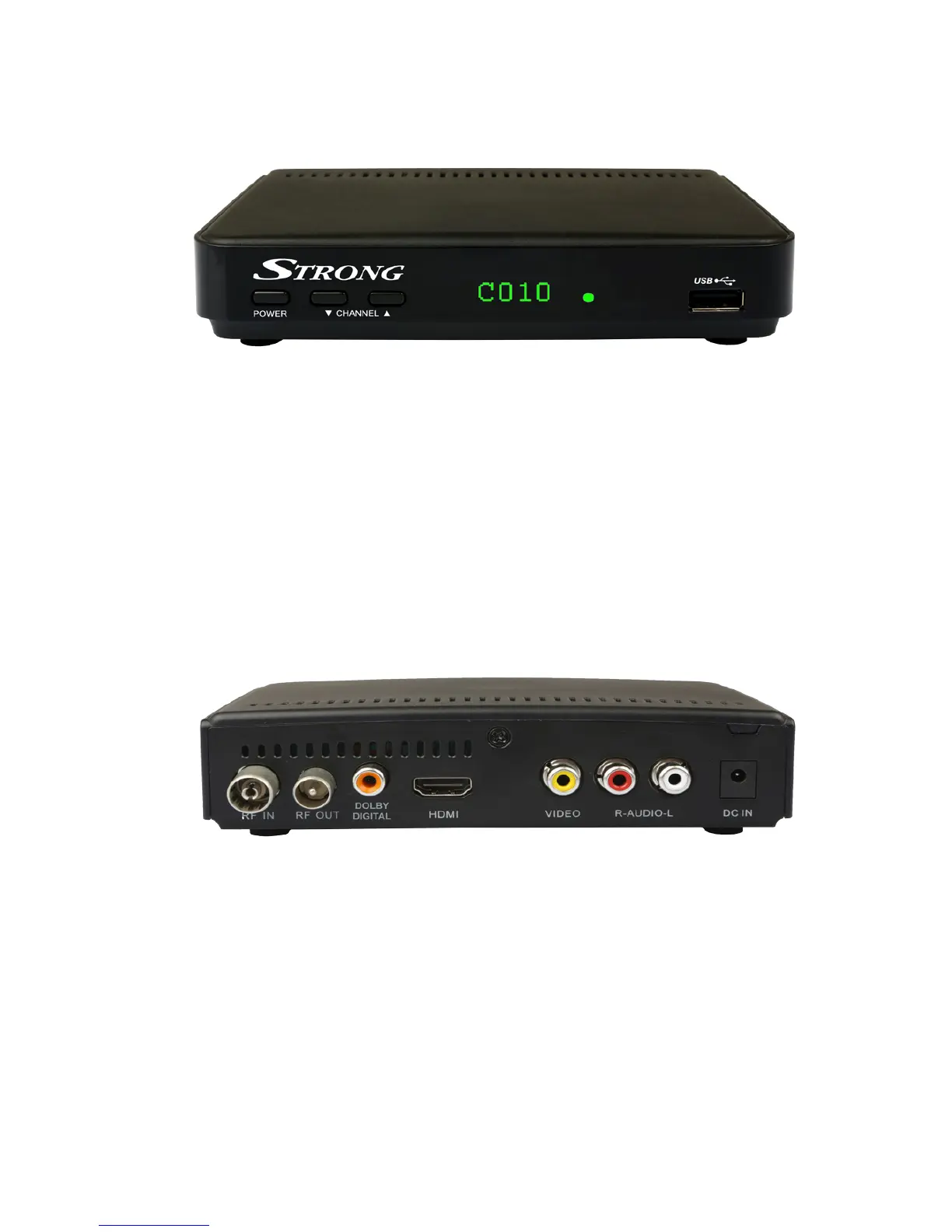

Front Panel
1. Power button : Switch between operation and standby modes.
2. Up & Down Channel: Change channel in viewing mode and
move the cursor up in menu mode
3. Display : It displays channel information. In standby mode it
displays local time.
4. Power /Signal light : Power /signal indicator.
5. USB2.0 : Single USB 2.0 Host Port.
Rear Panel
1. ANT IN : Connect the antenna cable.
2. ANT OUT : Loop out to pass signal through
3. COAXIAL : Digital Audio output (Optical).
4. DV-OUT : Connect to the TV using an HDMI cable
5. AUDIO R/L / VIDEO : Connect to the TV using RCA cabling
6. DC-5V : Connect to the power using power adapter.
*Note: For best results, use HDMI cable and RG6 Quad Shielded antenna cabling
