CONDENSER PACKAGE SLIDE-OUT
-
Pull Out Refrigeration Package
Note: At initial slide-out, it may be necessary to remove compressor pan shipment screws (see illustration
below for location).
Plastic glides are mounted at base to assist in sliding the condenser out for access.
Slide condenser unit out 12 to 18 inches to access high pressure service connection.

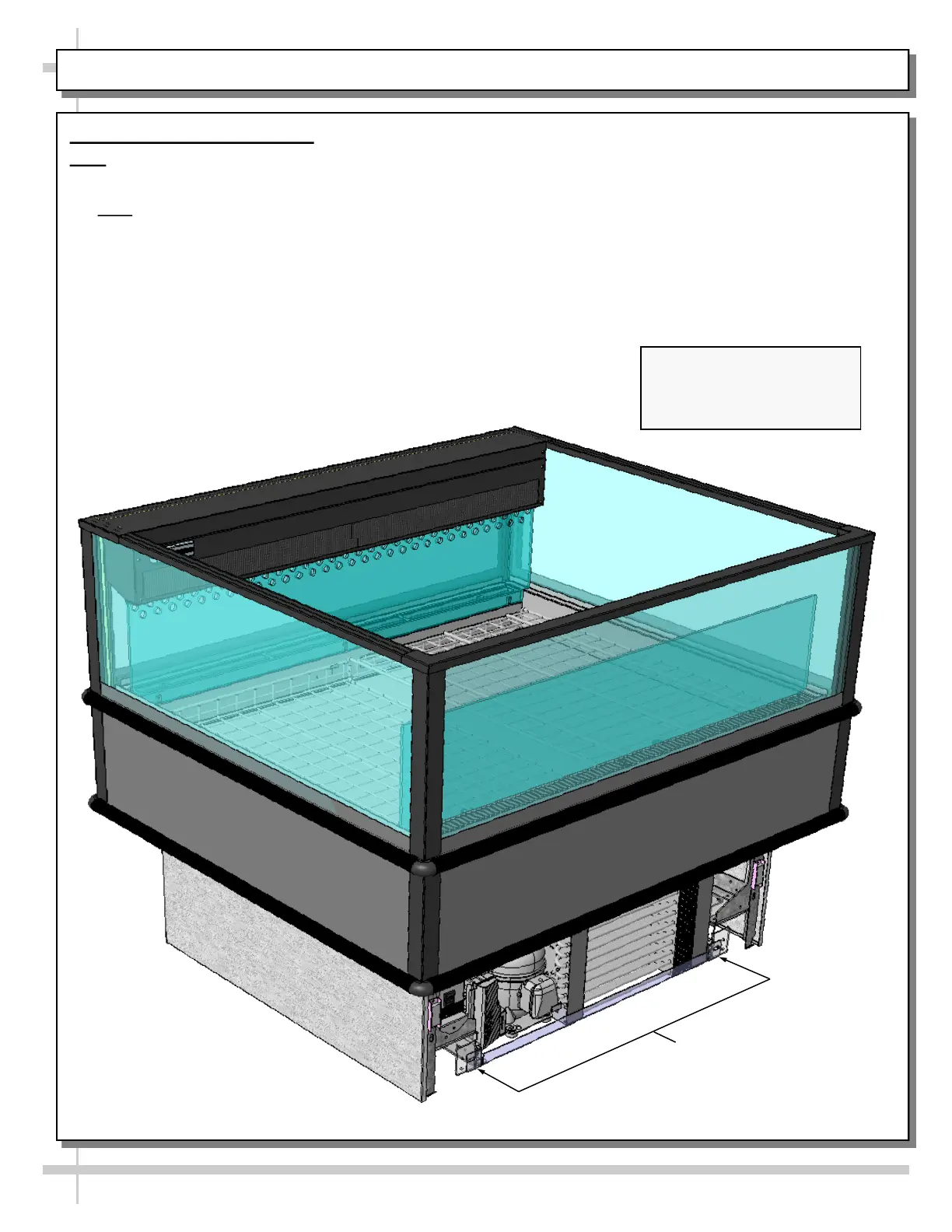

See the following two (2) pages in this manual for condenser package illustrations.
Compressor Pan
Shipment Screw
(one at each side)
