CASTER LOCKING AND EXTERIOR PANEL ATTACHMENT (AFTER REMOVAL FROM SKID)
6
To lock casters (from the unlocked position), press
down on each RAISED caster lever (as shown in
illustration below). Casters are now locked.
To unlock casters (from the locked position), press
down on the RAISED caster lever (as shown in
illustration below). Casters are now unlocked.
See sample caster design at right.
Attach to case after case has been removed and
properly positioned/located in store.

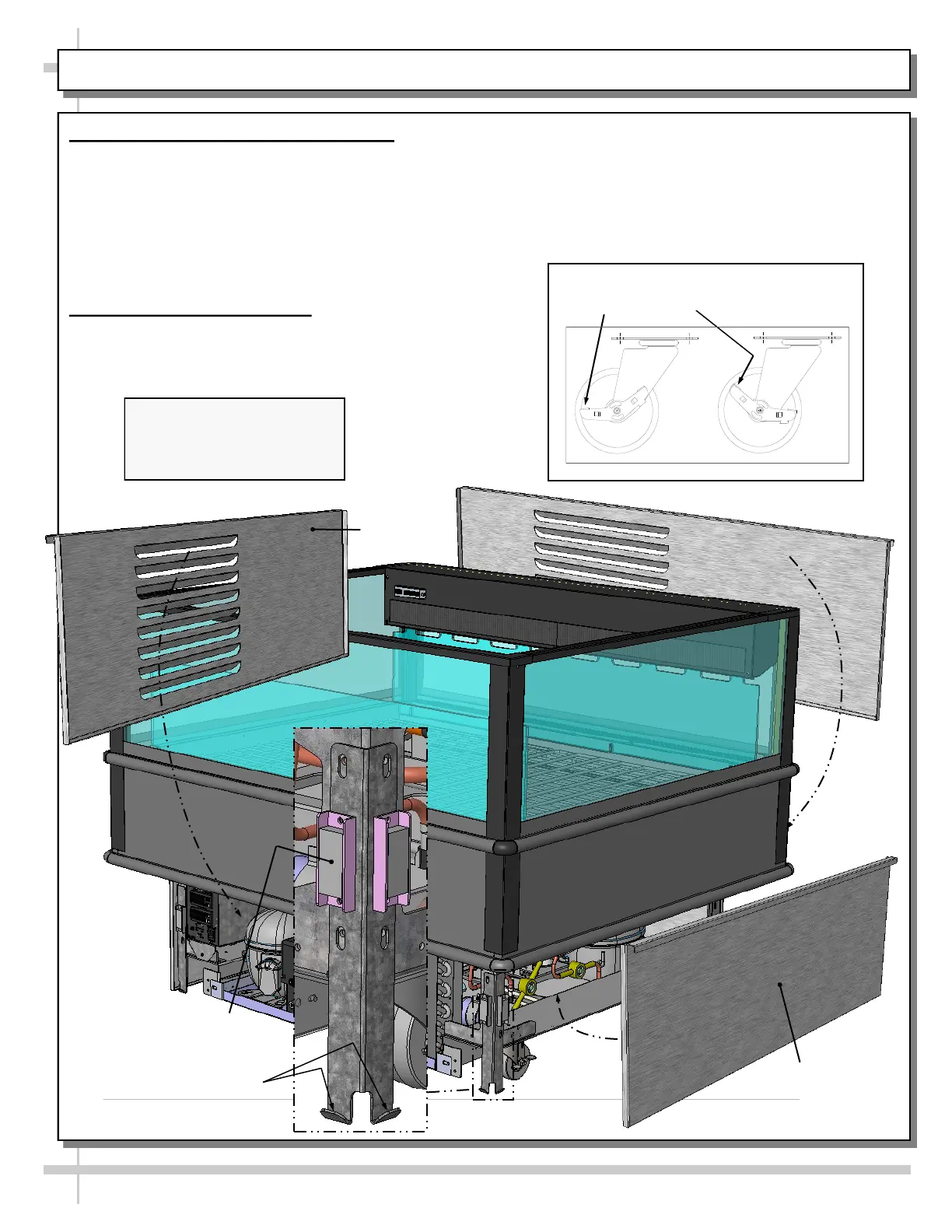

Rear Intake
Panel
Magnet
(Typ.)
Front Air
Intake Panel
Hook (Typ.) Side
Panel (Typ.)
Casters
Unlocked
Casters
Locked
--- Sample Caster Design ---
All exterior panels may be removed without
tools.
Lift exterior panel up and off tabs.
Separate lower panel from magnets
See illustrations below.
Note: Illustration Shown May
Not Exactly Reflect Every
Feature Or Option Of Your
Particular Model.
