MAINTENANCE AND OPERATION, CONTINUED
5. Removing and Replacing Toe-Kicks Panels
 Front and rear kicks be removed first and
installed last when performing maintenance.
6. Removing Front Toe-Kick
Remove the two screws located on the upper
front of the toe-kick at both ends.
7. Removing rear Toe-Kick
Remove four screws at both ends of the grille.
8. Removing Side Toe-Kicks
Note: Side toe kicks are captive by the rear kick
panel in the back of the unit.
 Remove screws to the rear toe-kick.
 Remove front kick panel.
 Remove screws at front of side toe-kicks.

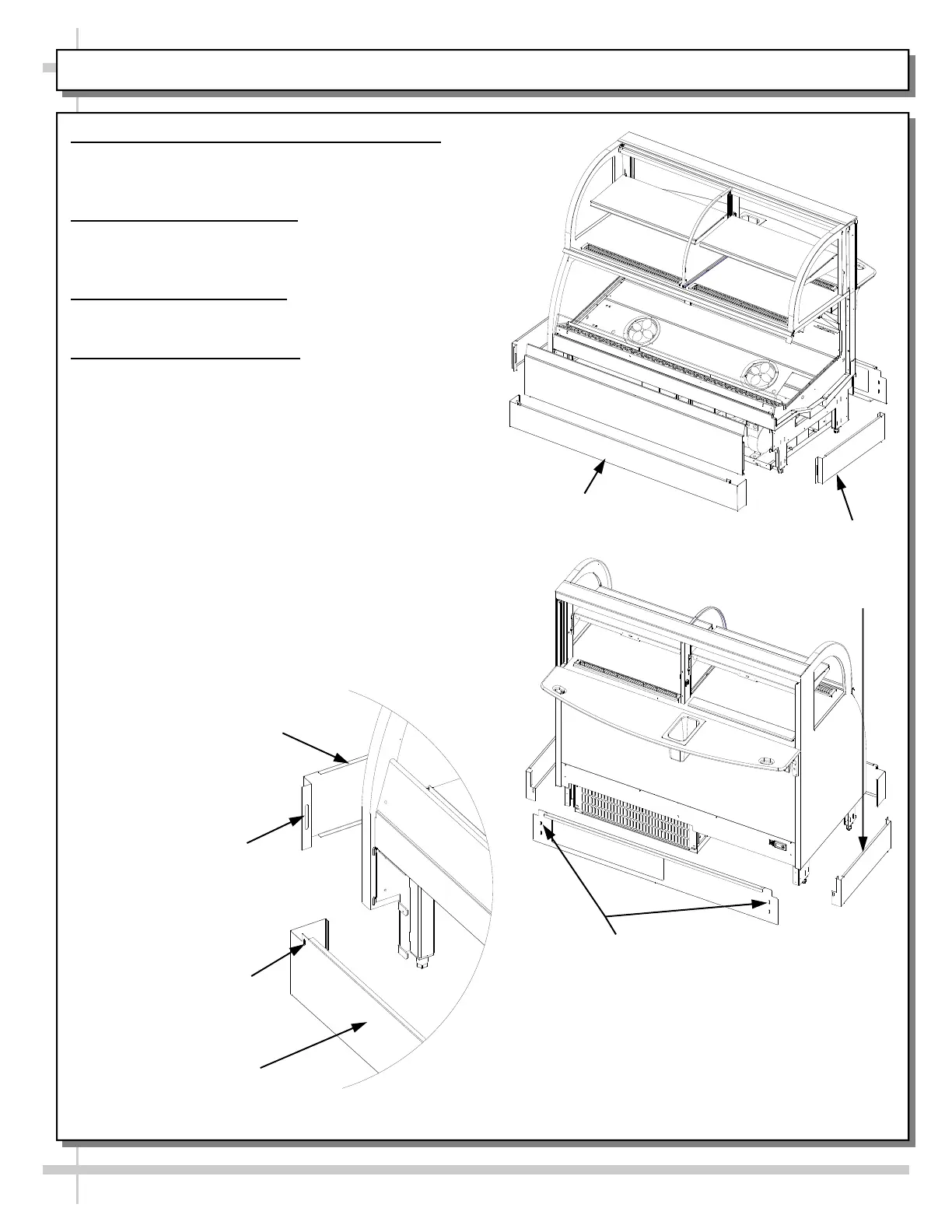

Front Kick Panel
Rear Kick Panel
Support Screws
Front Kick Panel
Front Kick Support
Screw Location
Side Kick Panel
Screw Location
Side Kick Panel
Side Kick
Panels
