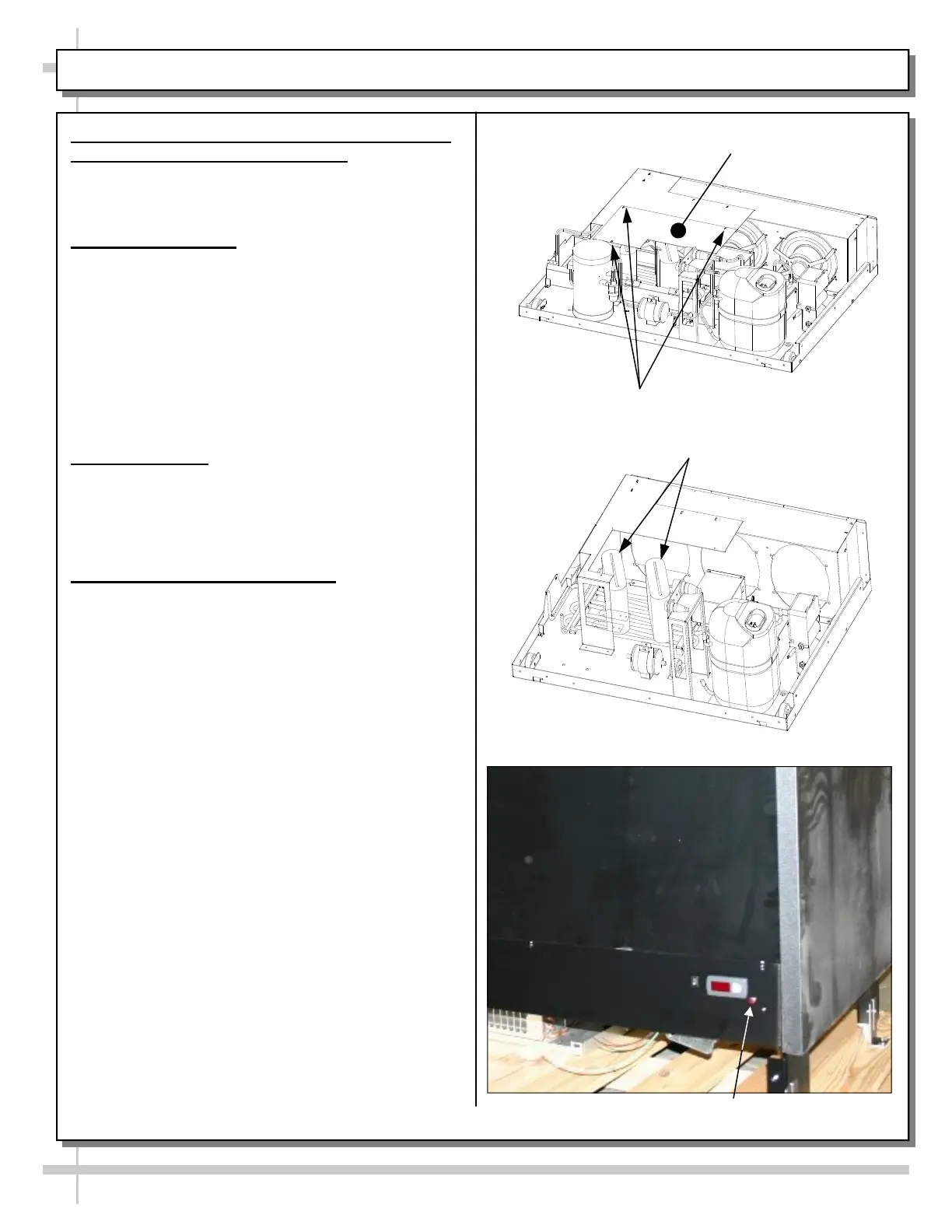

HOT GAS CONDENSATE EVAPORATION SYSTEM
15
Hot Gas Condensate: Unit is provided with Hot
Gas Condensate Removal System
Warning! Disconnect power before providing
maintenance and service to unit.
1. System Operation
This system utilizes a hot gas serpentine coil
that is routed through a condensate reservoir
allowing water to be heated, in conjunction with
a Wicking material that is partially submersed
with warm condenser air passing through it for
evaporation.
The system also incorporates an overflow
reservoir with heating element to ensure
complete condensate removal.
2. Indicator Light
Hot gas condensate removal system is also
equipped with an Indicator Light (red) for
Wicking Material replacement, accessible at
rear of case. See picture below.
3. Wicking Material Replacement
Pull condensing system out from under unit.
Remove wicking material cover from top of
condensing system by removing attaching
screws. (see Illustration above top-right)
To obtain replacement Wicking Material go to
www.filters-now.com at (877) 991-0400 and
order filter ‘UFK01’ or call Structural Concepts
Corporation Technical Service at
1-(800)-433-9489 and order part # 83328.
Indicator Light
Attaching screws
Wicking Material
Wicking Material Cover
