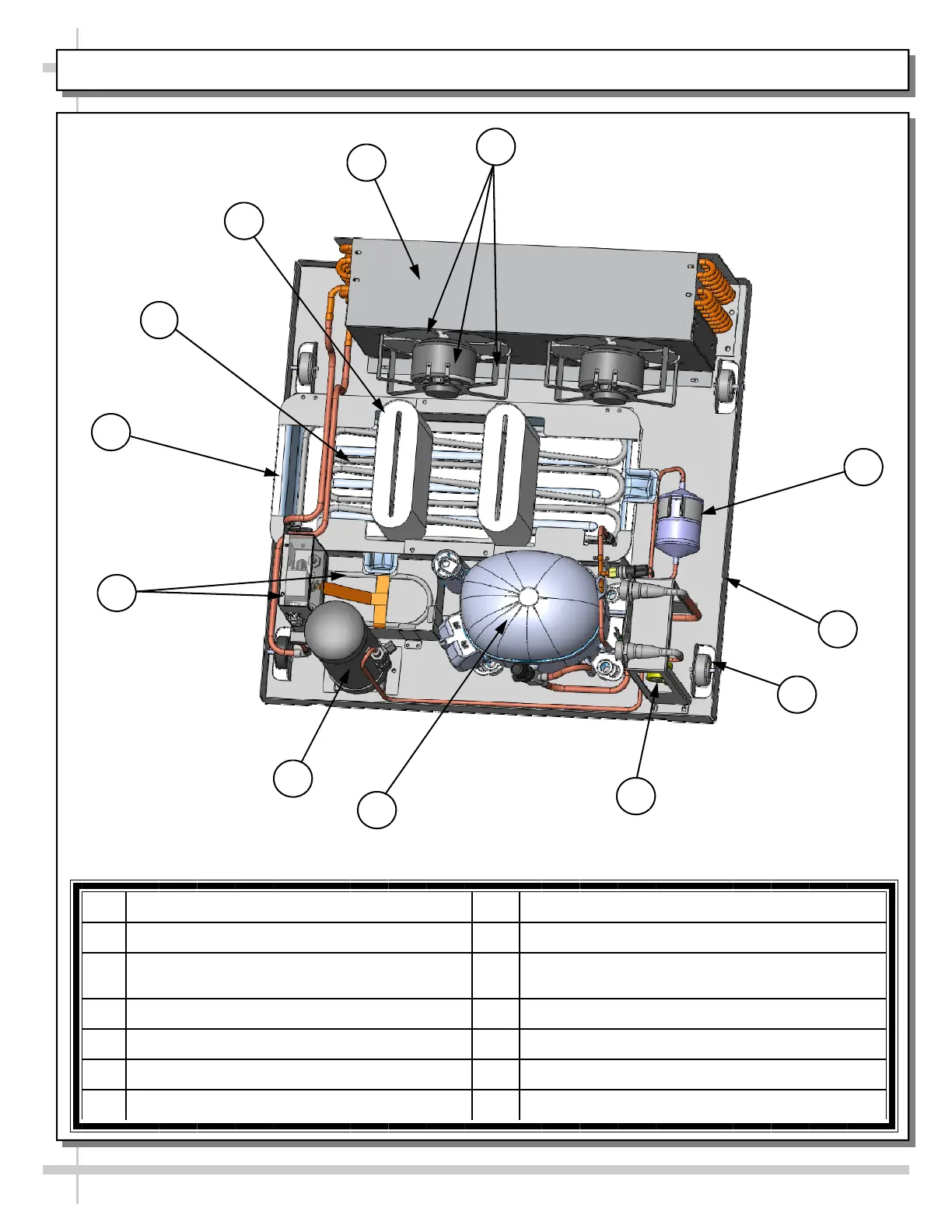

ILLUSTRATED PARTS BREAKDOWN / PARTS LIST FOR MODEL SB5735 CONDENSER PACKAGE
11
12
9
5
7
8
6
4
3
2
10
1
1 Embraco® Hermetic Compressor 8 Fan, Fan Shroud, Fan Blades
2 Receiver 9 Filter Drier
3
Electrical Box - Hot Gas Overflow
10 Roll Out Pan, Condenser Unit
4 Condensate Pan 11 Caster, For Condenser Unit Pan
5 Hot Gas Loop Condensate System 12 Sight Glass
6 Evaporative Wicking Material 13
7 Condensing Coil Shroud 14
