REFRIGERATION FUNDAMENTALS
1. Refrigeration: Access, Connections & Removal
Note: Rollers are mounted to the units base to facilitate
in moving the condenser.

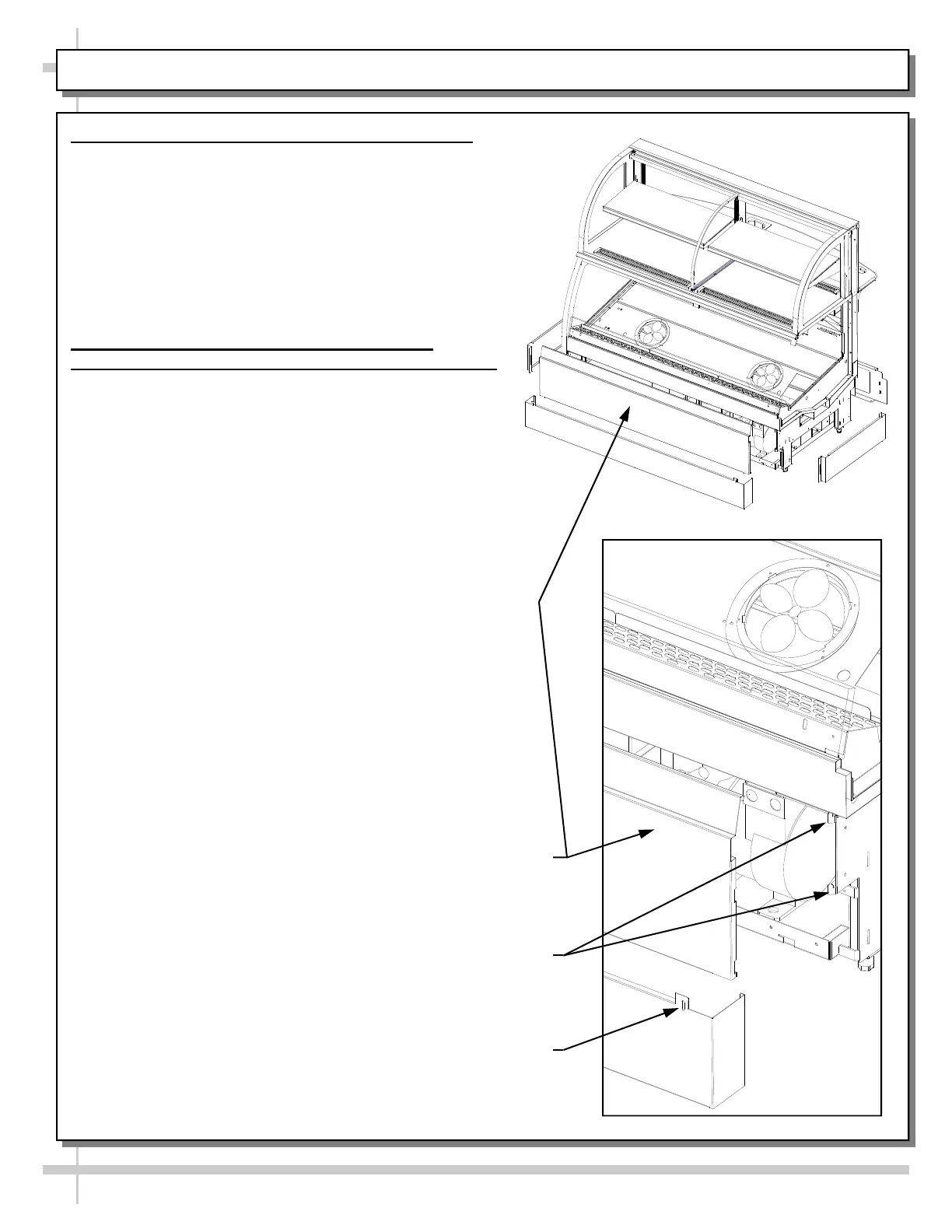

 Remove front panel. Lift panel from lower edge
upward approximately a half inch.
 Remove front toe-kick.
 Remove two screws located on the upper front of
the toe-kick at both ends.
 See Illustrated Parts Breakdown in this manual.
2. Assembly / Disassembly / Servicing To Be
Accomplished By Licensed Refrigeration Contractor
 Refrigerant lines are equipped with screw on/off
fittings to facilitate maintenance.
 The control module has quick disconnect electrical
fittings to the controller face.
 See Illustrated Parts Breakdown in this manual.
Lift straight
up; then
pull forward
Front Panel
Retainer Hooks
Front Toe-kick Screw
