LOAD LEVEL GUIDELINES [APPLICABLE TO ALL MODELS]
Load Level Guidelines
Caution! Do Not Block Airflow! If airflow is blocked by product, product temperatures will vary and
possibly reach unsafe levels.

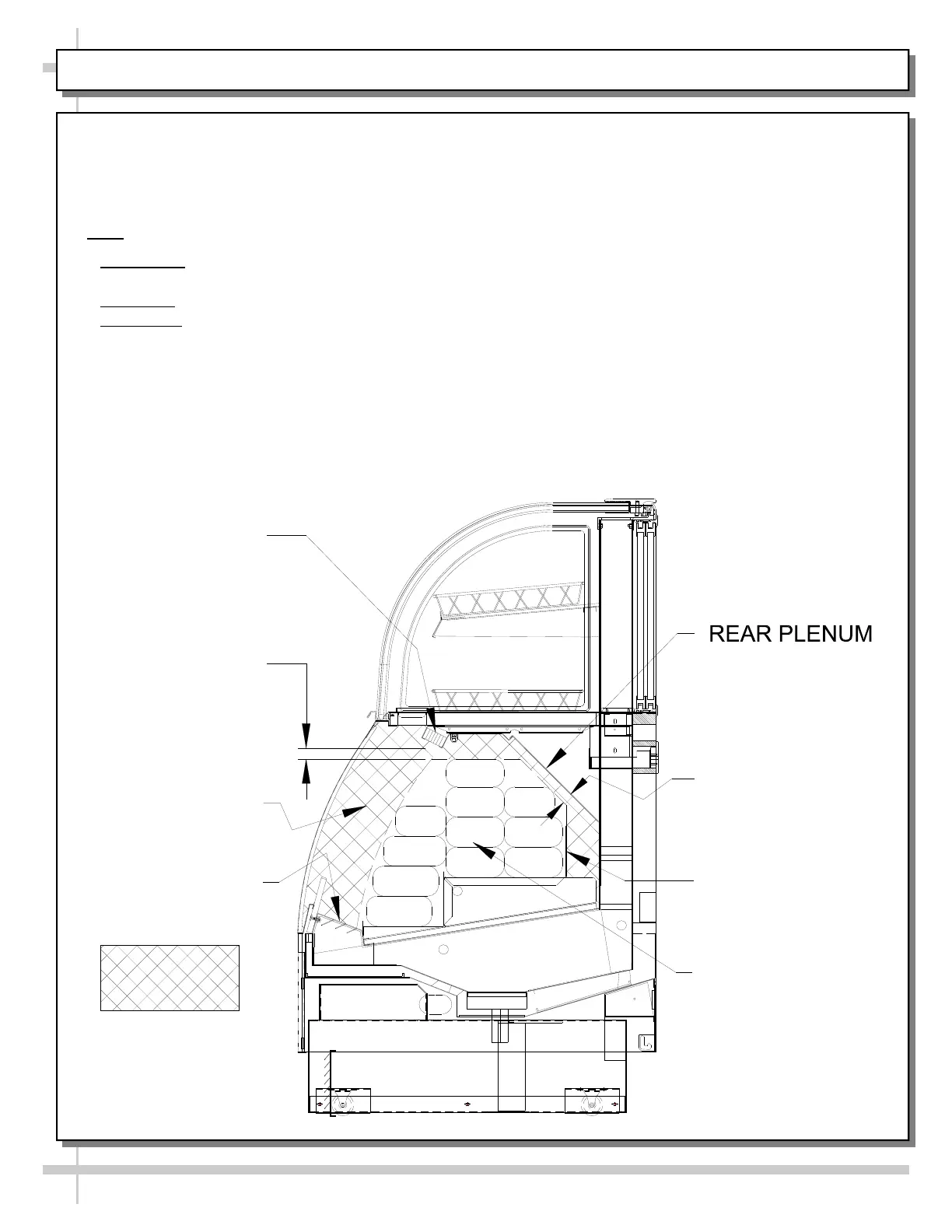

> Illustration below displays product placement allowing proper air flow.
> Note
: Illustration below may not reflect every feature or option of your case.
Case Front: The dashed line in illustration below, reflects an “invisible curtain” of airflow from the
“Honeycomb” Air Diffuser to the Return Air Grille. This area must not be blocked.
Case Top: Product must be kept at least 1” below “Honeycomb” Air Diffuser.
Case Rear: Do not allow the product to press up against the Rear Plenum. Keep at least 1” distance
between product and Rear Plenum.
AIRFLOW AREA.
DO NOT BLOCK.
HATCH PATTERN
REPRESENTS
AIR FLOW.
DO NOT BLOCK.
PRODUCT MUST
BE STACKED
AT LEAST 1"
BELOW
HONEYCOMB
PRODUCT MUST
BE AT LEAST
1" FROM
REAR PLENUM
PRODUCT STOP
PRODUCT
RETURN
AIR GRILLE
HONEYCOMB
AIR DIFFUSER
