Stryker 1020 - Foot Board

110

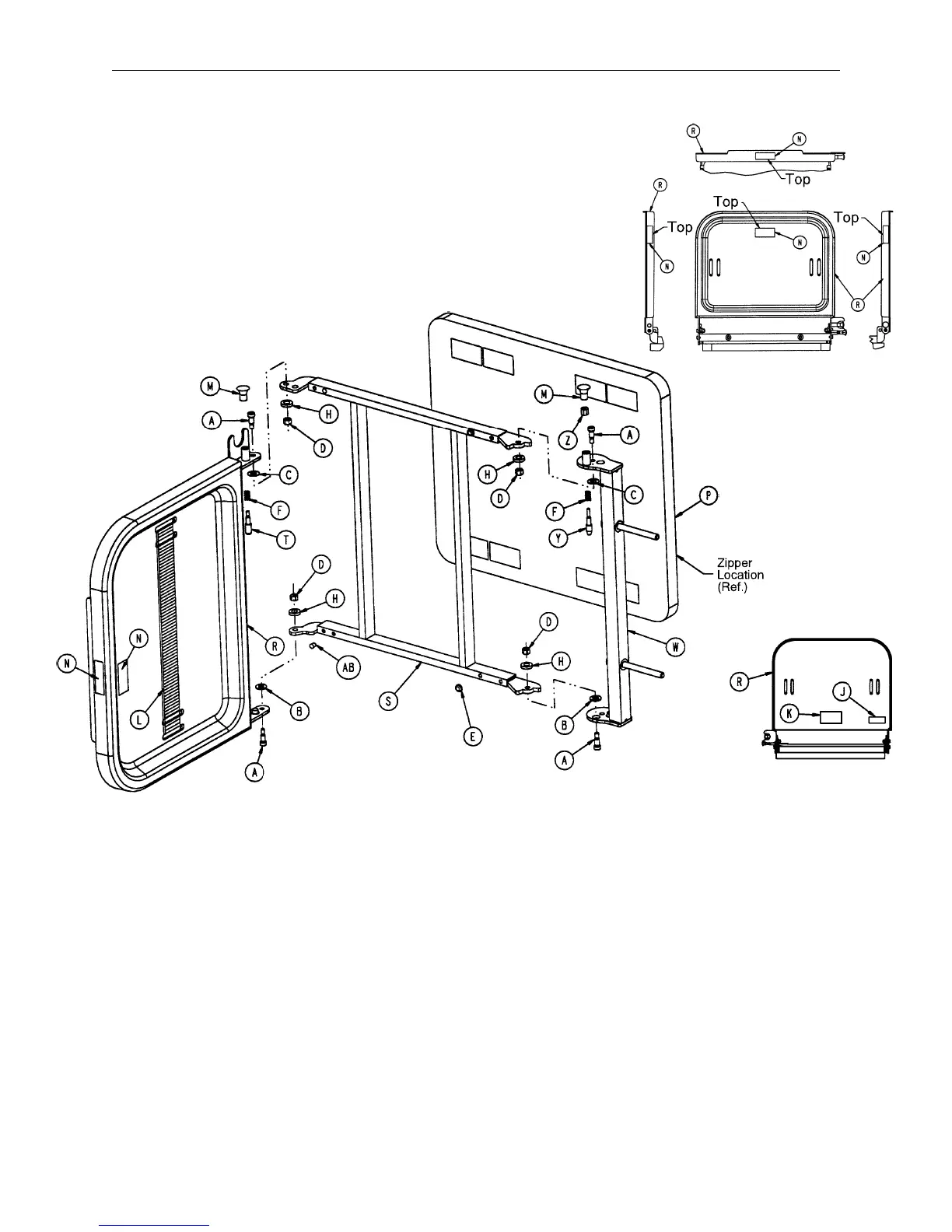

1010−050−100 Foot Extension/Defibrillator Tray Ass’y
Assembly part number 1010−050−210 (reference only)
Label Detail
Label Detail
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 0008−049−000 Soc. Hd. Shoulder Bolt 4 M 1010−050−050 Knob 2
B 0014−020−000 Nylon Washer 2 N 1010−050−057 “Max. Weight” Label 4
C 0014−021−000 Nylon Washer 2 P 1010−050−205 Cushion Assembly 1
D 0016−028−000 Fiberlock Nut 4 R 1010−050−218 Foot & Tray Board 1
E 0037−052−000 Rubber Bumper 2 S 1010−050−225 Pivot Frame Weldment 1
F 0038−133−000 Spring 2 T 1010−050−242 Pin Lock 1
H 0052−017−000 Spacer 4 W 1010−050−246 Base Mounting Ass’y1
J 1010−050−017 Specification Label 1 Y 1010−050−248 Lower Pin Lock 1
K 1010−050−019 “Push/Pull” Label 1 Z 1010−050−250 Pin Adjuster 1
L 1010−050−021 Long Strap 1 AB 0721−031−065 Hole Plug 2
